U.S. 17

Home » Guides » Georgia » U.S. 17

U.S. 17 runs through coastal southeast Georgia and the Golden Isles region through Brunswick and Savannah. Co-signed with Georgia State Route 25 north from the Florida state line to Savannah, U.S. 17 generally serves local traffic as it parallels I-95.

U.S. 17 Georgia Guides

U.S. 17 stays west of I-95 from Kingsland to Woodbine before looping east to Brunswick. North through Darien, the route doubled as Business Loop I-95 originally, but that route is no longer marked. Shifting west of Interstate 95 again, U.S. 17 heads to Midway, connecting with U.S. 84 to Hinesville. U.S. 17 and I-95 converge again at Richmond Hill in Bryan County.

Through Savannah U.S. 17 follows Ogeechee Road from the south side suburbs to Interstate 516 and U.S. 80 (W.F. Lynes Parkway). The route was relocated to use I-516 as part of a bypass around Savannah by the American Association of State Highway and Transportation Officials (AASHTO) on December 7, 1984. The change also affected U.S. 17 Alternate, which was realigned over SR 25 Alternate to I-516.

Sidney Lanier Bridge

Supported by twin 480 feet towers, the Sidney Lanier Bridge carrying U.S. 17 over the Brunswick River is Georgia's tallest span. Providing a higher vertical clearance for the nearby Port of Brunswick, the cable-stayed bridge replaced an ailing draw bridge by the same name -- Georgia state law indicated that "all bridge replacements must keep the name of the original bridge." The bridge's 1,250 foot long main span provides a 203.295 feet vertical clearance above sea level. Accommodating four overall lanes, the Sidney Lanier Bridge is 7,780 feet in length. The bridge deck is 73 feet 9 inches wide, with 12 foot travel lanes, eight foot outside shoulders and two foot inside shoulders.1

The Sidney Lanier Bridge rises across the Brunswick River north from SR 520 (Jekyll Island Causeway) and wetland areas in Jekyll Island State Park into the city of Brunswick. Located on the west side of U.S. 17, a portion of the old Sidney Lanier Bridge was retained as a pier. The East River and Turtle Rivers combine as the Brunswick River below the cable-stayed bridge east of Brandy Point. The Brunswick River flows eastward from the Sidney Lanier Bridge into St. Simons Sound and the Atlantic Ocean. 09/16/21

The previous Sidney Lanier Bridge across the Brunswick River was 139 feet high and 250 feet wide. Opened in 1956, the vertical lift bridge was mired with problems. These included mechanical failure, resulting in routine closures and lengthy detours for Brunswick bound traffic. Delays were frequent during shrimping season, with dozens of bridge lifts per day accommodating shrimping vessels, pleasure boats, and other ships.2

Additionally, the original Sidney Lanier Bridge was the site of a catastrophic boating accident in 1972 when the African Neptune struck the bridge. With several of the bridge segments compromised, the incident resulted in 10 deaths. Another major collision took place on May 3, 1987 when the Polish freighter Zeimia Bialostocka collided with a support tower. The Sidney Lanier Bridge was subsequently closed for repairs over a several month period.2

The former lift bridge remained in operation until March 23, 2003, when it closed to make way for the final construction work on the new cable-stayed bridge nearby.2 Demolition of the old span cost $21 million.3.

Eugene Talmadge Bridge

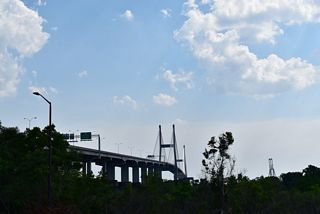

Eugene Talmadge Bridge from Hutchinson Island

U.S. 17 spans the Savannah River between Savannah and Hutchinson Island along the Eugene Talmadge Bridge. The second of two cable-stayed bridges, the Talmadge Bridge provides a high speed route from Interstate 16 and Downtown Savannah to Hutchinson Island and Jasper County, South Carolina.

Originally a two-lane cantilever bridge spanned the Savannah River between Savannah and Hutchinson Island. The bridge was also named after Eugene Talmadge, Governor of Georgia from 1933 to 1937 and again from 1941 to 1943. It opened to traffic in September 1954 after 18 months of construction at a cost of $12.5 million. Tolls collected by the Coastal Highway District until October 13, 1975 paid for the 136 foot high bridge. That bridge fee mandated that the U.S. 17 mainline remain northwest of the city to Port Wentworth and the toll-free Houlihan Bridge.6 U.S. 17 eventually was realigned to cross the Talmadge Bridge in 1988. It replaced U.S. 17 Alternate.

With the need to accommodate larger vessels at the Port of Savannah, the prospect of replacing the original Talmadge Bridge grew in importance as commerce increased. Safety concerns also arose as incidents involving large ships colliding with the cantilever span occurred in July of 1983 and again in November of 1990.

The Georgia Department of Transportation (GDOT) sponsored bridge replacement studies in 1981 and by 1987 the first bids were let the new span. Construction commenced in 1988, and the new Talmadge Bridge opened to traffic in March of 1991 at a cost of $70.9 million.6

The Eugene Talmadge Bridge spans the Savannah River at a height of 185 feet above high tide with a horizontal clearance of 1,023 feet. The original bridge was supported by piers anchored in the Savannah River; the towers for the cable-stayed bridge are located on land.6

U.S. 17 scenes

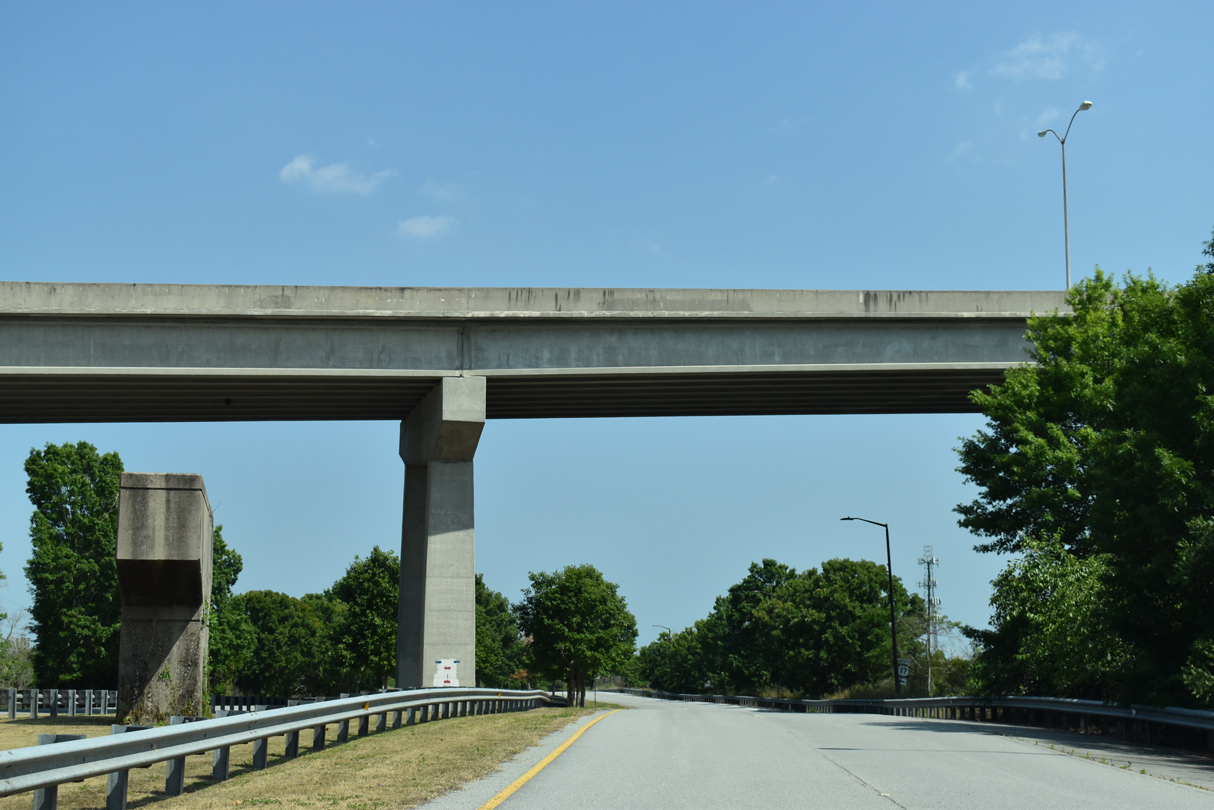

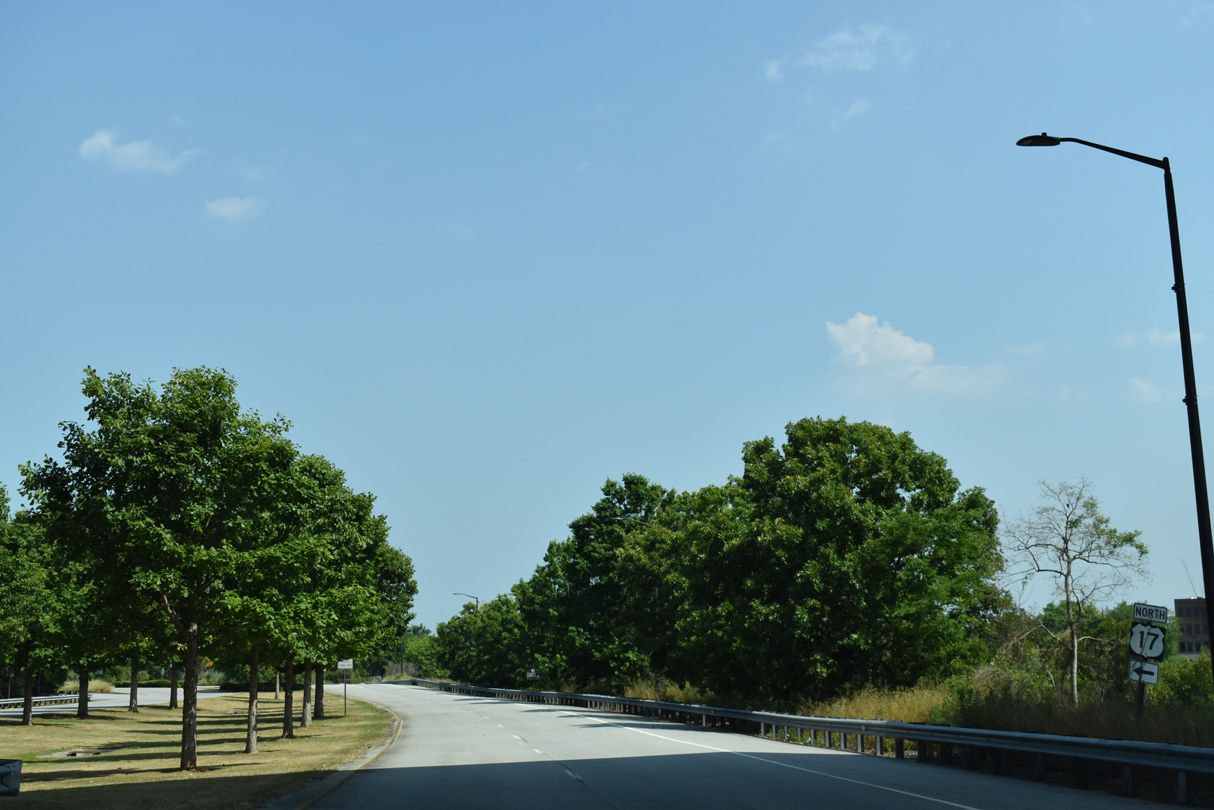

Savannah Harbor Parkway arcs connects U.S. 17/SR 404SP south with Wayne Shackelford Boulevard beyond the Talmadge Bridge. 05/26/19

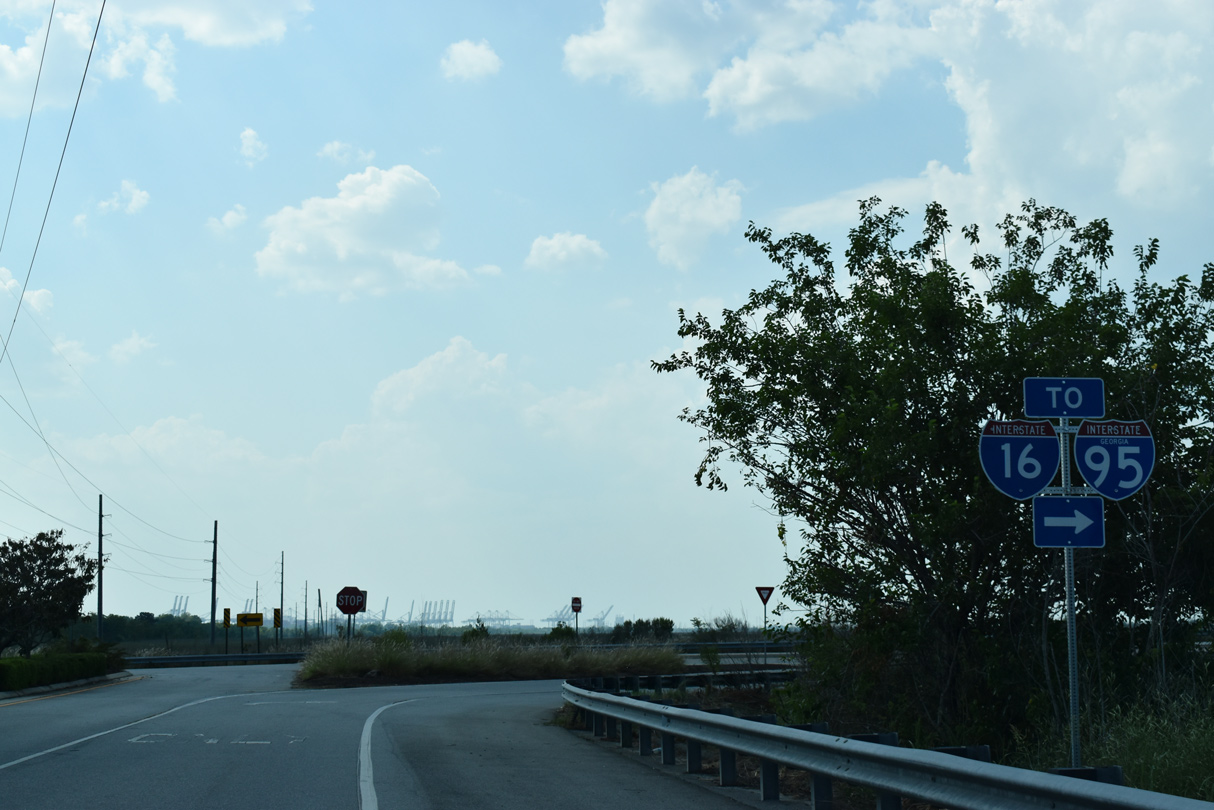

Savannah Harbor Parkway south intersects Wayne Shackelford Boulevard at the entrance ramp for U.S. 17 north to Hardeeville, South Carolina. 05/26/19
Wayne Shackelford Boulevard north at Savannah Harbor Parkway and the folded diamond interchange with U.S. 17/SR 404SP at the Talmadge Bridge. 05/26/19

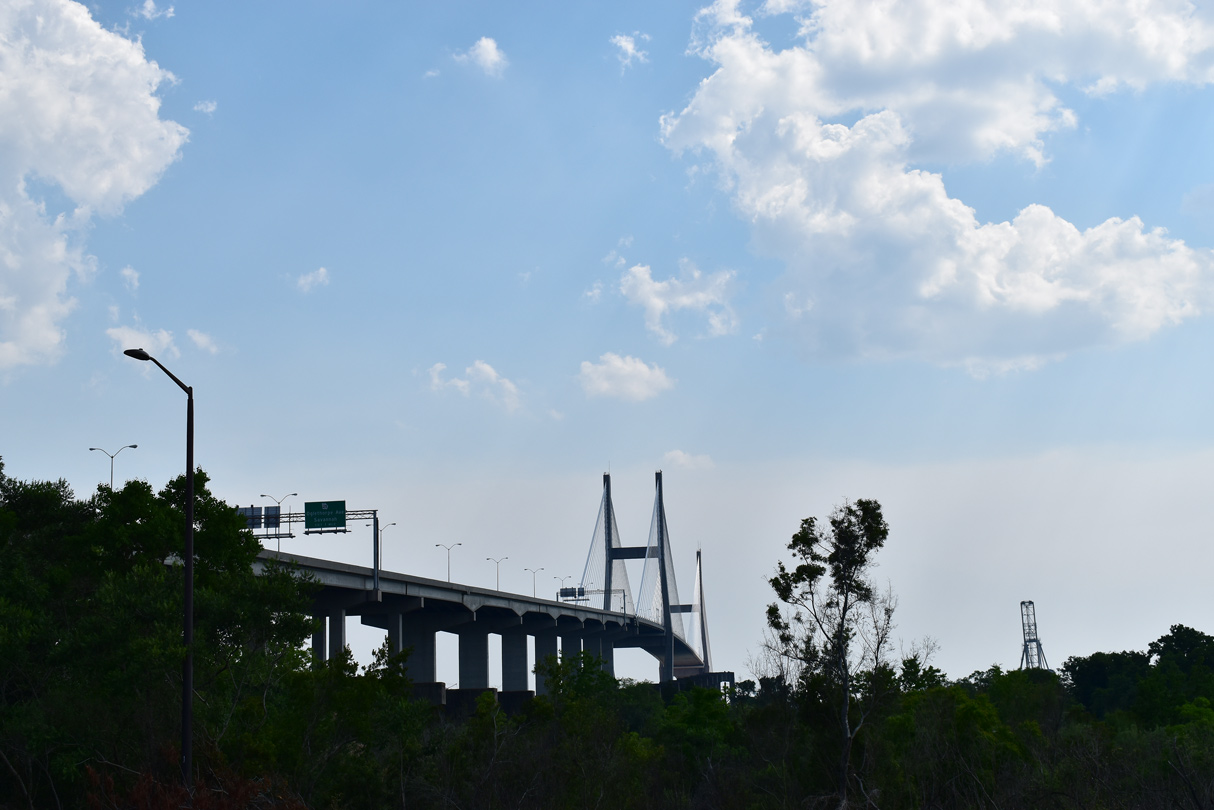

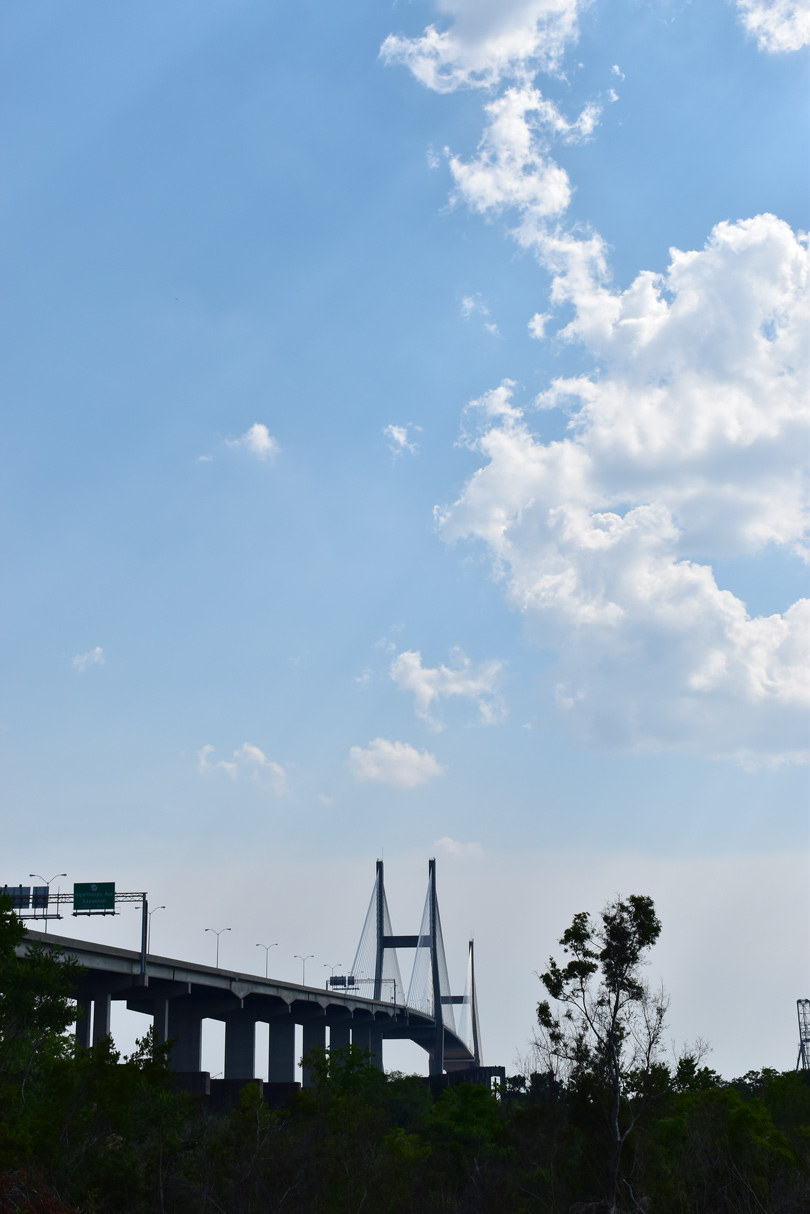

Looking southward at the Eugene Talmadge Memorial Bridge from Savannah Harbor Parkway on Hutchinson Island. 05/26/19

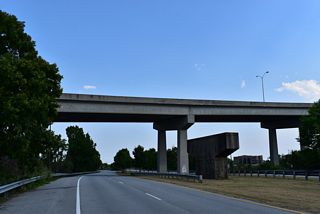

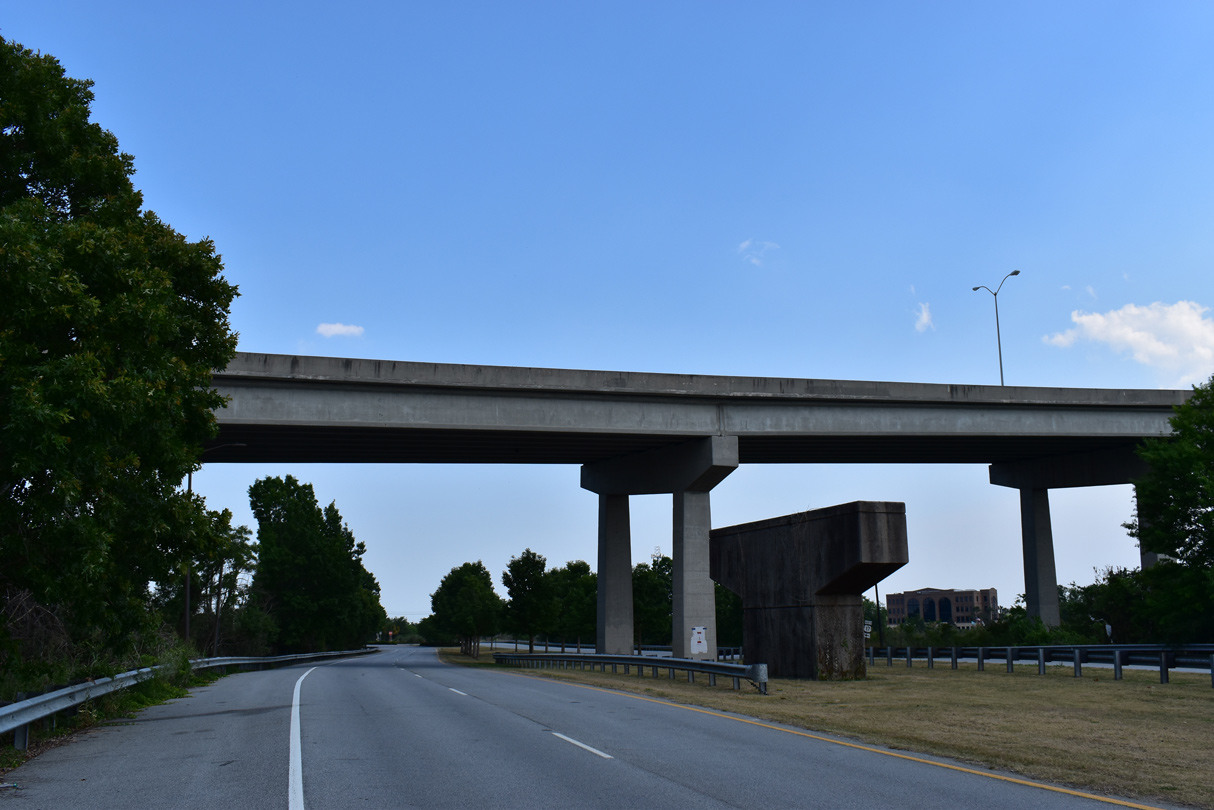

Pier supports from the old Talmadge Bridge remain standing along the west side of the cabled-stayed bridge. The replacement span is 49 feet higher than its predecessor. 05/26/19
A loop ramp joins U.S. 17/SR 404SP south across the Eugene Talmadge Memorial Bridge from Savannah Harbor Parkway and Hutchinson Island Road. U.S. 17 leads directly to I-16 west ahead of I-516. 05/26/19

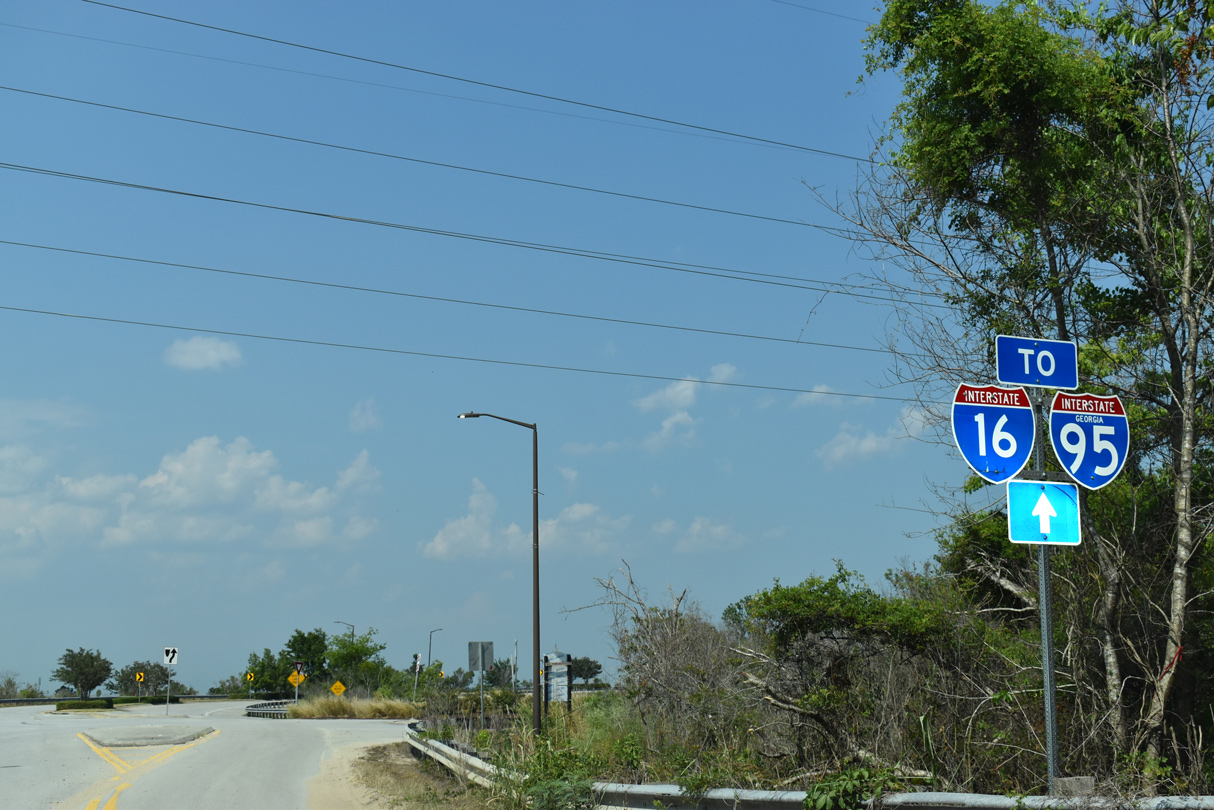

Hutchinson Island Road connects with Savannah Harbor Parkway at the north end of the Eugene Talmadge Memorial Bridge (U.S. 17/SR 404SP) in Savannah. 05/26/19
