Interstate 238 California

Overview

Interstate 238 is a short connector between I-880 and I-580 in the East Bay Area of San Francisco Bay. Signed as a north/south route in conjunction with California State Route 238, the freeway portion travels from west to east. The cardinal directions allude to the original Mission Freeway plans, which called for SR 238 to continue southeast as a bypass of Hayward, then extend to Interstate 680 just southwest of the Sunol Grade.

Interstate 238 provides part of a truck route between I-580 at Castro Valley and the San Francisco-Oakland Bay Bridge (I-80) in conjunction with the Nimitz Freeway (I-880) through Oakland. This is due to a weight restriction along Interstate 580 (MacArthur Freeway) south of Grand Avenue in Oakland.

History

Unlike all other three-digit routes within the Interstate Highway System, I-238 has no parent route. The numbering of Interstate 238 was due to the timing of its acceptance into the system; at that time, all “branch” routes of Interstate 80 (180 through 980) were reserved for other routes. Approved by the American Association of State Highway and Transportation Officials (AASHTO) on June 20, 1983, I-238 overlaid a preexisting stretch of State Route 238 between San Leandro and Hayward. The same meeting included the renumbering of Interstate 180 across the Richmond-San Rafael Bridge as an extension of I-580. Renumbering SR 238 as I-180 however was not an option as California does not duplicate its state routes (SR 180 is assigned to a long state route through Fresno).

Route Information

North End – San Leandro, CA
South End – Hayward, CA
Mileage – 2.23
Cities – Hayward
Junctions –

Source: December 31, 2021 Interstate Route Log and Finders List

I-238 Annual Average Daily Traffic (AADT)

Location	Vehicles per day
I-580 to Exit 15	158,600
Exits 15 to 16A	157,500
Exit 16B to I-880	113,400

Source: 2017 Traffic Volumes – Caltrans Traffic Census Program

Interstate 238 was designated in 1984 as a result of California State Assembly Bill 2741, which modified the route numbering for SR 17 and Interstate 580 in the state highway system. This legislation introduced I-238 and I-980 in Oakland, provided for an extension of I-580 to Marin County, and designated SR 17 as I-880 between San Jose and Oakland. Sign changes due to AB 2741 were implemented along all affected routes by 1985.

Originally SR 238 was to continue as a freeway south from Interstate 580 through Hayward. Those plans were shelved indefinitely due to residential opposition and environmental concerns. A court decision in 2003 ended the plans for the recommended Mission Freeway along the green route, with subsequent plans calling instead for the upgrade of Mission Boulevard into an expressway, with potential interchanges at key locations. Stub ramps, since demolished, were previously located along I-680 west of Exit 15 / Washington Boulevard for the unconstructed freeway.

Photo Guides

Interstate 238

North End – San Leandro, California

North at

Sound walls separate Interstate 238 from residential areas west of the Mission Boulevard (SR 185) ramps. The freeway continues west 0.75 miles to the flyover (Exit 16 A) for Interstate 880 south. 07/11/18

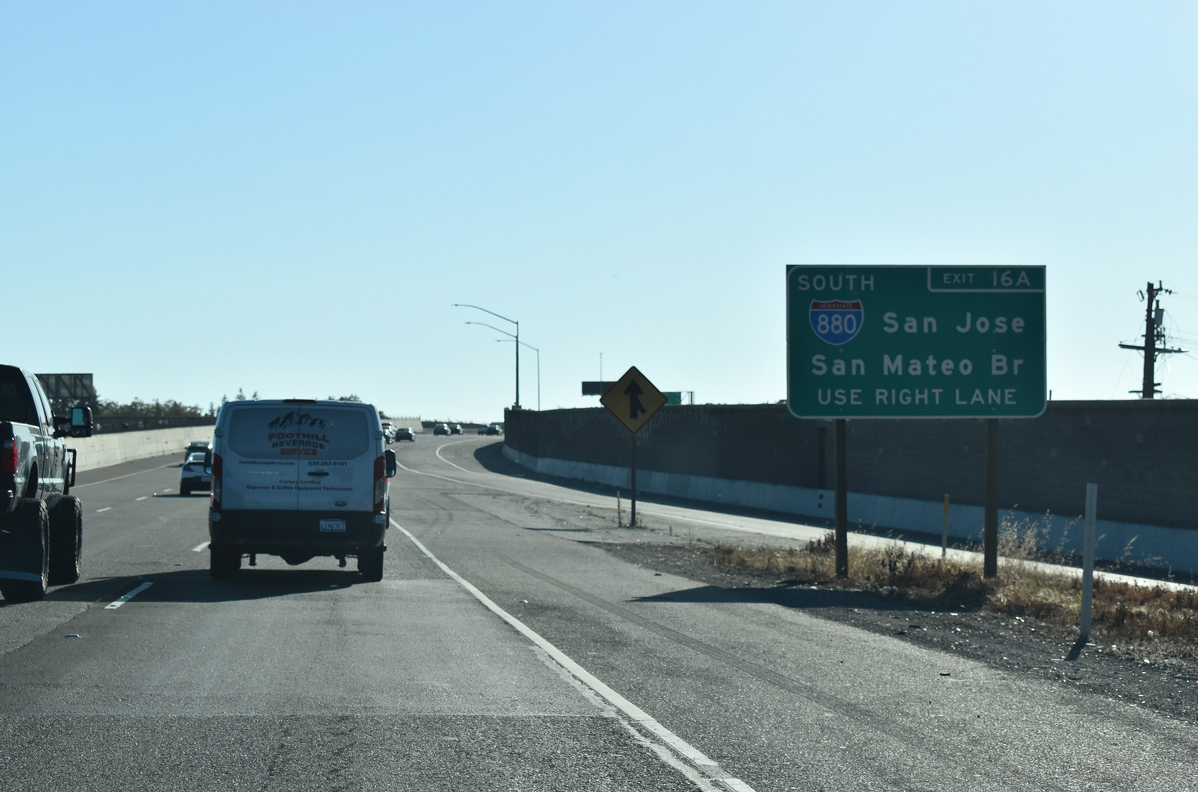

Forthcoming Exit 16 A for I-880 was expanded to two lanes by 2009. 07/11/18

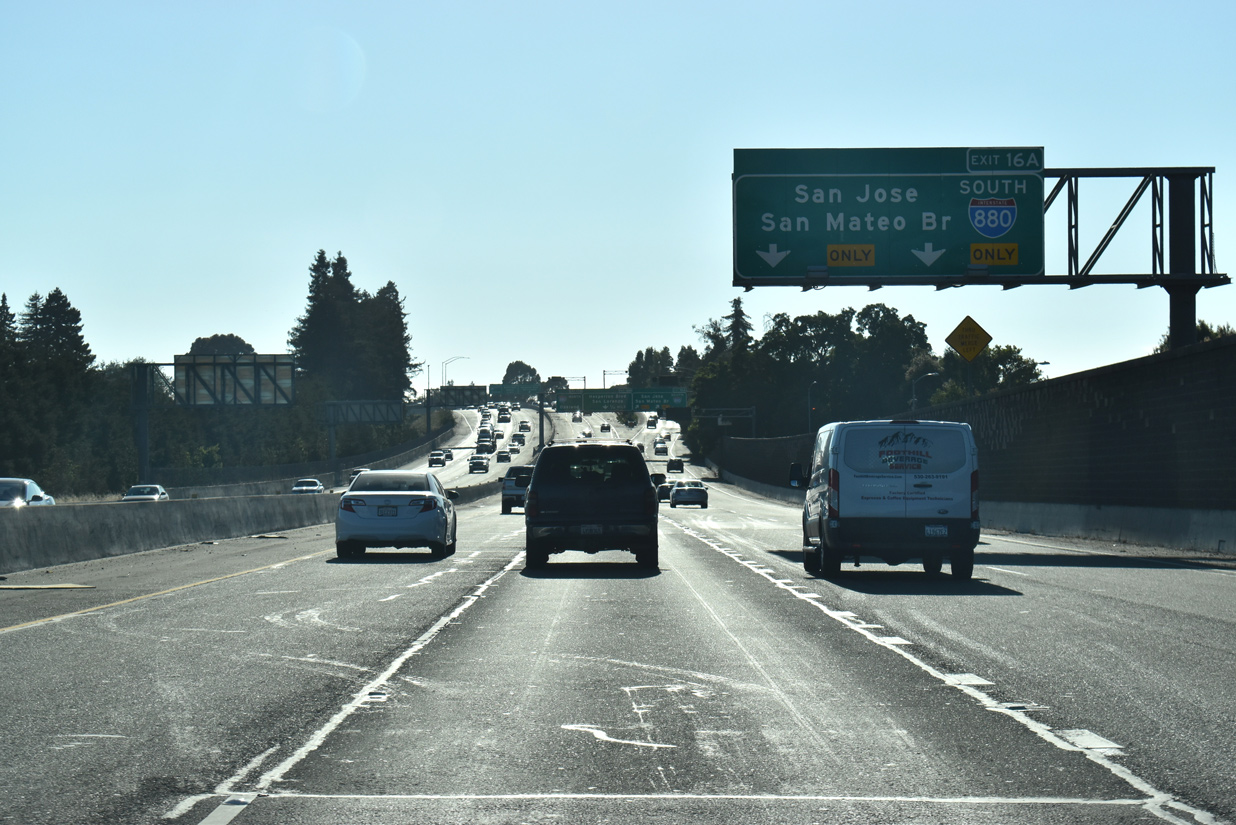

A high speed flyover (Exit 16 A) links with Interstate 880 (Nimitz Freeway) south as the remainder of I-238 north continues to I-880 north. 07/11/18

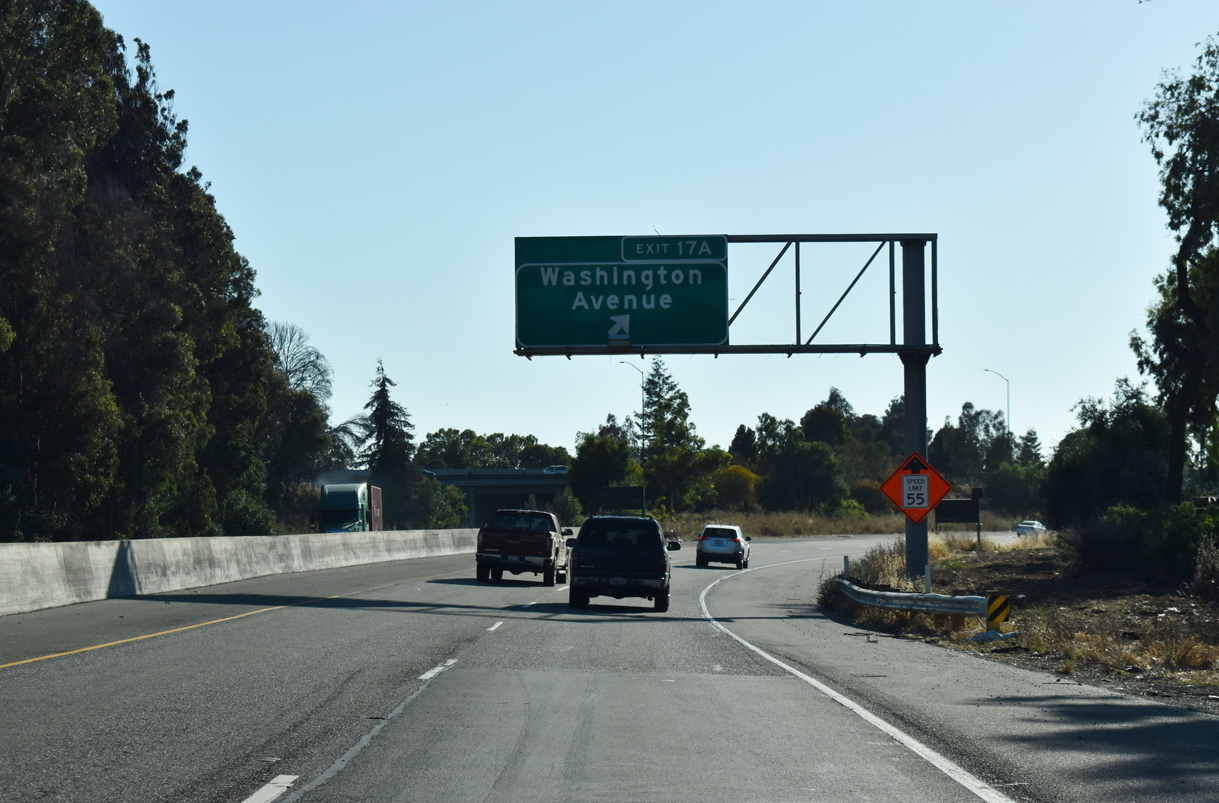

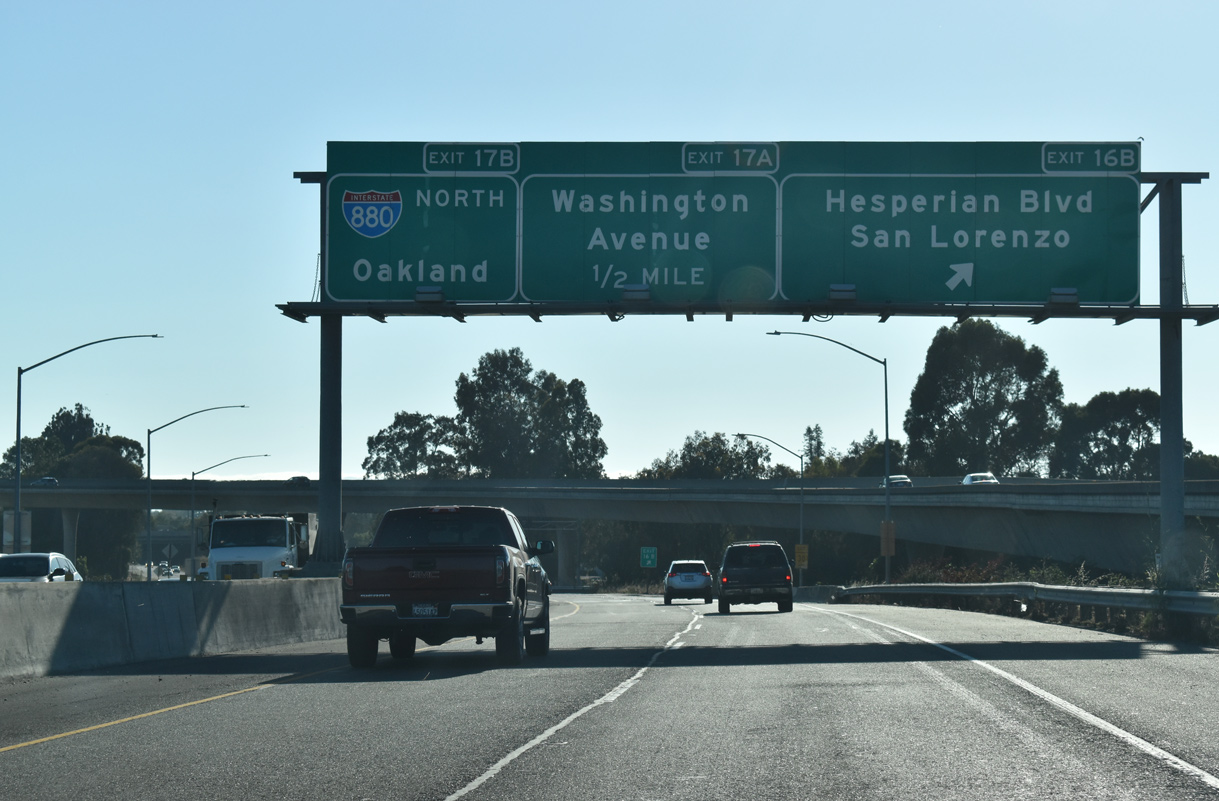

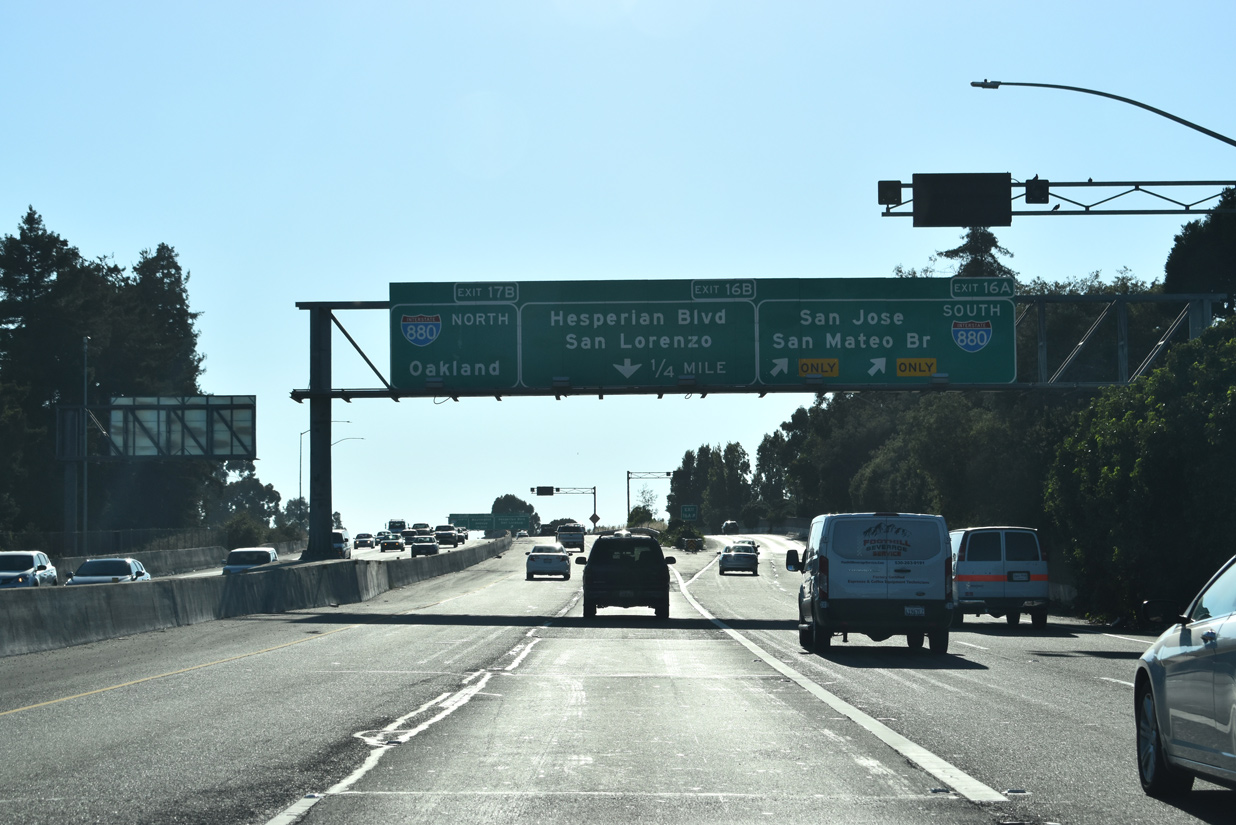

Two local exits depart from Interstate 238 north for San Lorenzo and south San Leandro prior to connection with I-880 north. 07/11/18

North at

One mile south of the full-Y interchange (Exit 31 A) with Interstate 238 south on I-880 north. 03/18/06

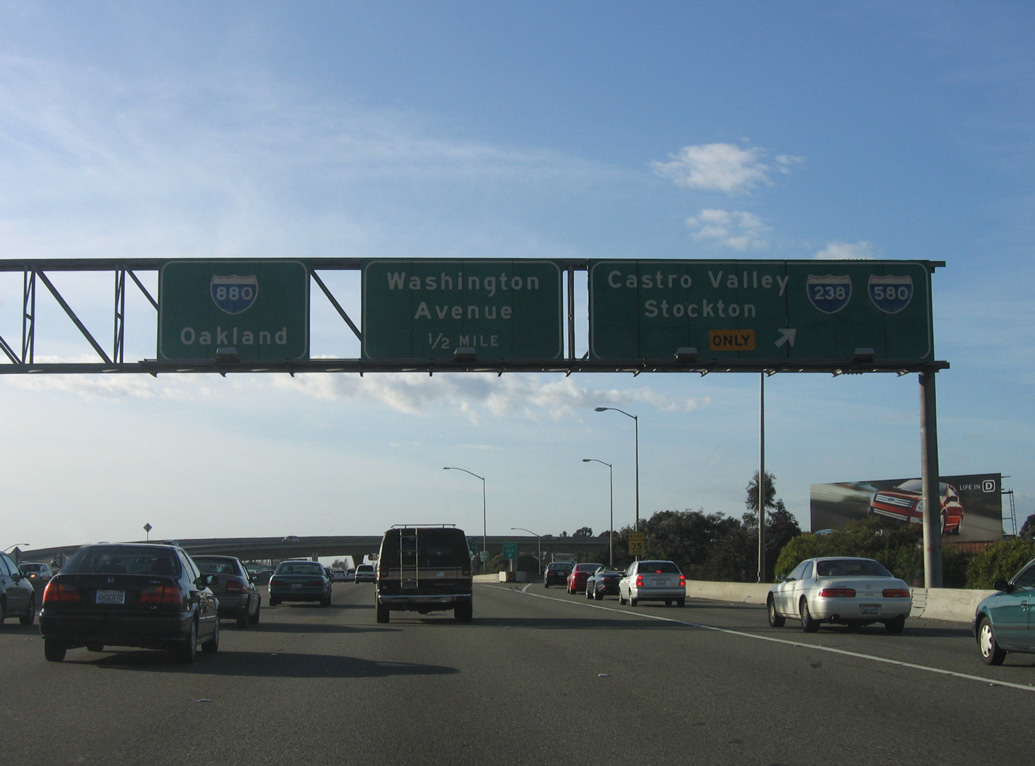

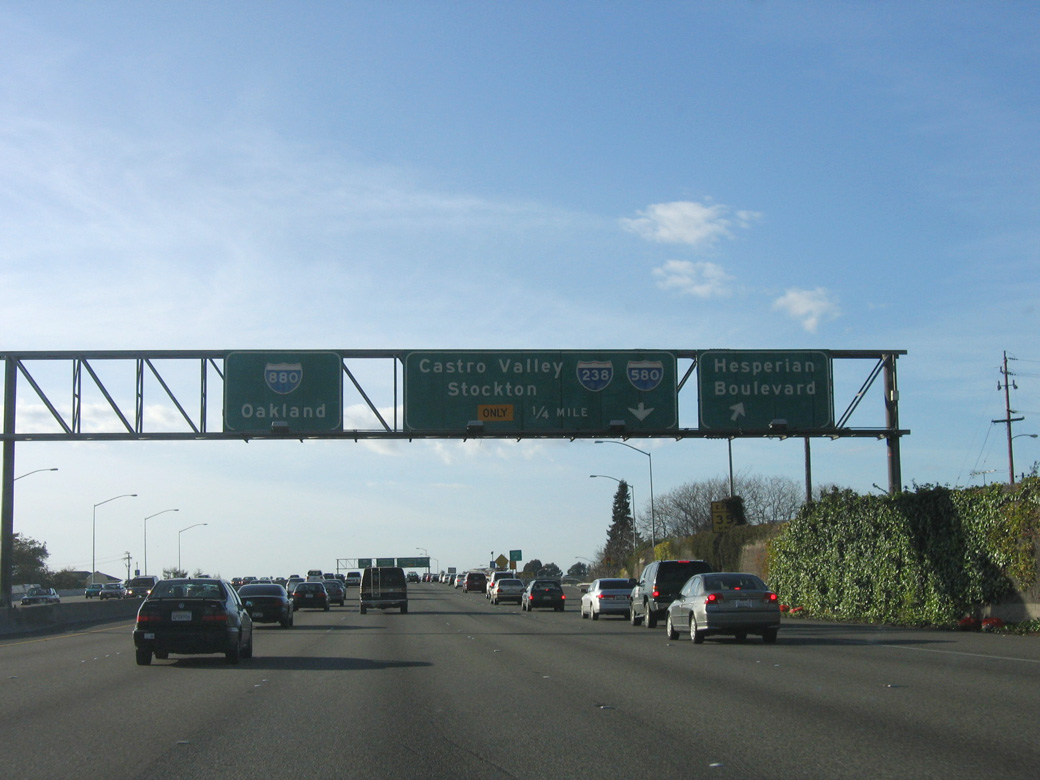

Exit 30 leaves I-880 (Nimitz Freeway) north for Hesperian Boulevard and San Lorenzo just ahead of the off-ramp for Interstate 238 south. I-238 references the I-580 south control points. 03/18/06

South at

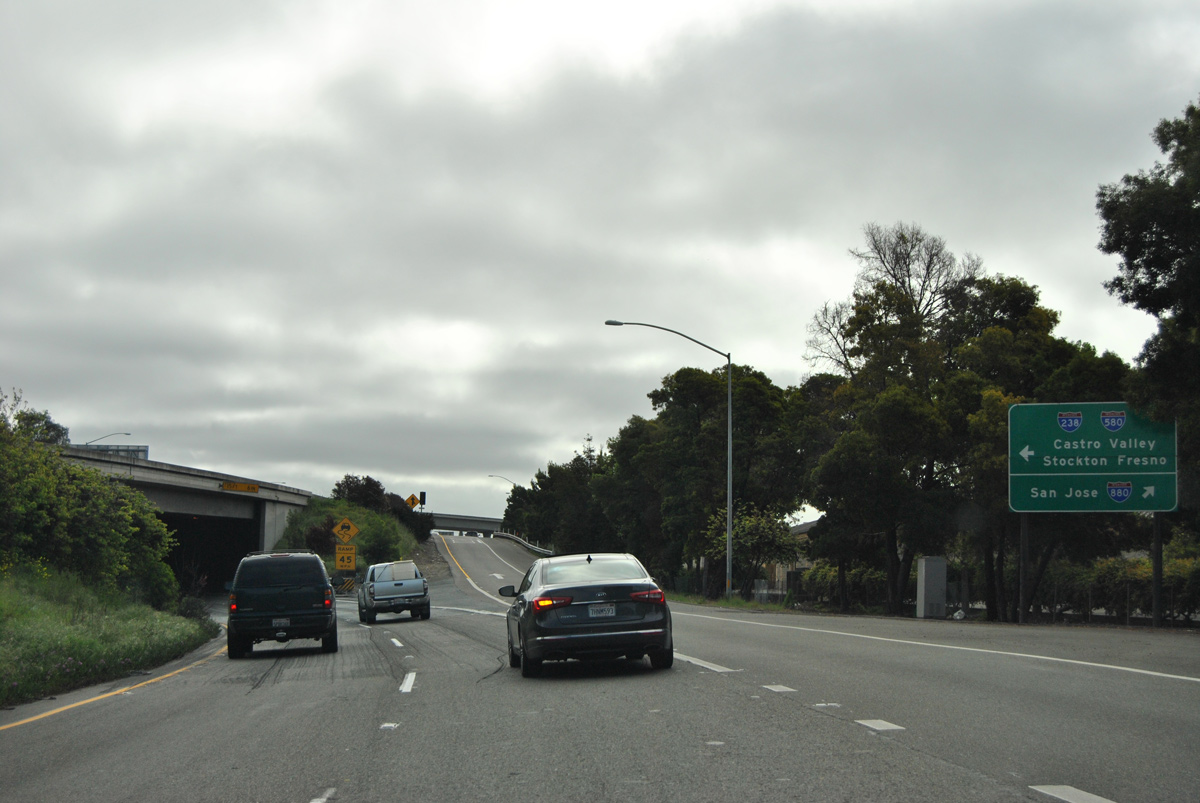

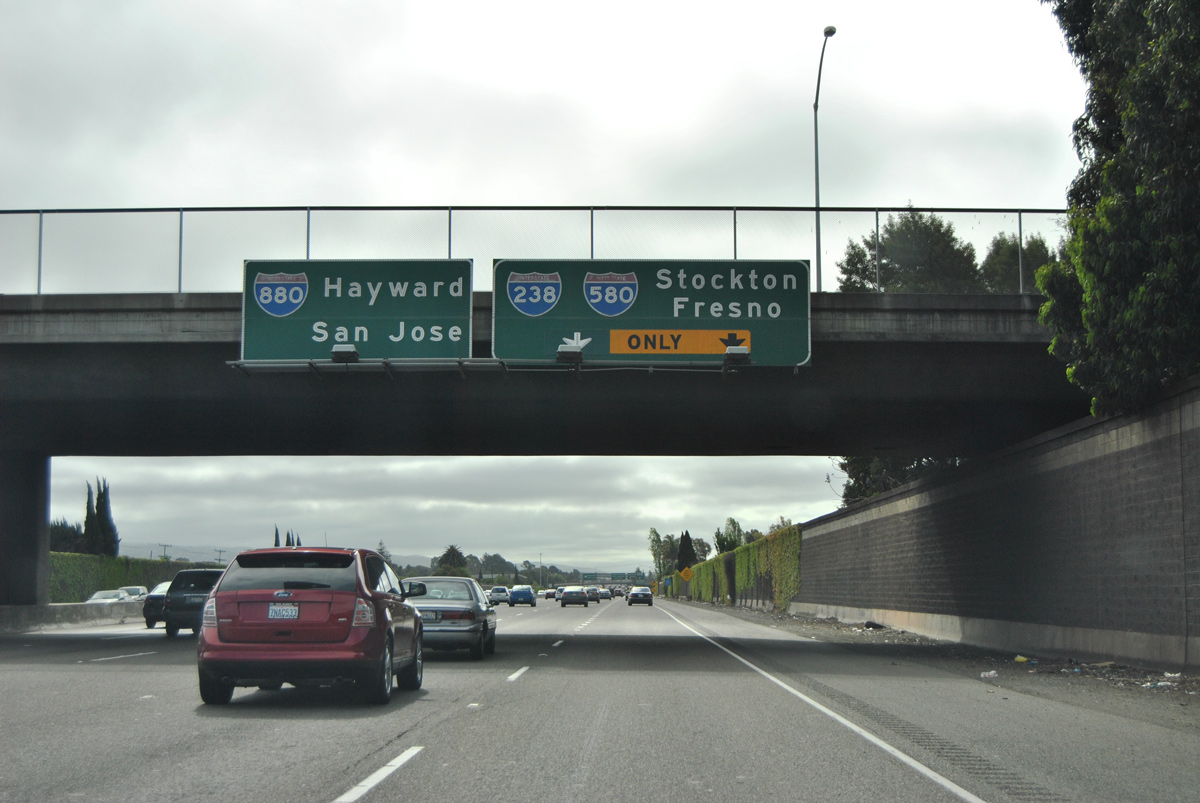

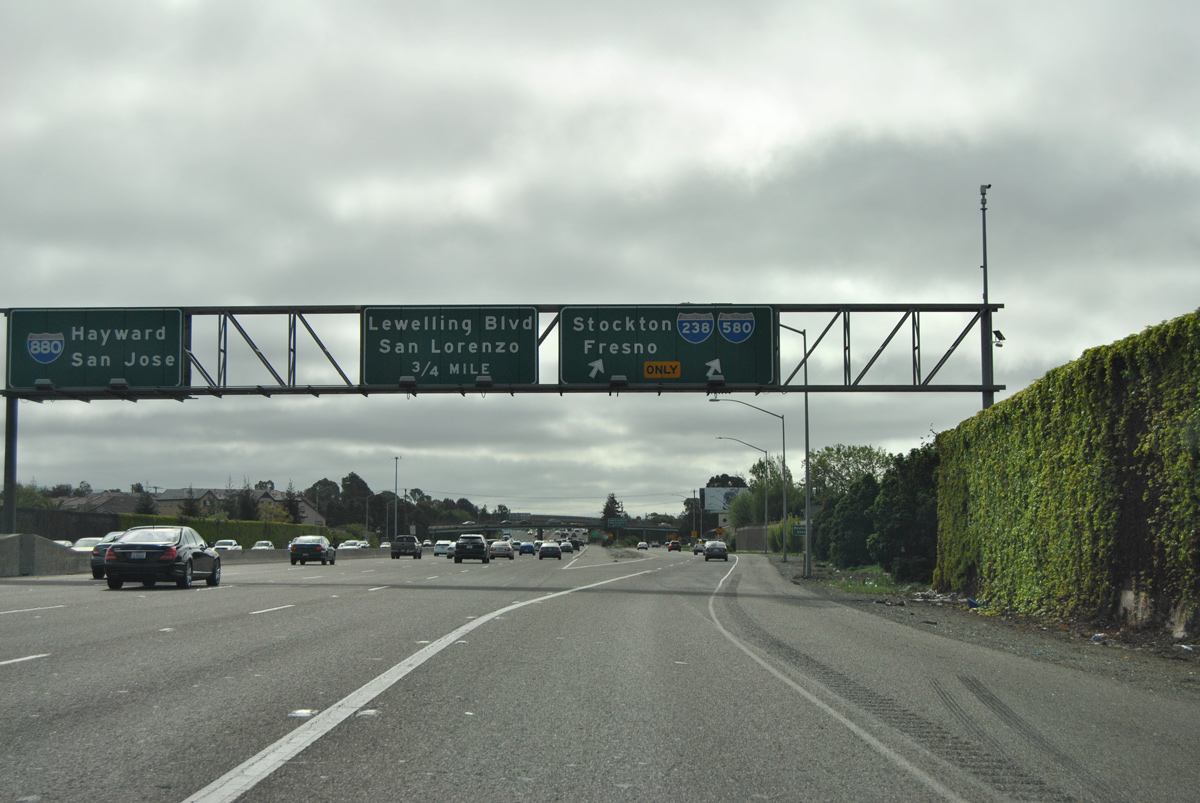

Exit 31 departs Interstate 880 (Nimitz Freeway) south in 0.4 miles for Interstate 238 south. I-238 provides a connection to I-580 south for Stockton and Fresno in the Central Valley. 03/27/16

Exit 31 forms a collector distributor roadway through the parclo interchange with Washington Avenue. An unmarked ramp precedes the southbound ramp for I-238 from I-880 south. 03/27/16

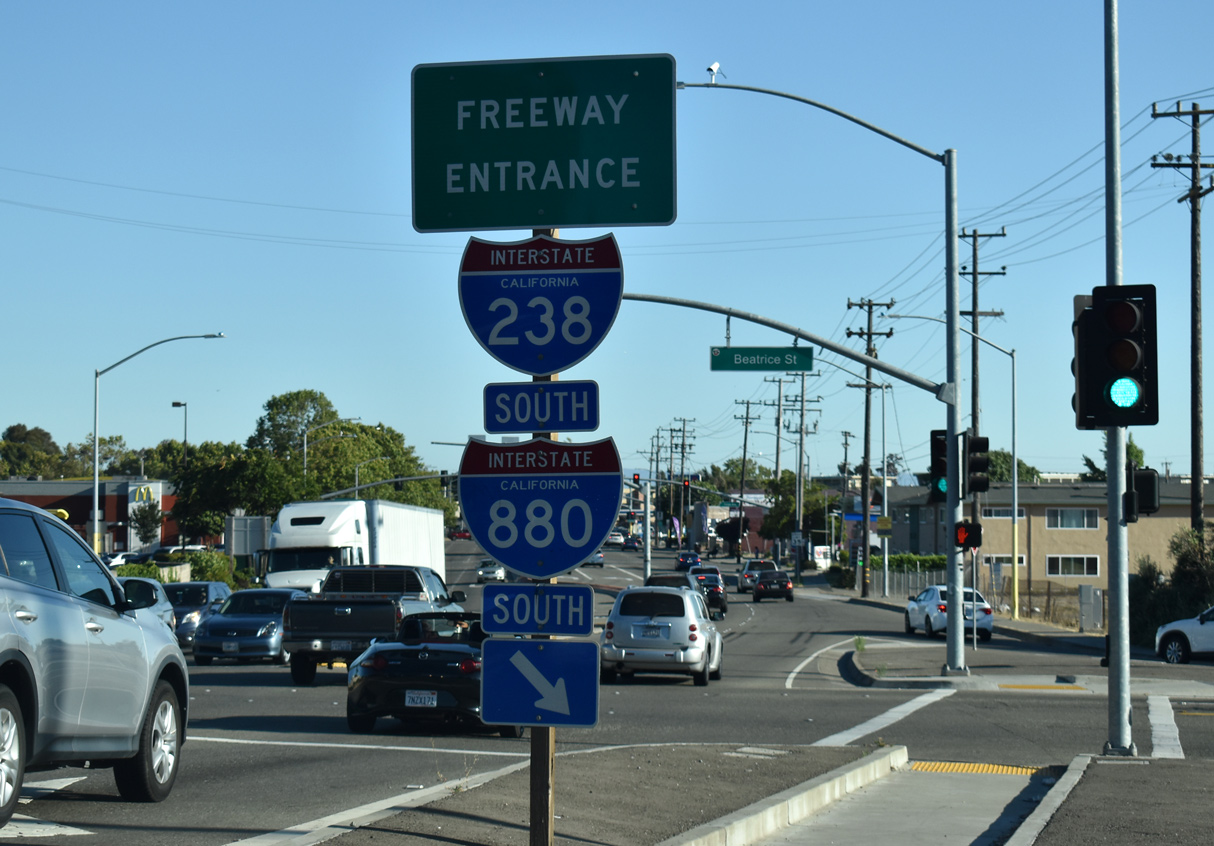

A loop ramp adds traffic from Washington Street and San Leandro as Interstate 238 south passes below the I-880 mainline. I-238 heads east through Ashland to converge with I-580 south through Castro Valley. 03/27/16

North End Throwback

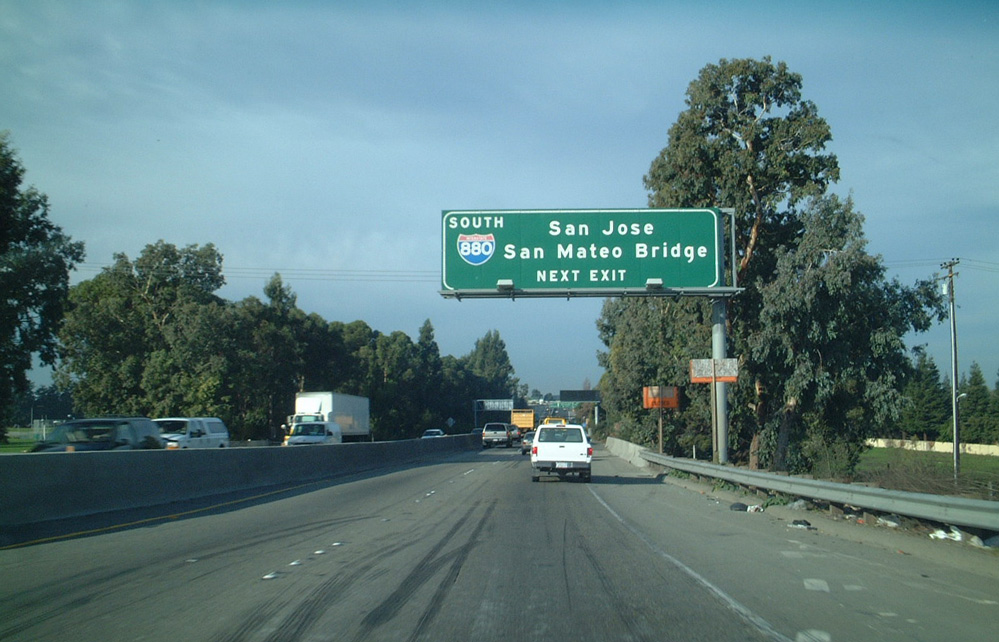

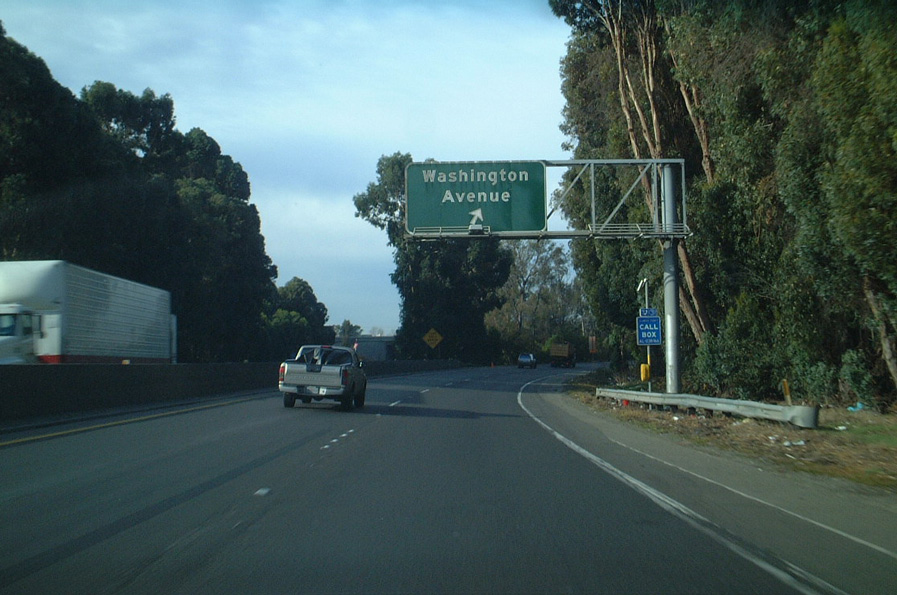

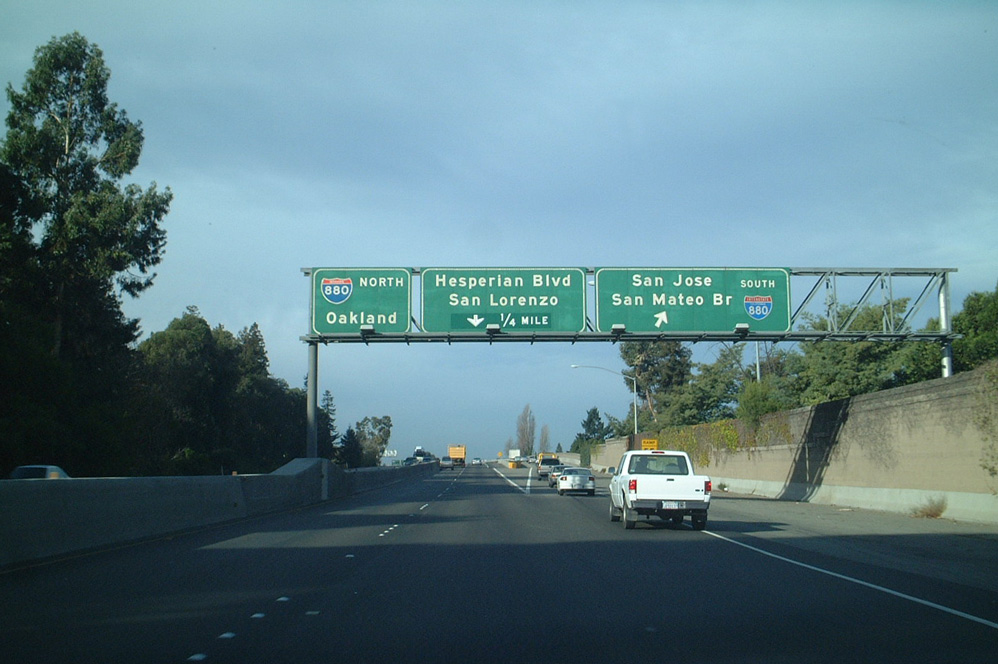

Interstate 238 with just four overall lanes west from Ashland Avenue to Washington Avenue. 12/27/01

South End – Hayward, California

South at

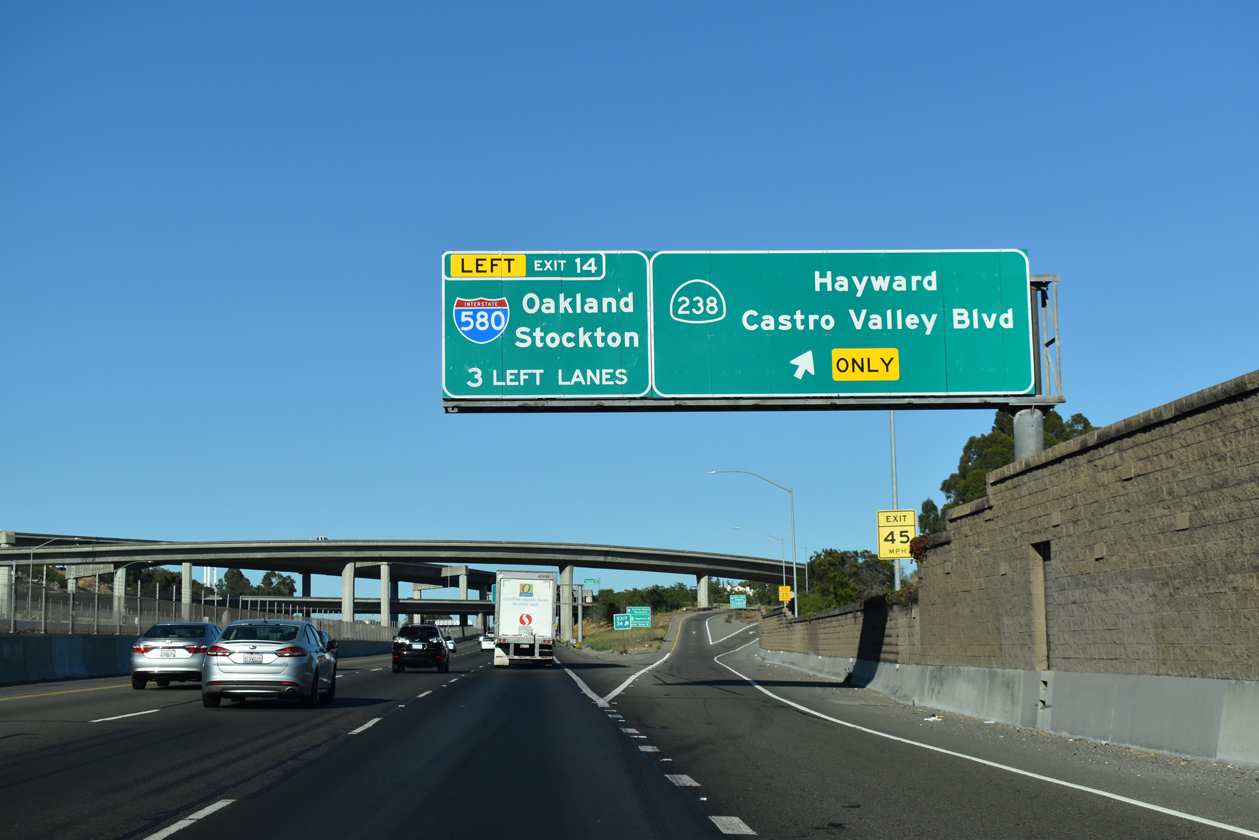

Interstate 238 south defaults onto I-580 east beyond the southbound off-ramp to SR 238 (Foothill Boulevard). The cloverstack interchange between the two freeways includes wide grassy areas originally reserved for the freeway continuation south to Hayward. 07/11/18

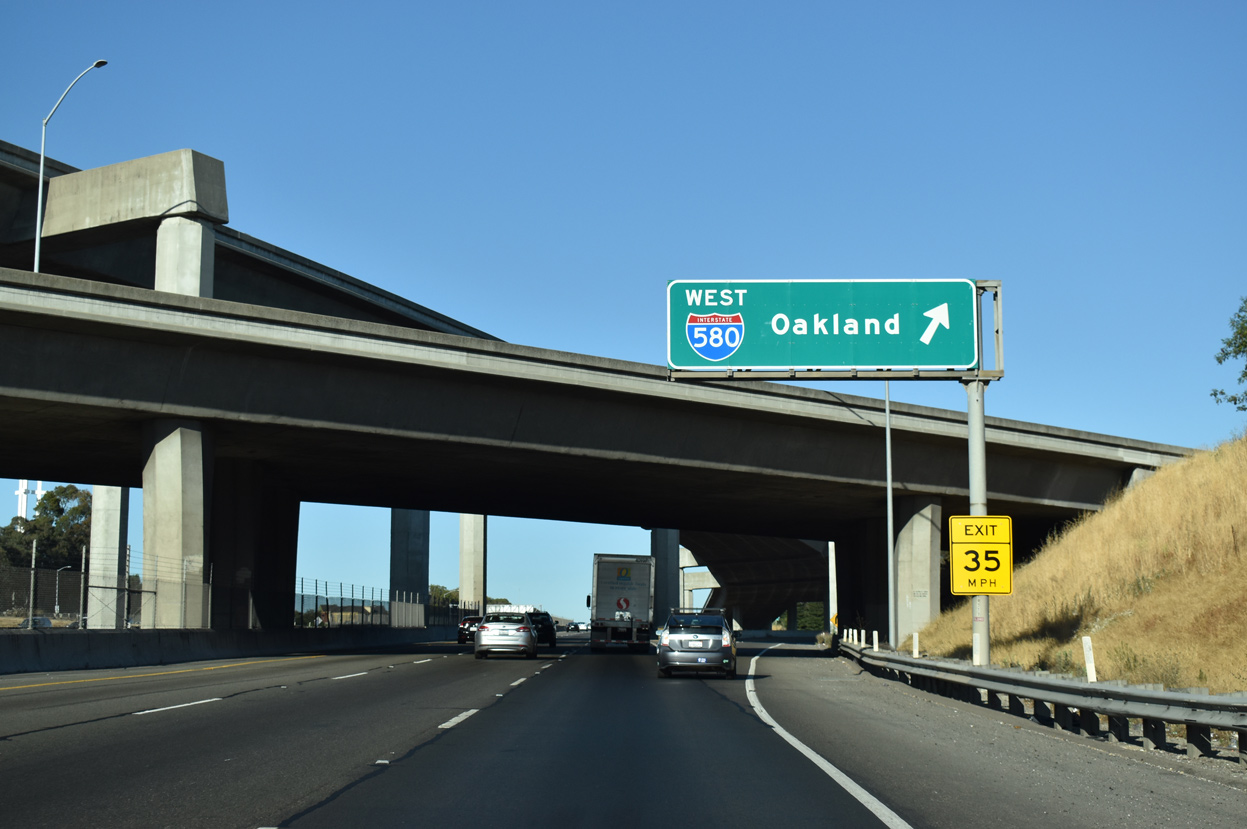

A loop ramp (Exit 14) follows for Interstate 580 leading northwest to Oakland. I-580 connects the San Francisco Bay area with the Central Valley at Tracy. 07/11/18

Interstate 238 ends as I-580 turns east through Castro Valley for the climb east to Dublin Canyon. Exit numbers along I-238 reference the mileage of SR 238 south to Interstate 680 at Fremont. 07/11/18

West at

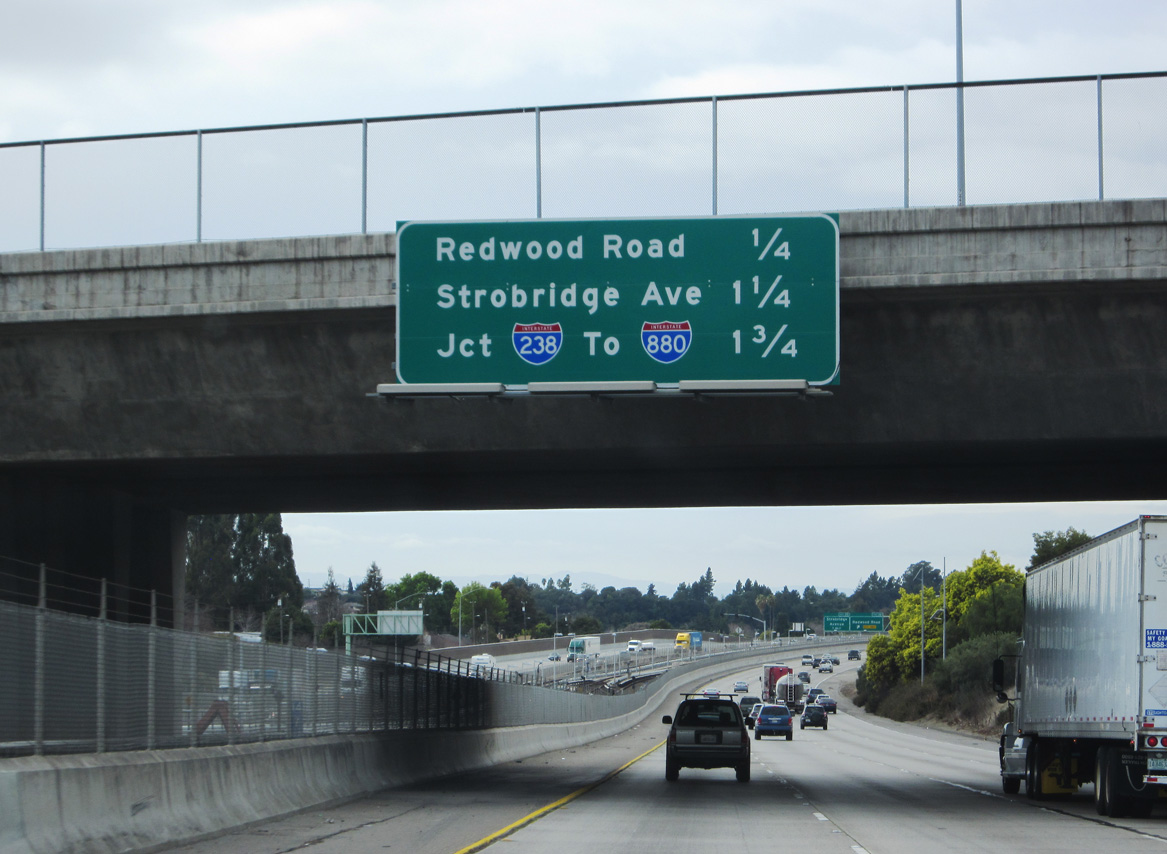

Interchange sequence sign displaying I-238 to I-880 on westbound Interstate 580. The left lanes of I-580 west default onto I-238 north at Exit 34 in 1.75 miles. I-238 and I-880 provide an alternate route to I-580 for the San Francisco-Oakland Bay Bridge and I-80. 02/20/12

The forthcoming cloverstack interchange joins I-580 and I-238 with SR 238 (Foothill Boulevard) to the southeast. There is no access to SR 238 south from I-580 west however. Strobridge Avenue / Exit 35 and Mattox Road instead provides an at-grade connection to Foothill Boulevard south. 02/20/12

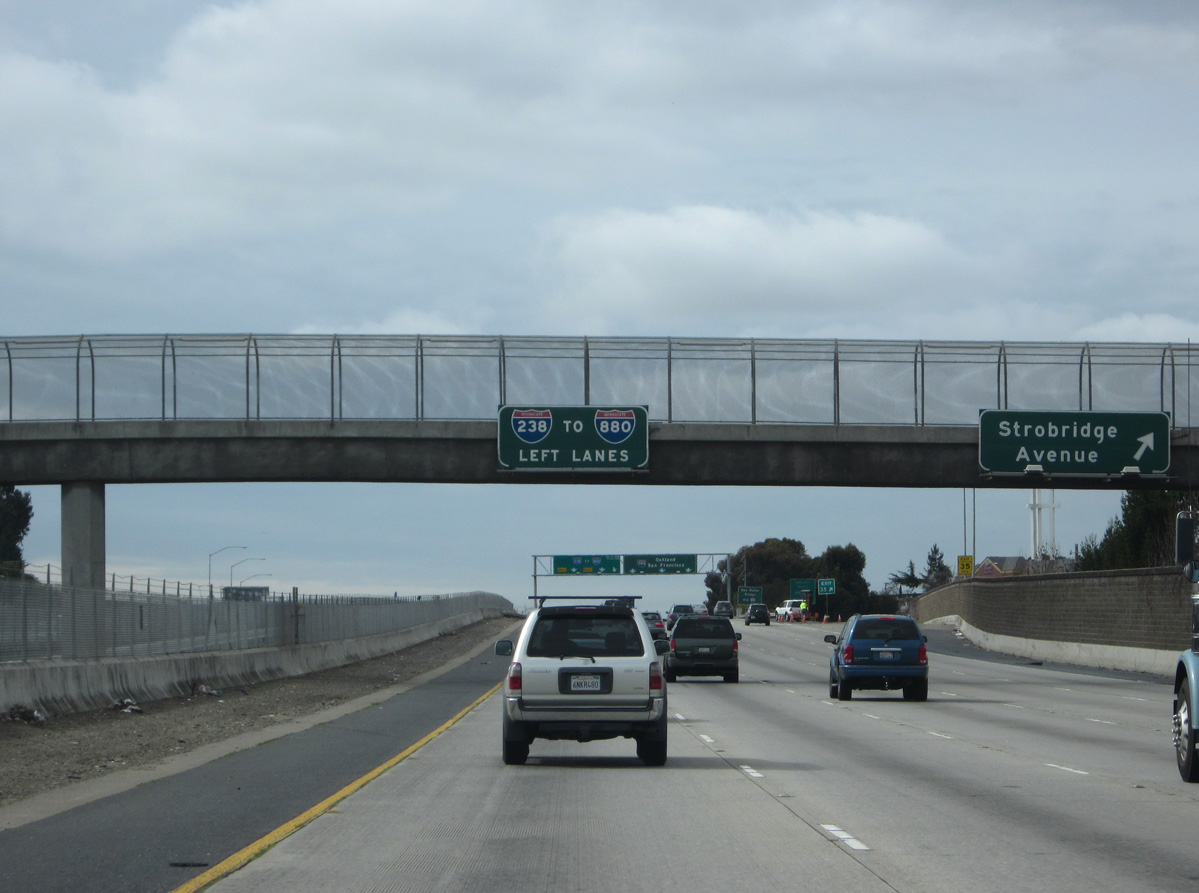

Spanning Strobridge Avenue, westbound I-580 separates with three lanes continuing onto the MacArthur Freeway north to eastern Oakland. I-580 splits with SR 13 (Warren Freeway) in 8.5 miles. The Warren Freeway provides a cut off east to SR 24 (Grove Shafter Freeway) for the East Bay Cities of Walnut Creek and Concord. 02/20/12

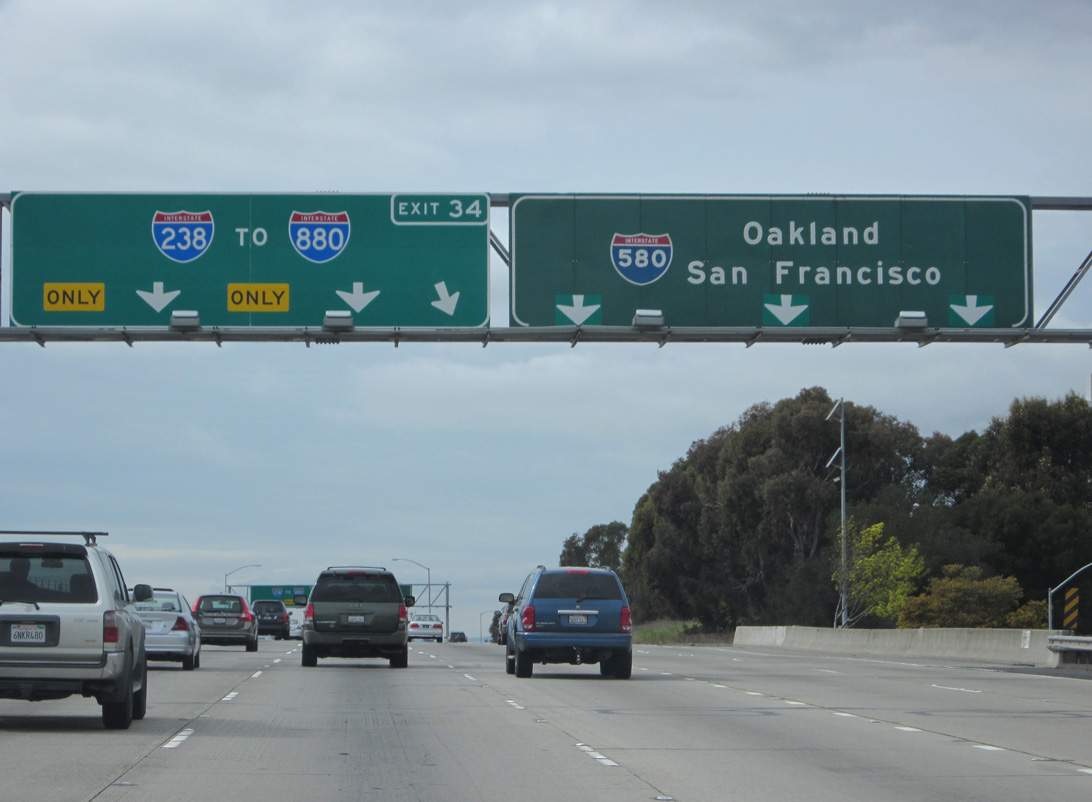

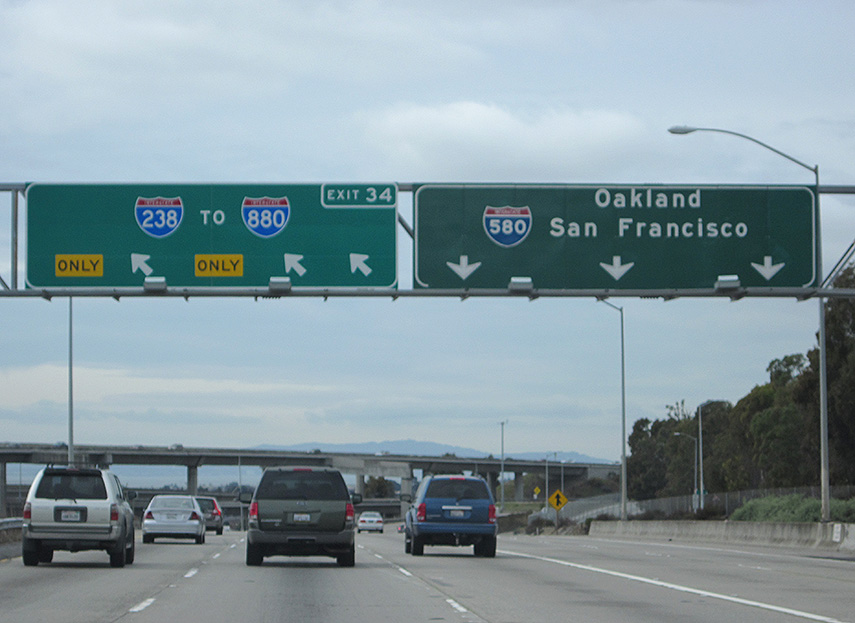

Left Exit 34 departs for Interstate 238 north to Ashland, San Lorenzo and San Leandro. Previously there were only two through lanes for I-238, but the Alameda County Transportation Sales Tax eventually funded widening of the freeway to three lanes per direction. 02/20/12

/ Foothill Blvd north at

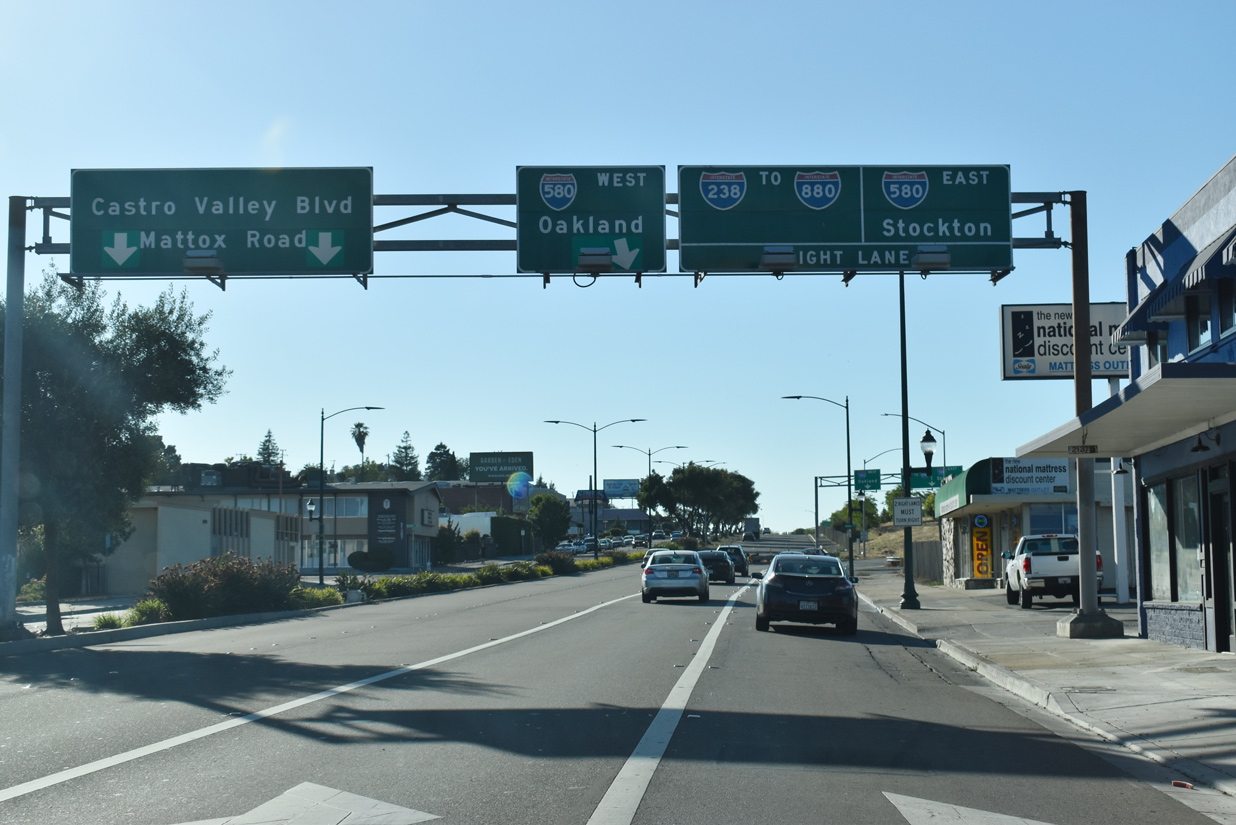

SR 238 separates from Mission Boulevard and follows Foothill Boulevard north from Downtown Hayward to I-238 and I-580. 07/11/18

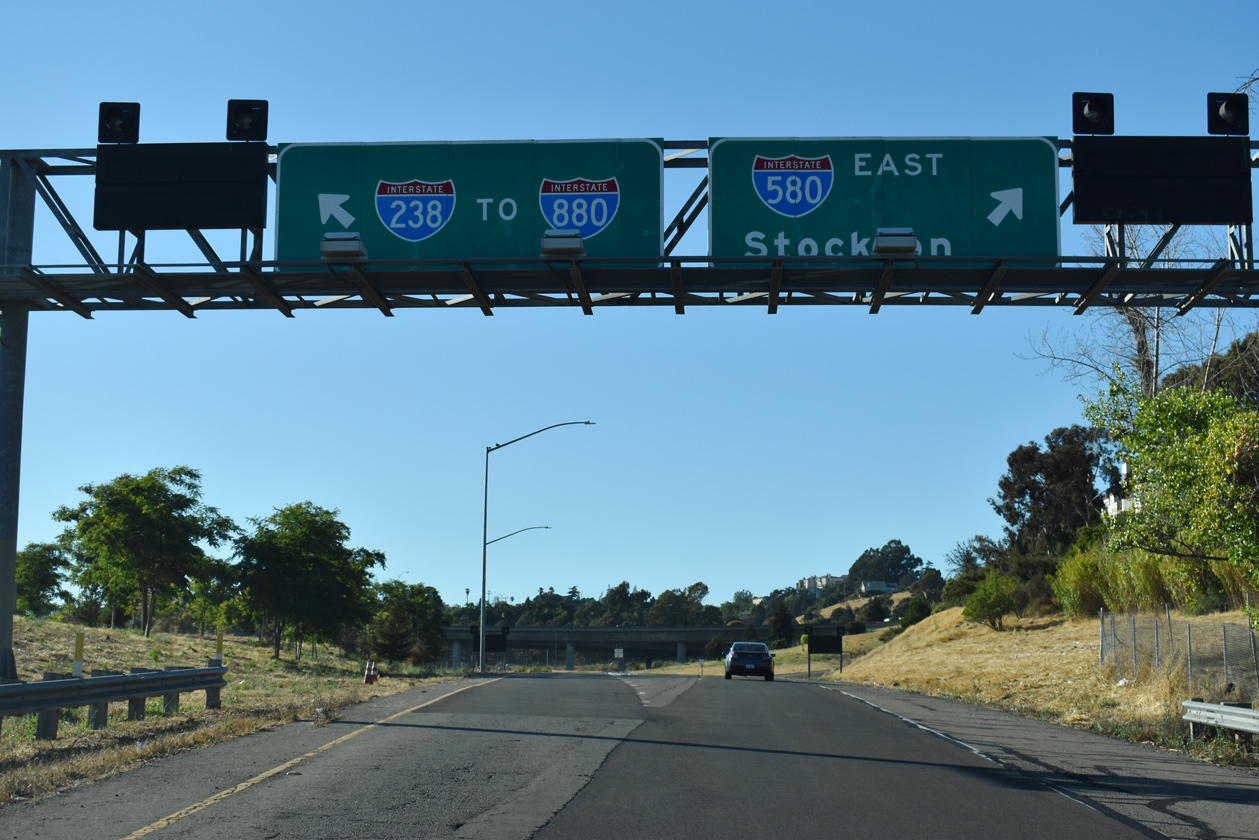

SR 238 transitions to I-238 south to San Leandro and I-880 as motorists depart for I-580 east to San Ramon Valley and ultimately the Central Valley and Interstate 5. 07/11/18

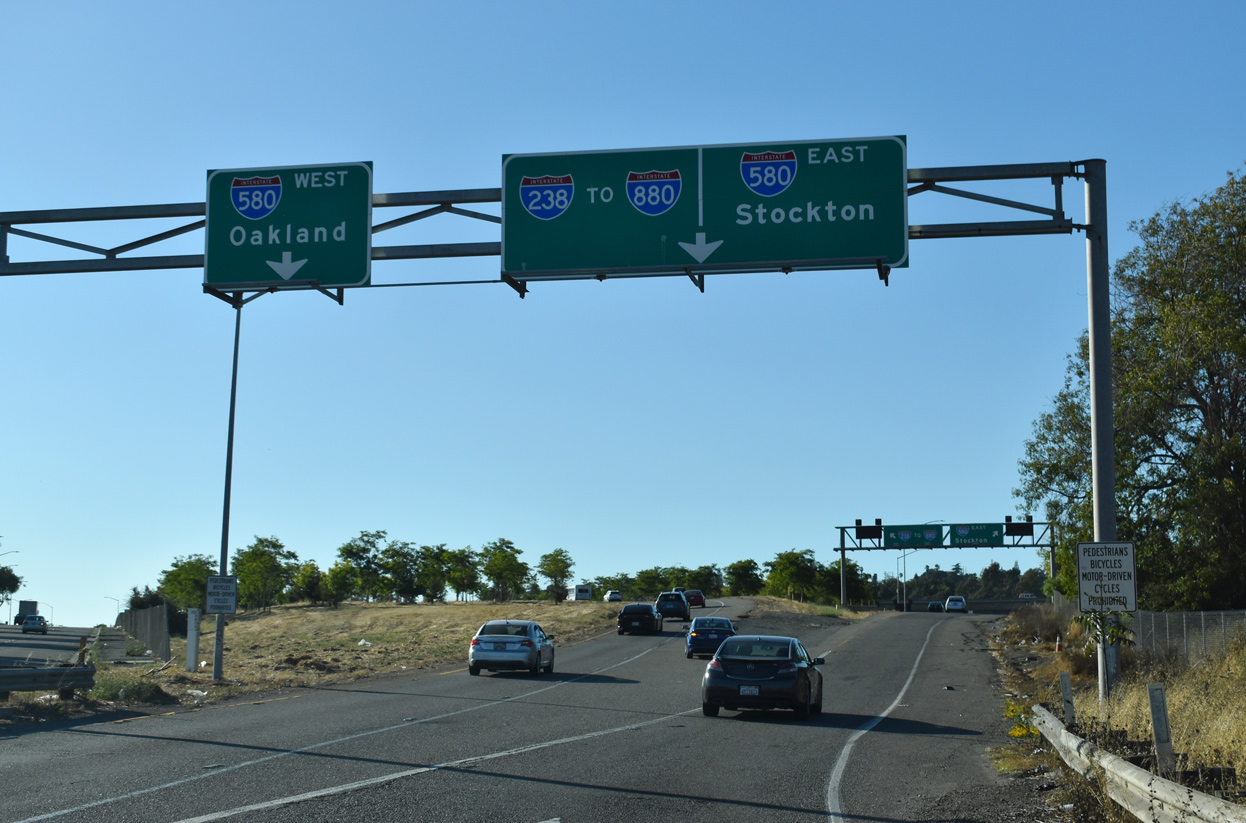

SR 238 splits into ramps for I-580 west, using the Mission Freeway northbound roadway, I-580 east and I-238 south. 07/11/18

East at

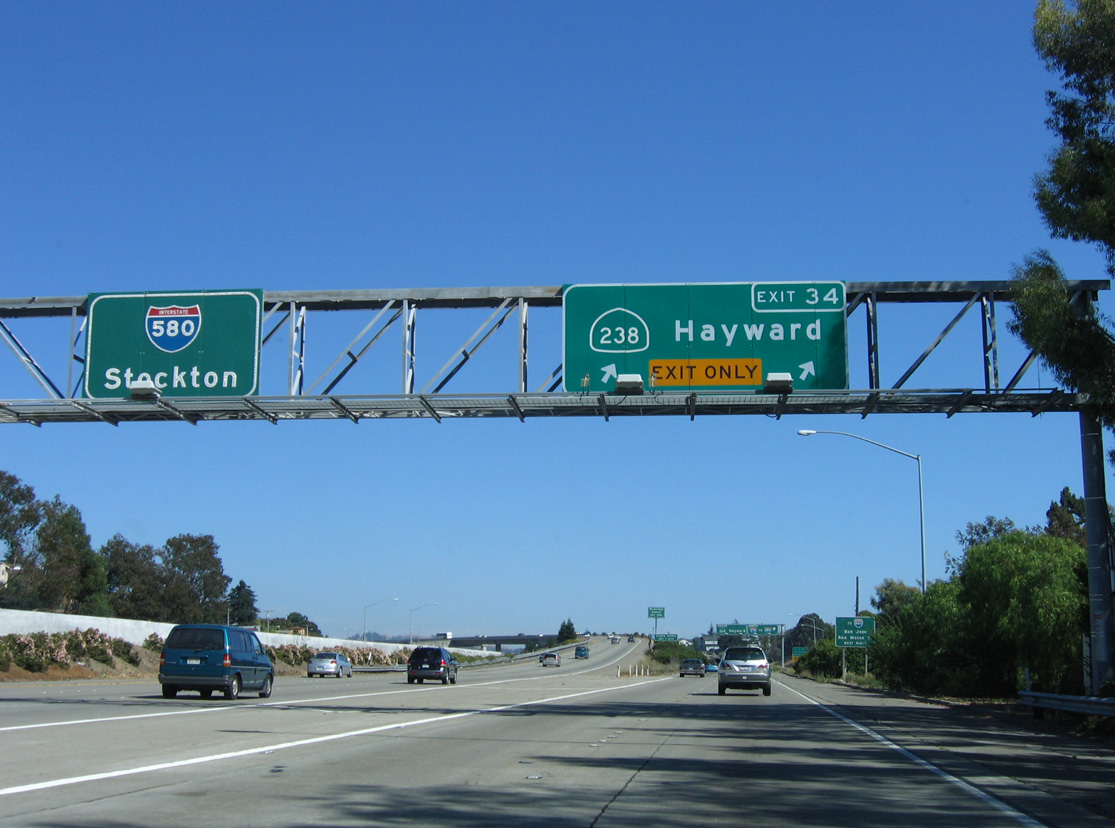

Advancing south from the 163rd Avenue entrance ramp, Interstate 580 (MacArthur Freeway) next meets Exit 34 for both I-238 north and SR 238 north. 07/02/06

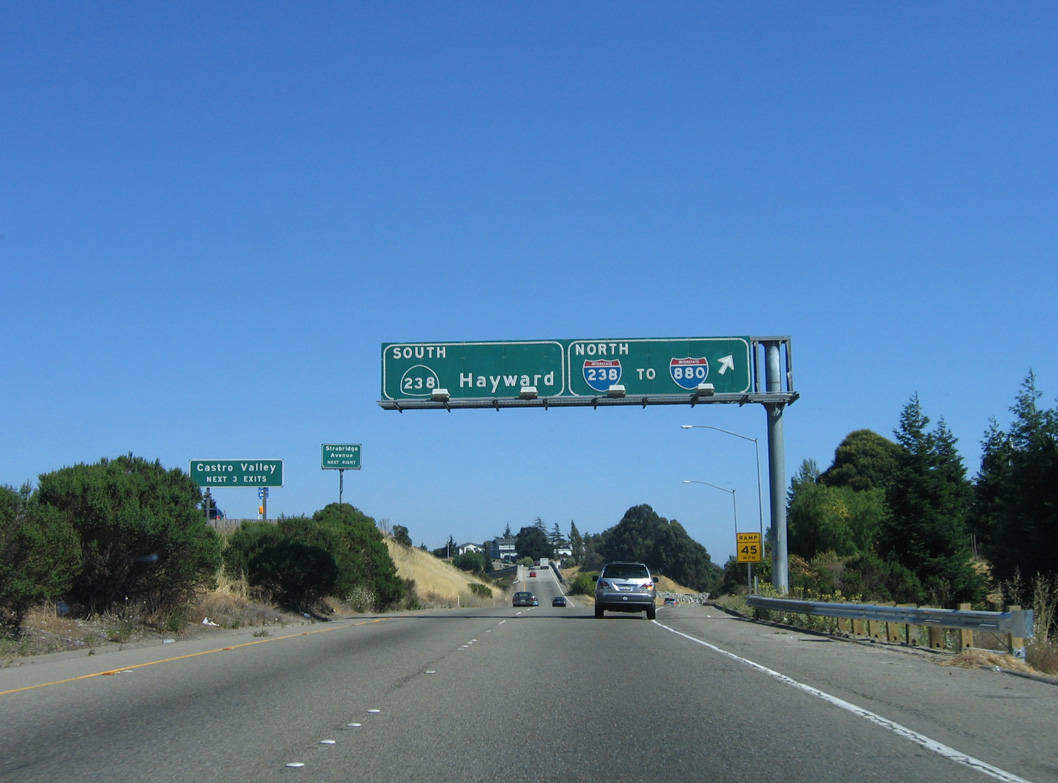

Exit 34 departs Interstate 580 south with two lanes for SR 238 south to Hayward and I-238 north to San Leandro. I-580 turns east and overtakes the end of I-238 through Castro Valley. 07/02/06

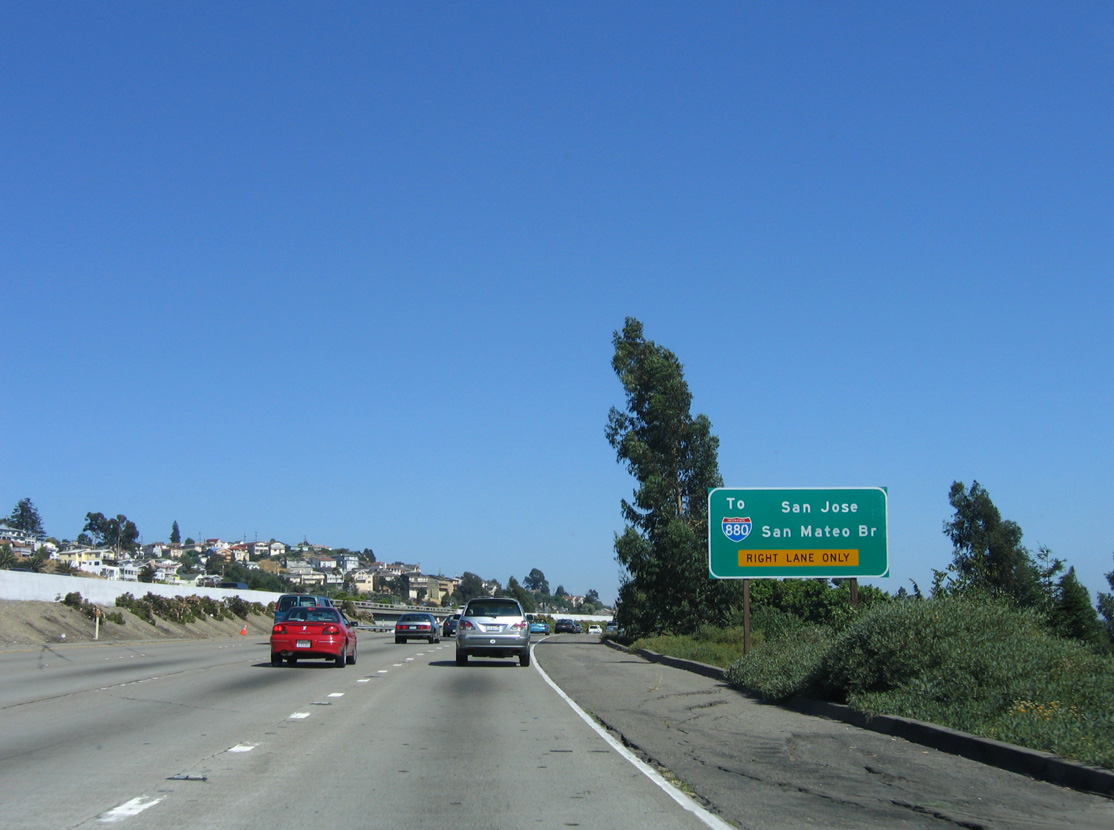

Exit 34 carries two lanes south directly to SR 238 and Foothill Boulevard. This would have been the Mission Freeway mainline had it been constructed south to Hayward. A single lane ramp turns west onto I-238 to I-880 for motorists headed south to San Mateo Bridge (SR 92) or San Jose. 07/02/06

South End Throwback

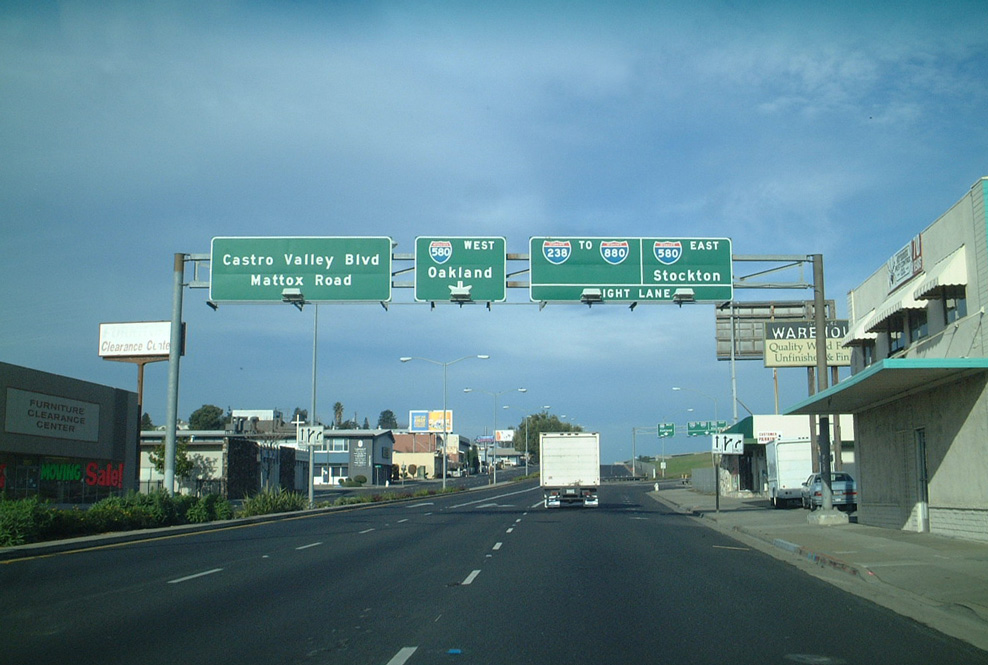

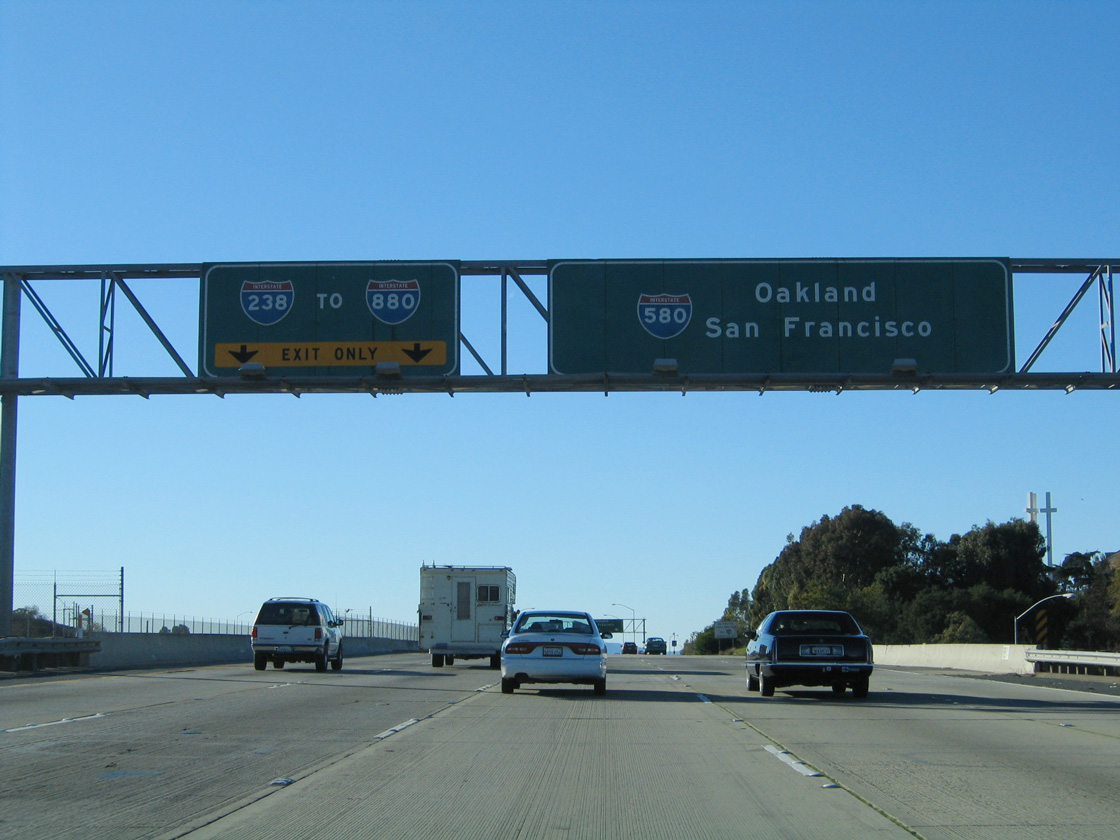

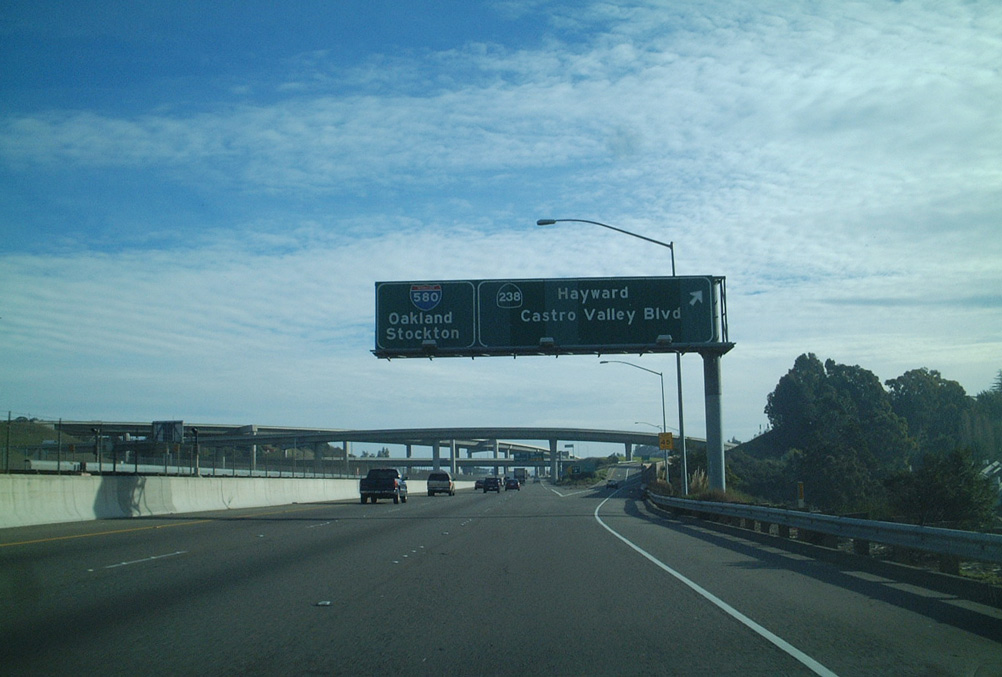

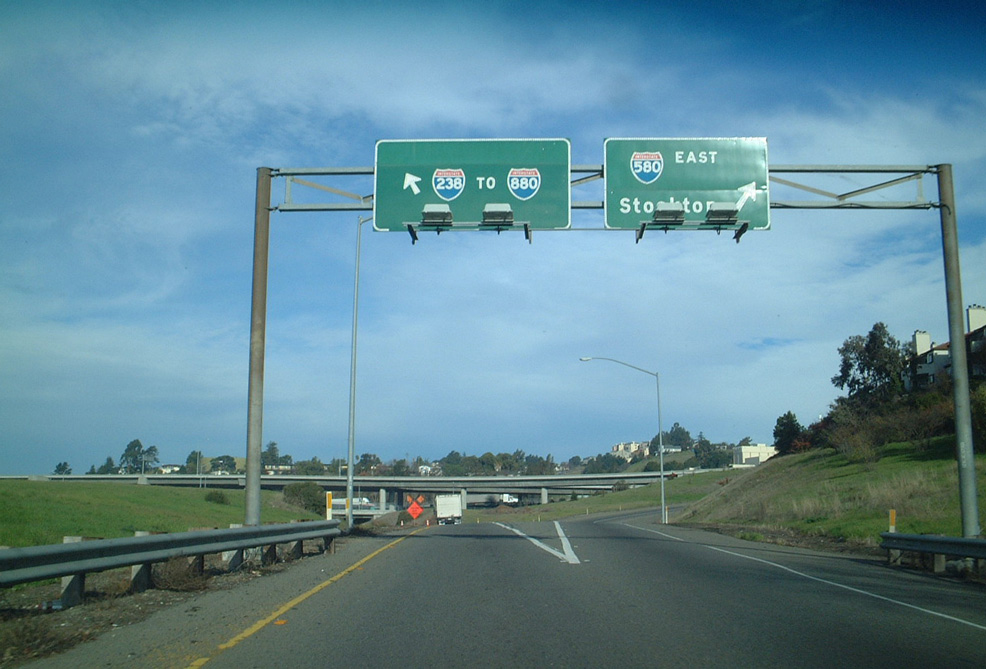

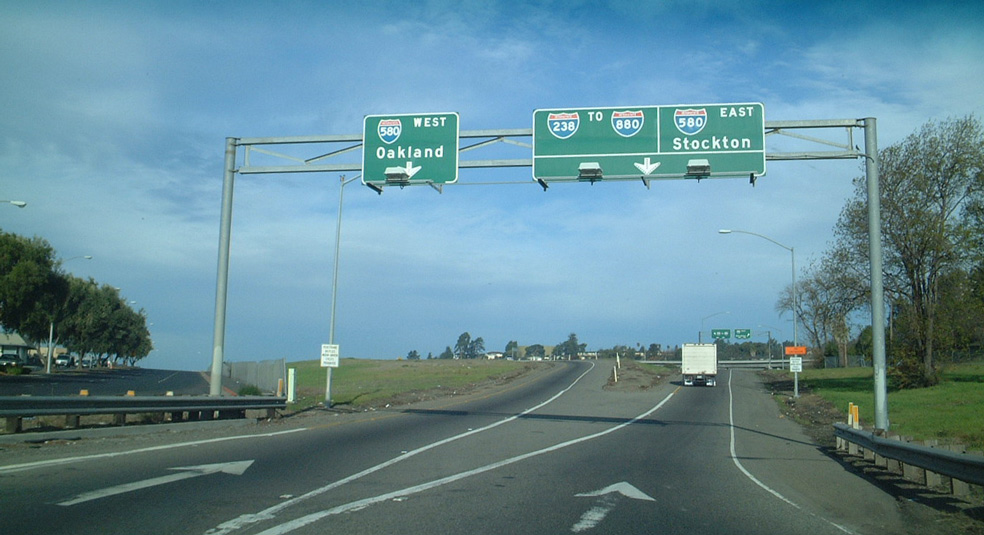

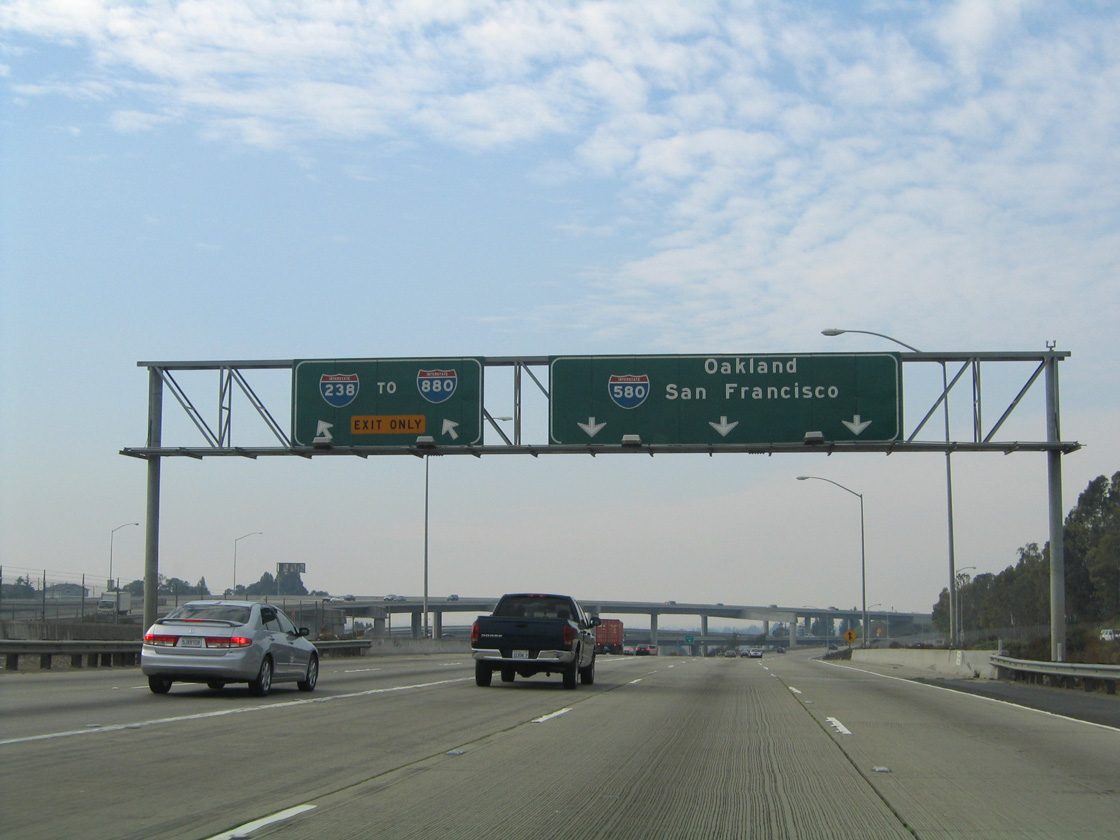

I-238 north at I-580 and SR 238 (Foothill Boulevard) north at I-238 and I-580. 12/27/01. I-580 west at I-238. 11/26/04

Page updated March 5, 2019.
