Overview

I-980 west at I-580 - Oakland, CA

Traveling southwest through the four-level interchange linking SR 24, I-580 (MacArthur Freeway) and I-980 (Grove Shafter Freeway) in Oakland. 07/18/09

Interstate 980 is an urban freeway connecting I-880 (Nimitz Freeway) with California State Route 24 (Grove Shafter Freeway) in the city of Oakland. I-980 forms the western leg of a major commuter route joining the East Bay communities of Walnut Creek and Concord with Downtown Oakland and Oakland International Airport (OAK).

Sign replacements made in 2016 added exit numbers to eastbound off-ramps. Confirming markers along Interstate 980 were installed by 2011.

History

The one mile section of I-980 between I-580 and 21st Street was constructed as part of Federal-aid Projects I-580-1(148)1 and U-039-1(10). The controlled access roadway was built to Interstate standards except for shoulder widths, which were eight feet wide on elevated structures. The Federal Highway Administration (FHWA) allowed the minor exception and accepted the route into the Interstate system on January 29, 1976. The remaining 0.8 mile segment southwest to SR 17 (I-880) was also approved under the provisions of 23 USC 103(e)(1).1

FHWA tentatively assigned Interstate 180 for the route, subject to concurrence of the American Association of State Highway and Transportation Officials (AASHTO). However it was determined that 980 should be used instead, due to conflicts with California State Route 180 across the Central Valley. Numbering the route I-980 was subsequently discussed with the FHWA, resulting in their concurrence. Interstate 980 was formally approved by AASHTO on July 12, 1976.1

Interstate 980 was added to the Interstate Highway System to secure federal funding. Otherwise it was slated to become part of an extended freeway for SR 24. A 0.80 mile section of the route was initially approved as an addition to the California Interstate Highway System mileage in 1976. The Interstate was designated by the Federal Highway Administration (FHWA) in 1983 and added to the California State Highway System in 1984. A ribbon cutting ceremony marked the completion of Interstate 980 on March 6, 1985.2

Route Information

  • East End – Oakland, CA

  • West End – Oakland, CA

  • Mileage – 2.03

  • Cities – Oakland

  • Junctions – I-880 I-580

Source: December 31, 2021 Interstate Route Log and Finders List

I-980 Annual Average Daily Traffic (AADT)

Location Vehicles per day
I-880 92,400
14th St 97,700
18th St 140,700

Source: 2017 Traffic Volumes – Caltrans Traffic Census Program

Oakland, CA - 1971

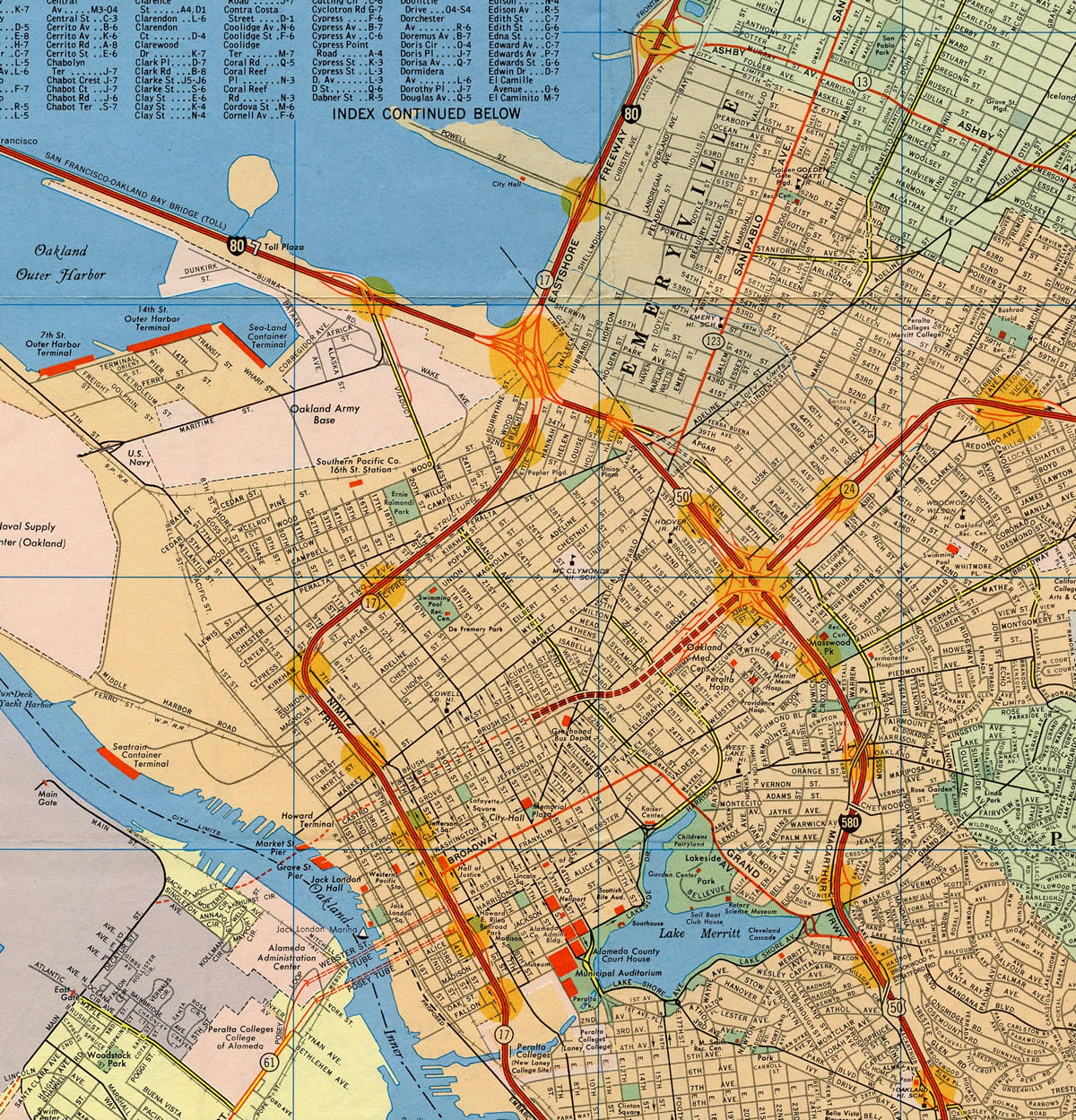

Interstate 980 under construction as an extension of California State Route 24 in 1971.

I-880 north at I-980 - 1993

Temporary guide sign used during the closure of the Nimitz Freeway north of I-980 following the 1989 Loma Prieta Earthquake. April 1993

Interstate 980 served as a detour route for the northernmost portion of I-880 (Nimitz Freeway) between 1989 and 1999. Portions of the Cypress Structure, the double-decked section of the Nimitz Freeway (I-880), collapsed during the 1989 Loma Prieta Earthquake. I-980 became the defacto route north to I-80 west across the San Francisco-Oakland Bay Bridge and I-80/580 north to Richmond.

There are no plans to extend the Interstate 980 designation east or west. With the addition of the fourth bore for the Caldecott Tunnel, SR 24 is up to Interstate Standards east to Orinda and Walnut Creek. The fourth bore opened to traffic on November 16, 2013, expanding the freeway to eight overall lanes across the Berkeley Hills.

 Photo Guides

East End I-580 SR 24 – Oakland, California

I-980 East at I-580 SR 24

I-980 east at I-580/SR 24

Interstate 980 travels below grade between Brush and Castro Streets before shifting eastward onto a viaduct over Grand and San Pablo Avenues. There are no additional local off-ramps to the multi level interchange with Interstate 580. 07/11/18

I-980 east at I-580/SR 24

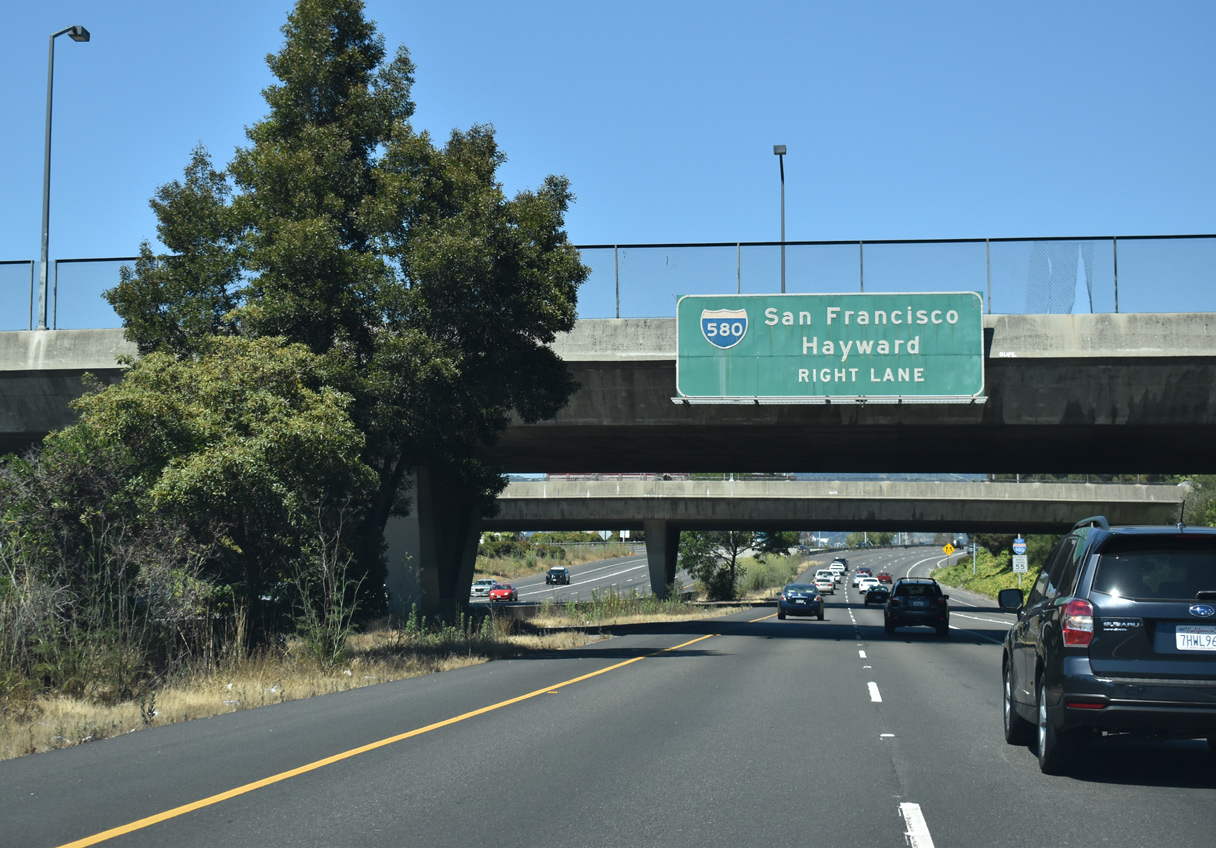

Crossing over Martin Luther King, Jr. Way, the Interstate 980 right of way widens to accommodate a BART line between the east and westbound lanes. The BART line extends northeast along SR 24 (Glen Shafter Freeway) to Patton Street. 07/11/18

I-980 east at I-580/SR 24

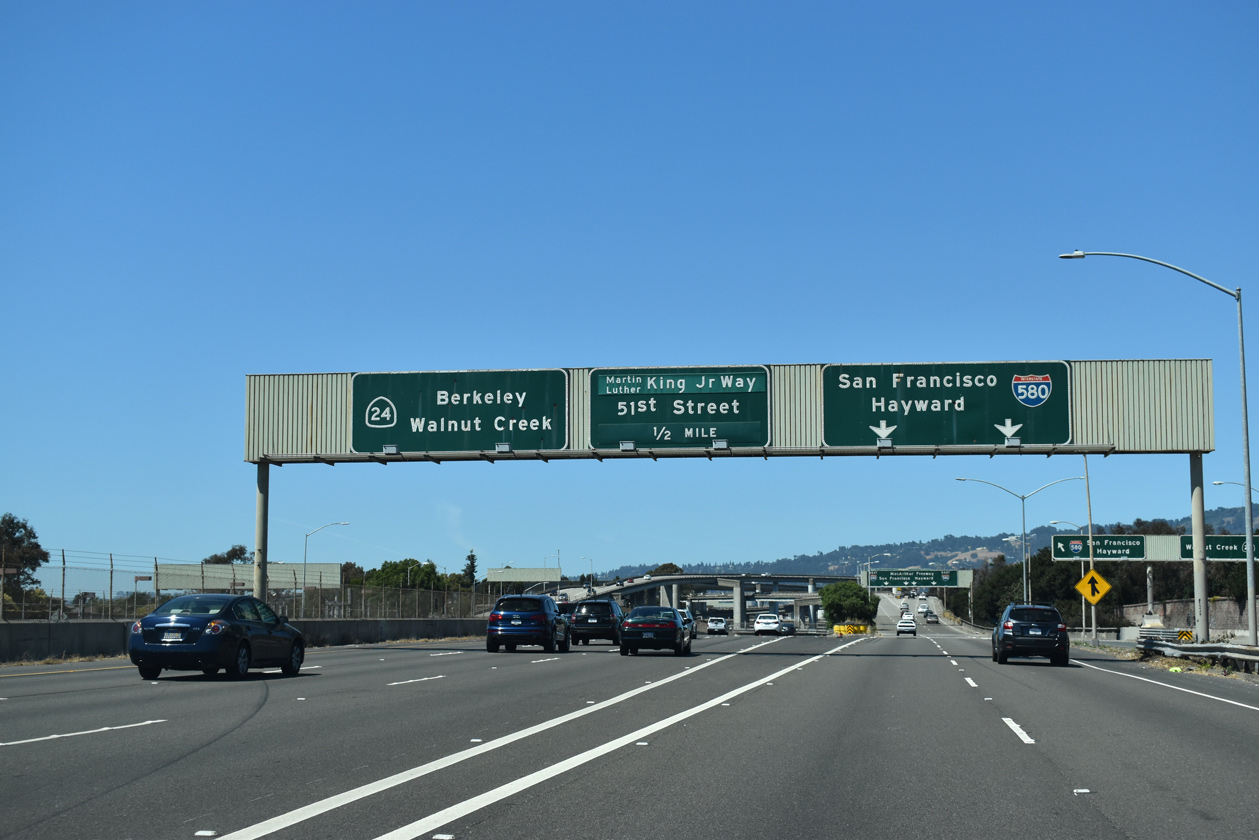

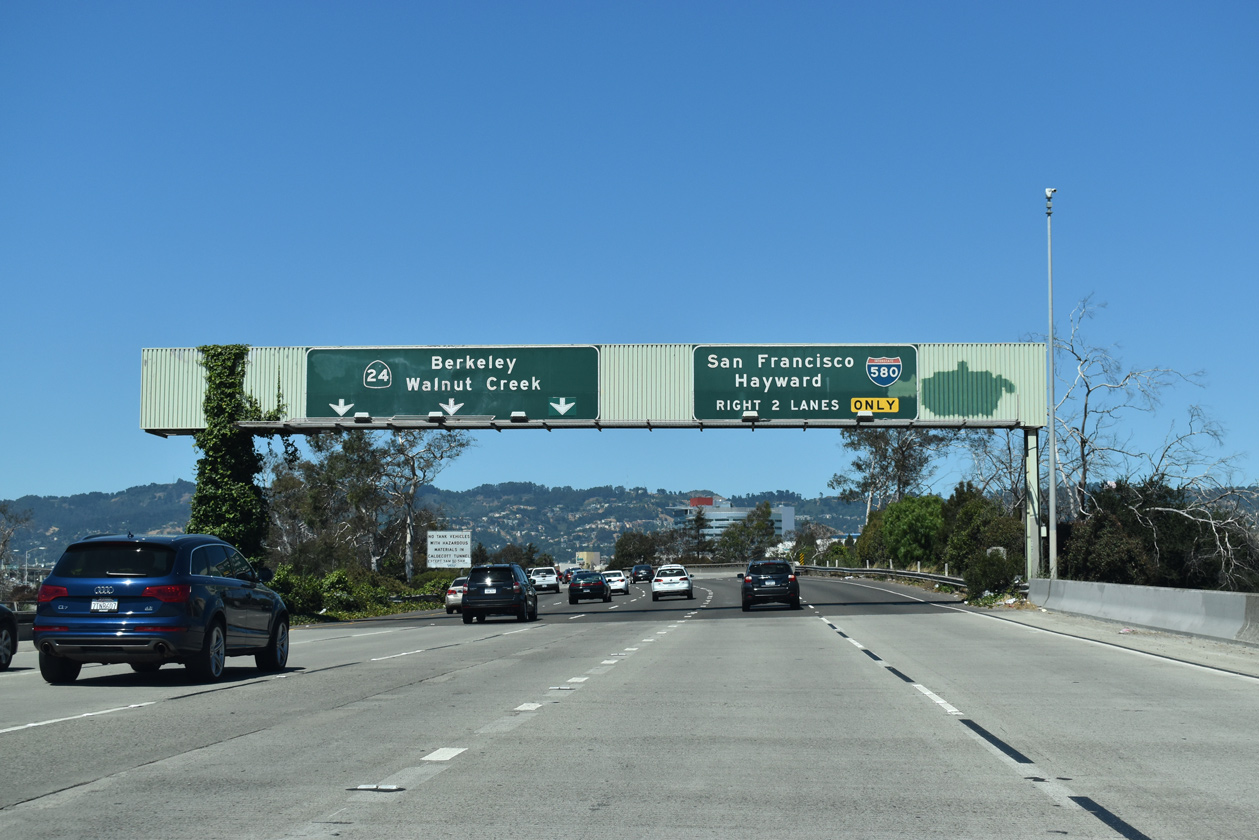

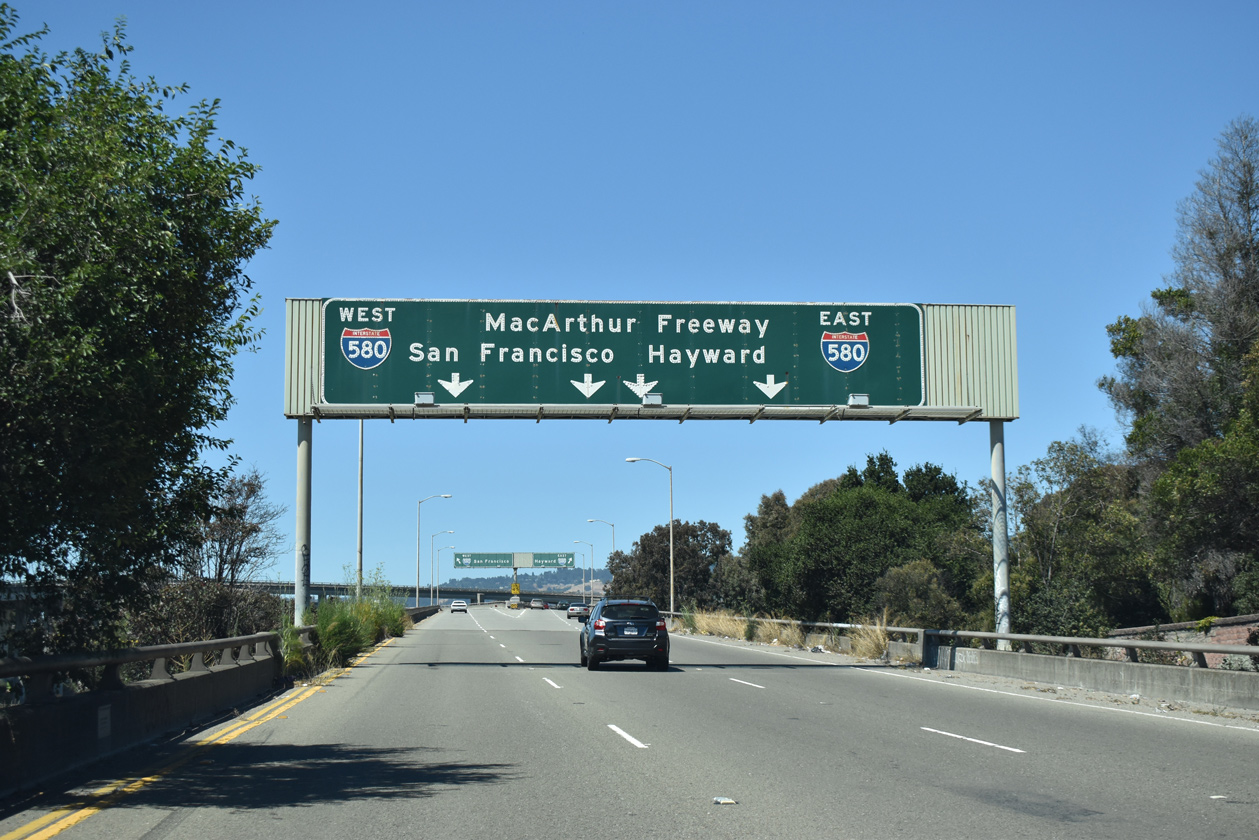

Exit 2 branches away from the I-980 / SR 24 eastbound mainline for Interstate 580 (MacArthur Freeway) west to the Maze Interchange with I-80 and southeast to San Leandro, Castro Valley and Hayward. 07/11/18

I-580 ramps from I-980 east

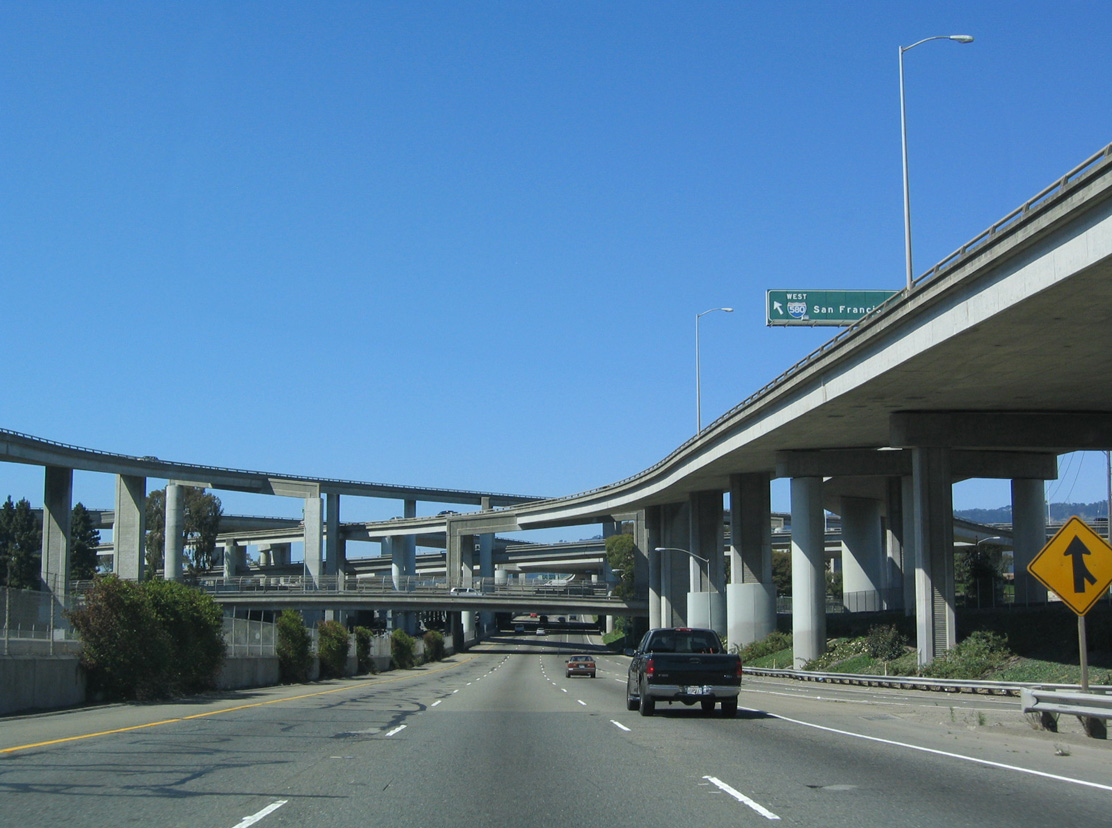

Passing over 30th Street, I-980 / SR 24 east lower to pass below the I-580 mainline and associated flyovers connecting the two freeways. Interstate 580 travels overall northwest toward Richmond and Marin County and southeast toward Dublin and the Central Valley. 07/11/18

I-980 east at I-580/SR 24

SR 24 continues with six then eight overall lanes from I-580 and I-980 to north Oakland and the Caldecott Tunnel. 07/05/04

SR 24 West at I-580 I-980

SR 24 west at I-580/980 - Oakland, CA

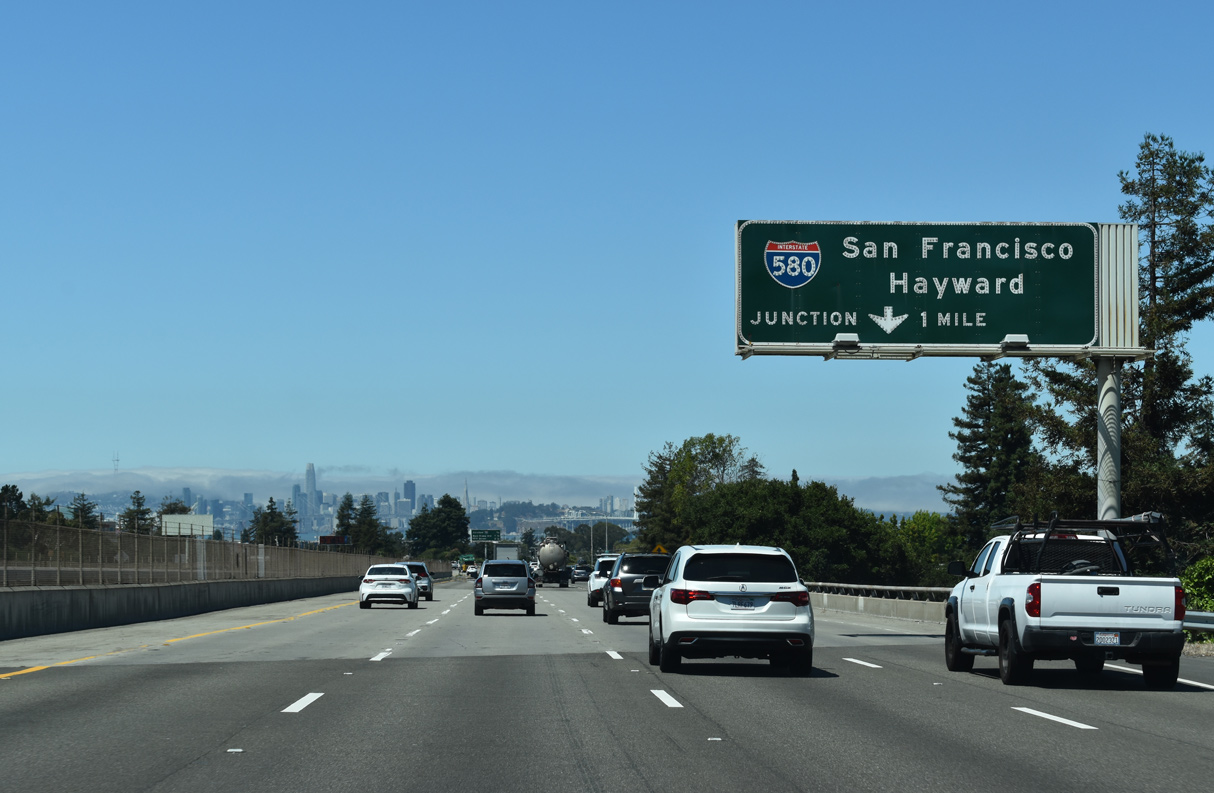

Crossing over Claremont Avenue and Hudson Street, one mile ahead of Interstate 580 (MacArthur Freeway) and I-980. 07/08/22

SR 24 west at I-580/980 - Oakland, CA

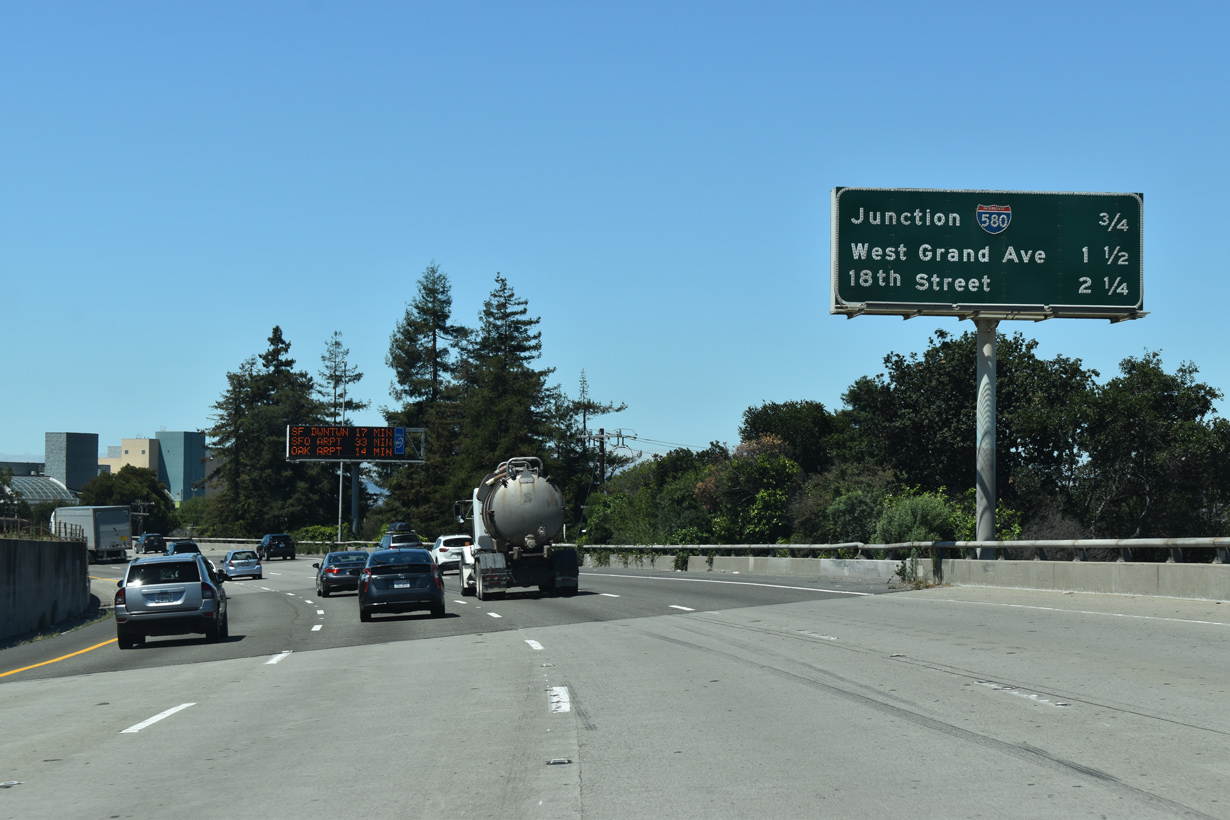

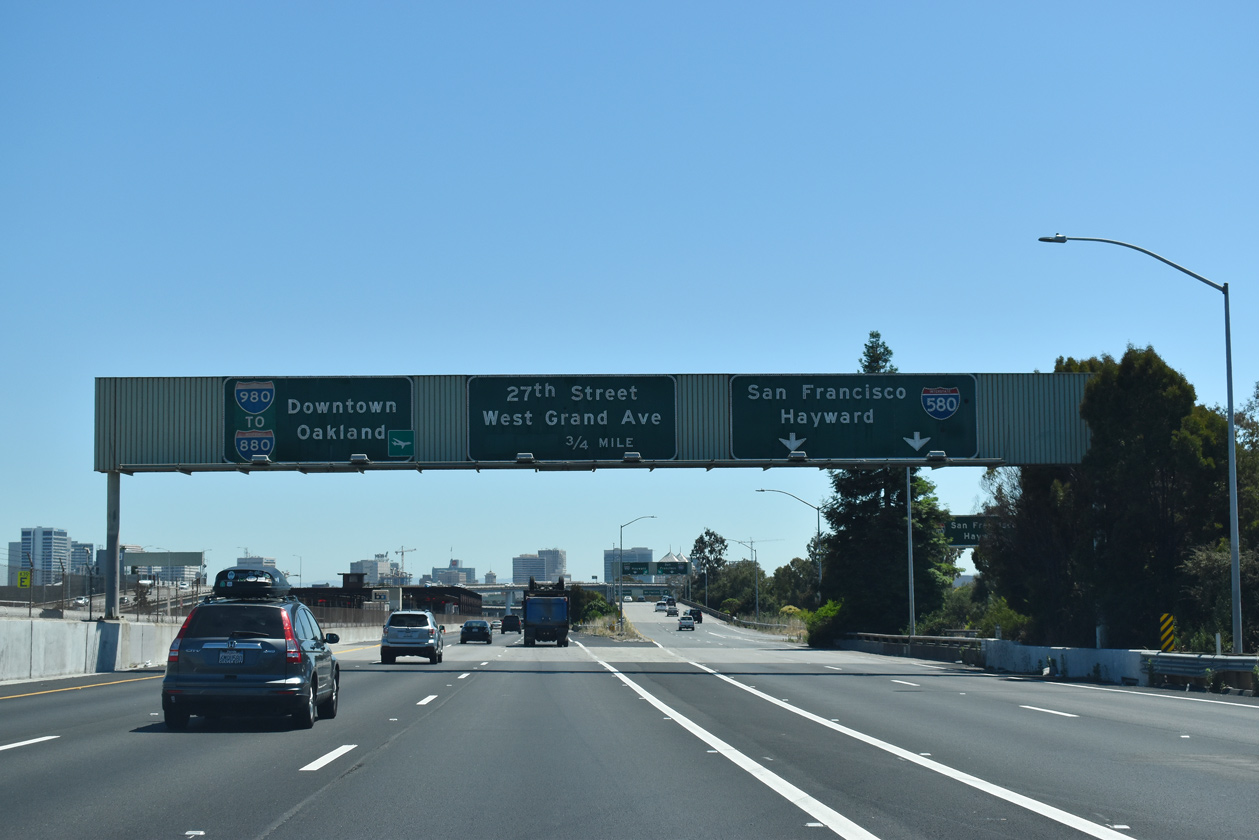

Interchange sequence sign posted 0.75 miles ahead of I-580. The succeeding exits are located along Interstate 980 west ahead of Downtown Oakland. 07/08/22

SR 24 west at I-580/980 - Oakland, CA

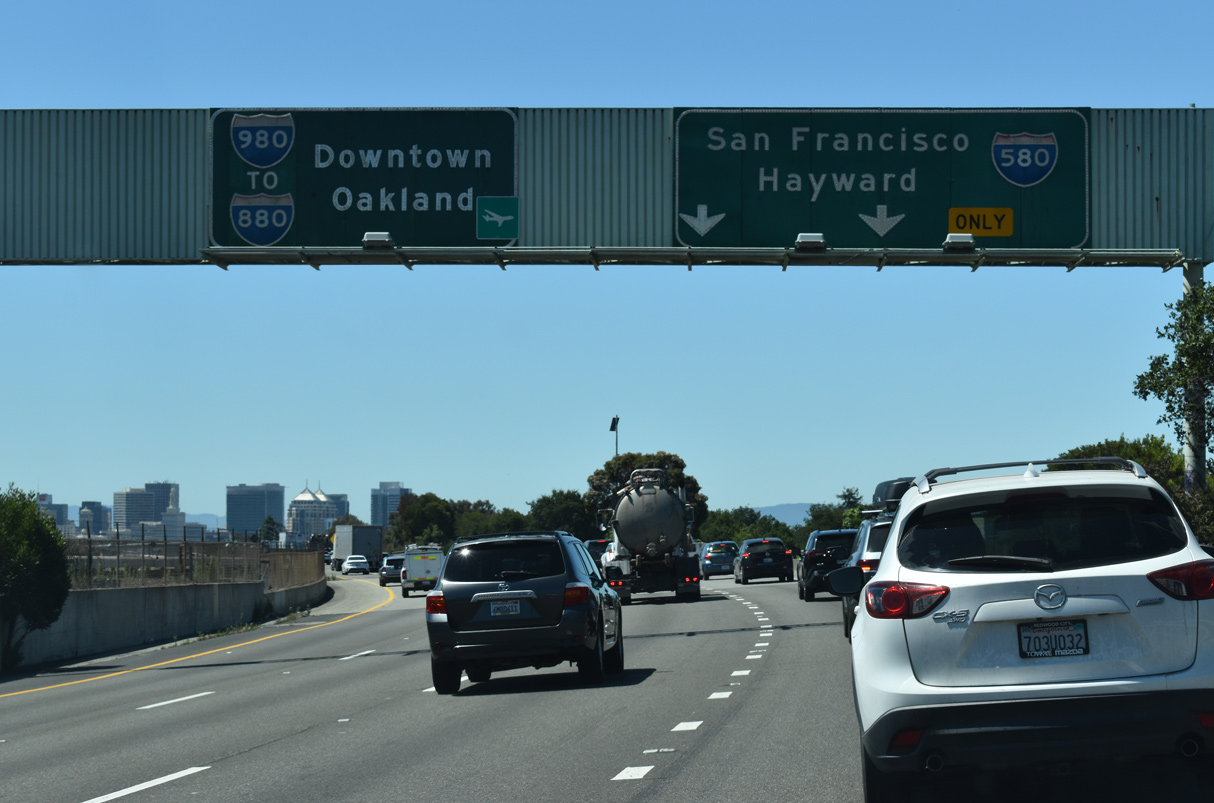

All traffic headed for I-580 west to the San Francisco-Oakland Bay Bridge or Richmond and I-580 east to Hayward departs from SR 24 west in unison for respective flyover ramps. SR 24 transitions to I-980 otherwise. 07/08/22

SR 24 west at I-580/980 - Oakland, CA

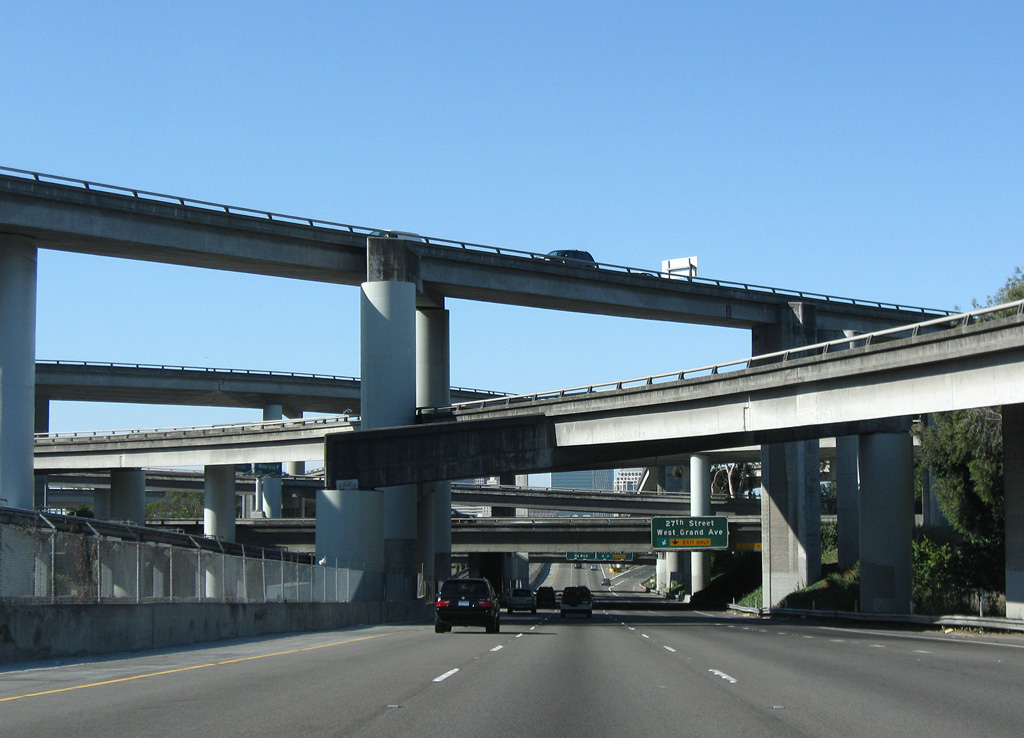

Entering the four level interchange with Interstate 580 (MacArthur Freeway) on SR 24 (Grove Shafter Freeway) west. The off-ramp (Exit 2A) to 27th Street branches away from the Interstate 980 mainline within the exchange. 07/11/18

I-580 East at SR 24 I-980

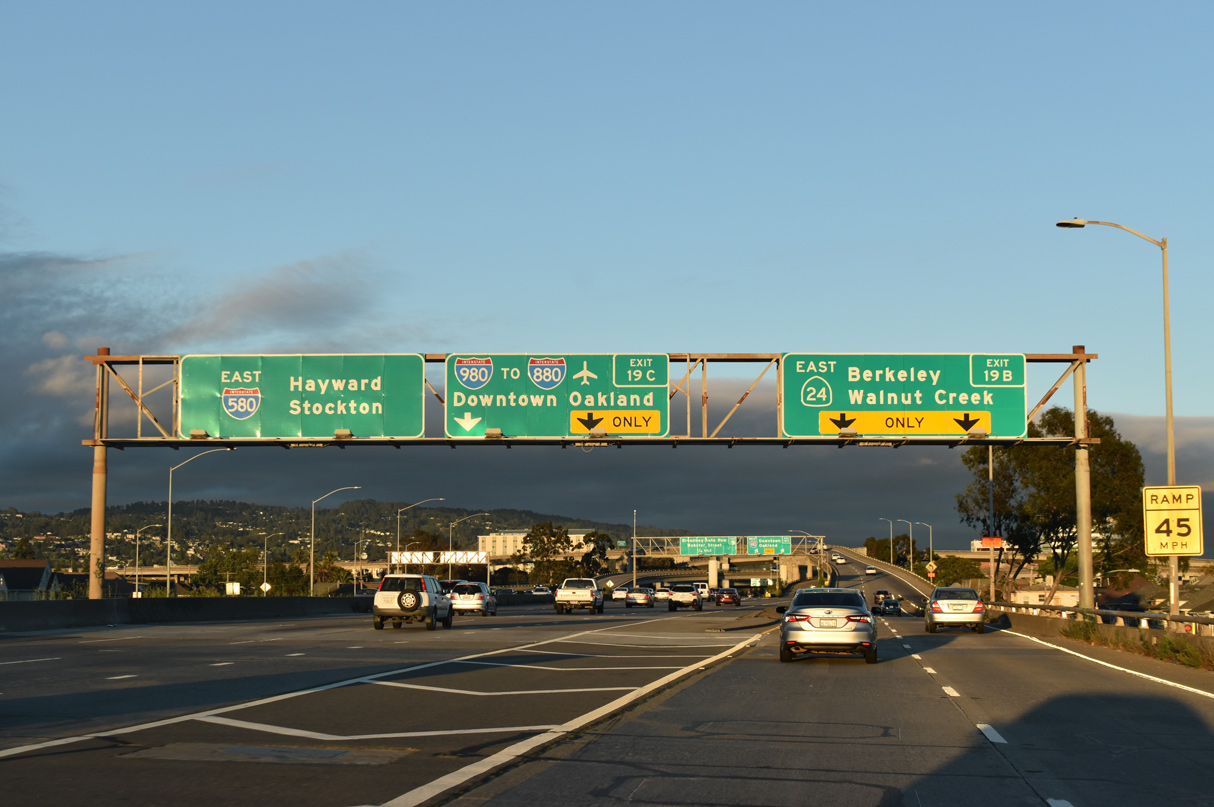

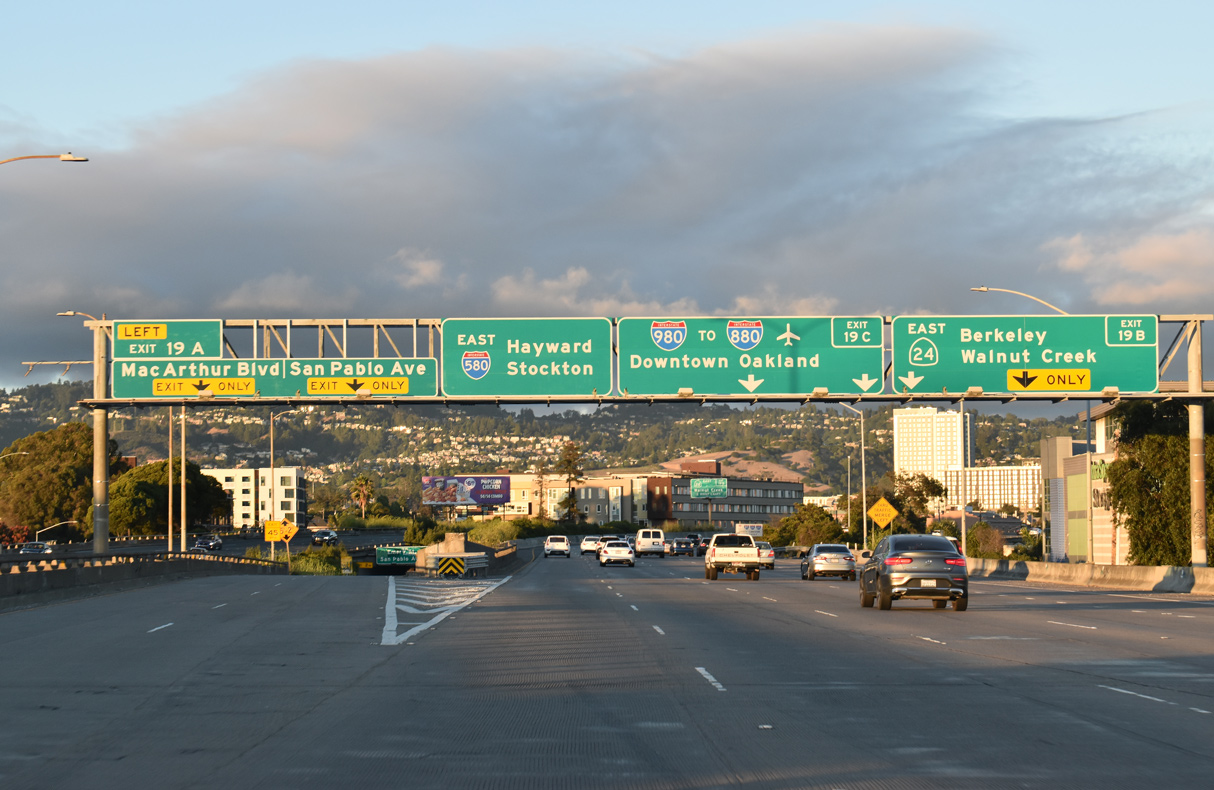

I-580 east at I-980/SR 24 - Oakland, CA

Leaving the MacArthur Maze interchange with I-880 (Nimitz Freeway) south and the San Francisco-Oakland Bay Bridge (I-80) west, Interstate 580 (MacArthur Freeway) advances 0.9 miles east from the wye with MacArthur Boulevard to I-980 west and SR 24 east. 07/06/22

I-580 east at I-980/SR 24 - Oakland, CA

A high flyover connects I-580 (MacArthur Freeway) east with SR 24 east across the Berkeley Hills. 07/06/22

I-580 east at I-980/SR 24 - Oakland, CA

A two lane flyover follows for Interstate 980 west to Downtown Oakland and I-880 (Nimitz Freeway) near Alameda. 07/06/22

Throwback – I-580 East at SR 24

I-580 east at I-980/SR 24 - 2015

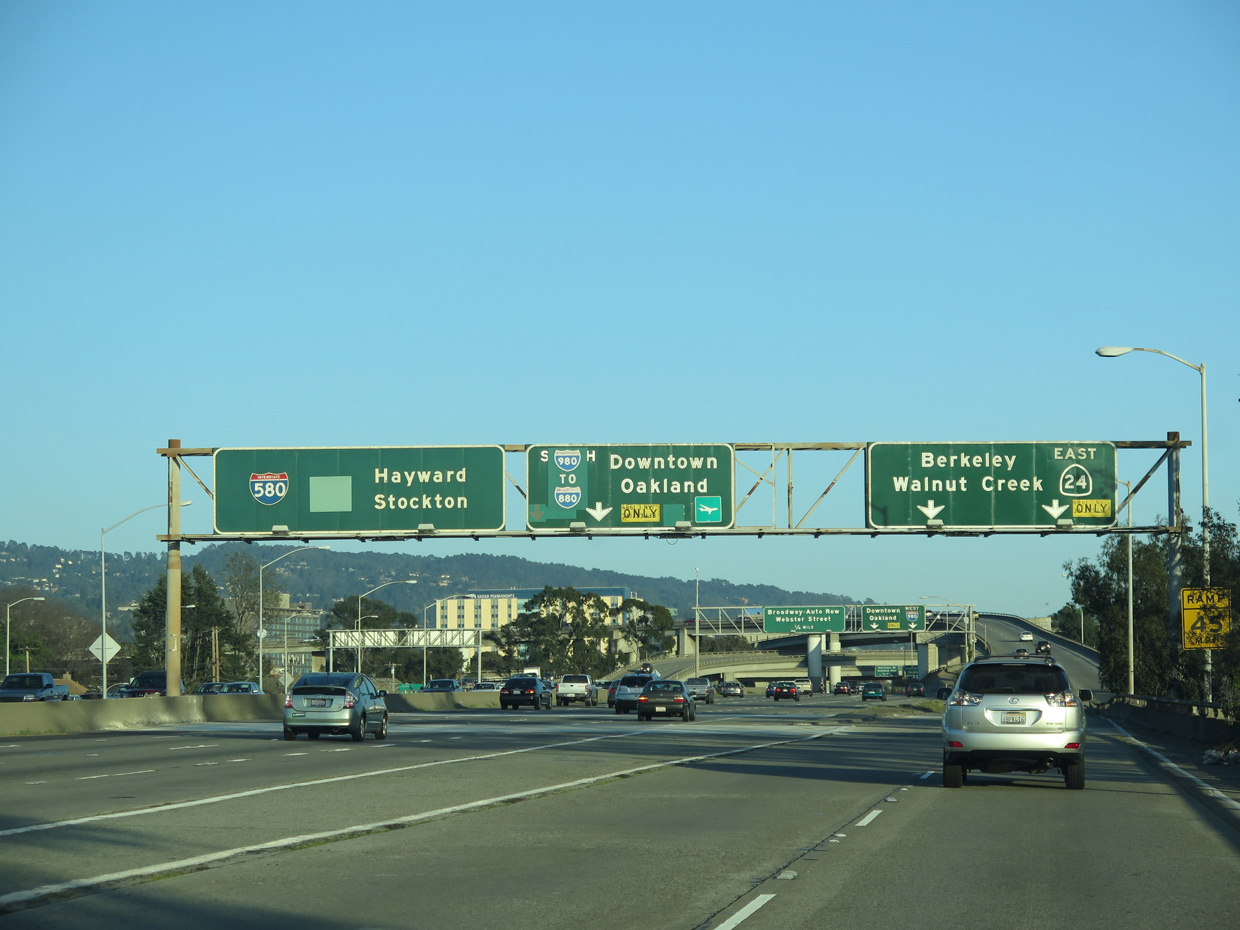

Replaced button copy on I-580 east at SR 24/I-980. SR 24 constitutes a busy commuter freeway from I-980 in Oakland and Berkeley to the East Bay cities of Lafayette, Walnut Creek and Concord. 03/07/15

I-580 east at I-980/SR 24 - 2013

The exit from I-580 east for Broadway and Webster Street departs from within the systems interchange at I-980/SR 24. 07/02/13

I-580 West at I-980 SR 24

I-580 west at I-980/SR 24

The first signs for I-980 and SR 24 along I-580 (MacArthur Freeway) westbound appear at the Adams Street overpass. The freeway mainline advances with three lanes to the Maze Interchange, where it converges with I-880 north and I-80 near the eastern approach to the San Francisco-Oakland Bay Bridge. These overheads were replaced in 2016. 11/26/04

I-580 west at I-980/SR 24

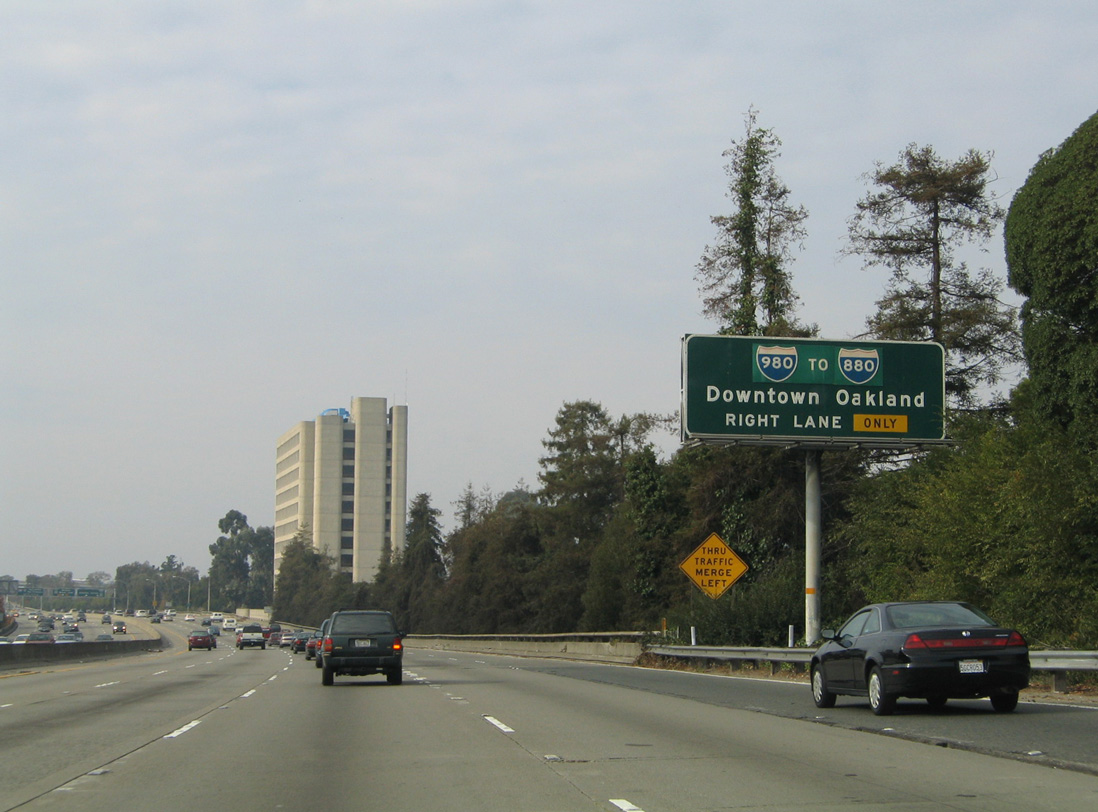

Interstate 980 links I-580 with Downtown Oakland. The connection with I-880 is limited to the Nimitz Freeway southbound. A replacement sign posted here in 2016 acknowledges the forthcoming exchange at Exit 19D. 11/26/04

I-580 west at I-980/SR 24

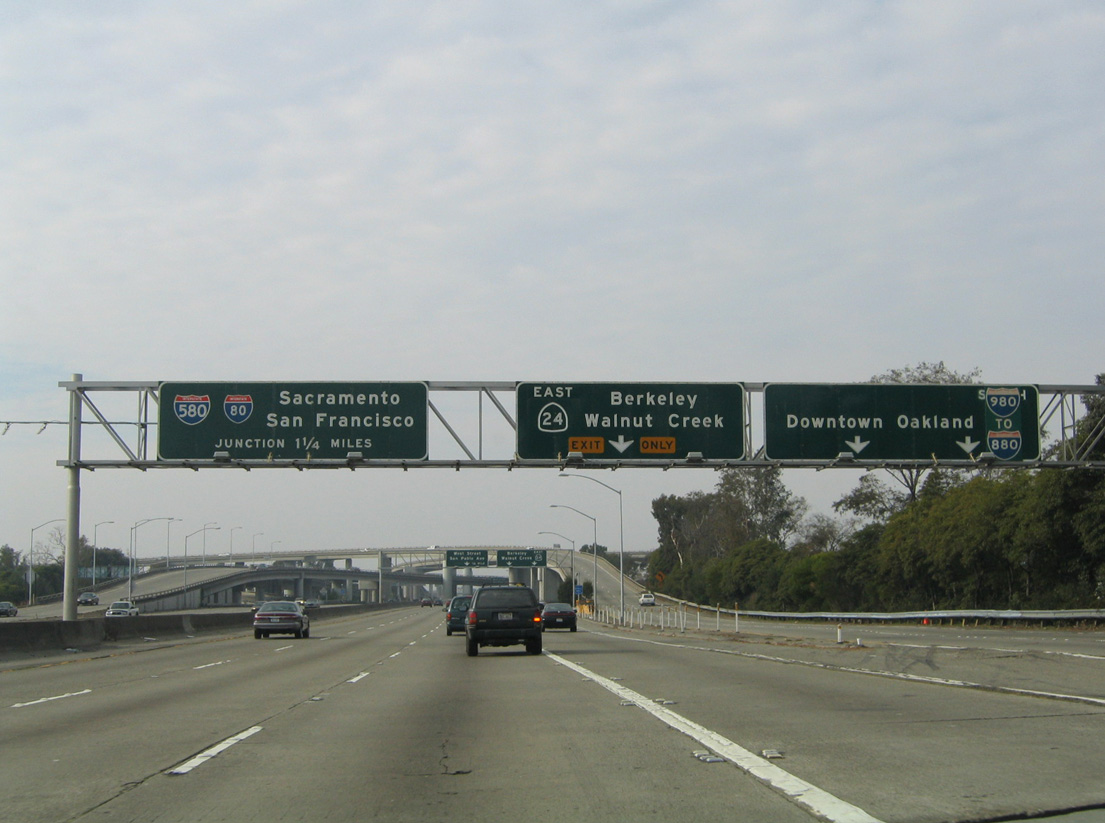

Westbound Interstate 580 (MacArthur Freeway) reaches Exit 19D for I-980 west to I-880 south for Oakland International Airport (OAK). The succeeding off-ramp connects with SR 24 east to Berkeley and Contra Costa County. 11/26/04

West End I-880 – Oakland, California

I-980 West at I-880

I-980 west at 18th St - Oakland, CA

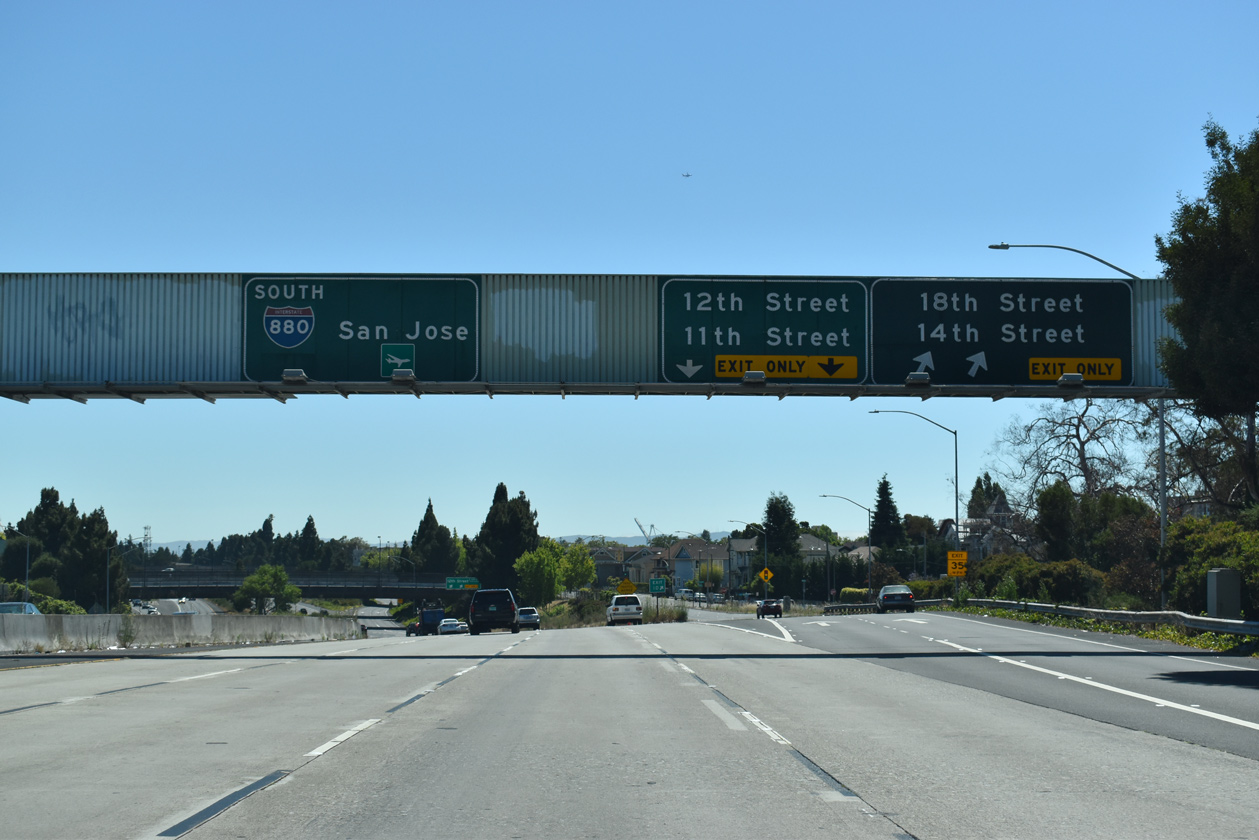

Back to back off-ramps connect Interstate 980 west with parallel Brush Street for the numbered street grid at Downtown Oakland. The freeway drops below grade ahead of Interstate 880 south. 07/11/18

I-980 west at I-880 - Oakland, CA

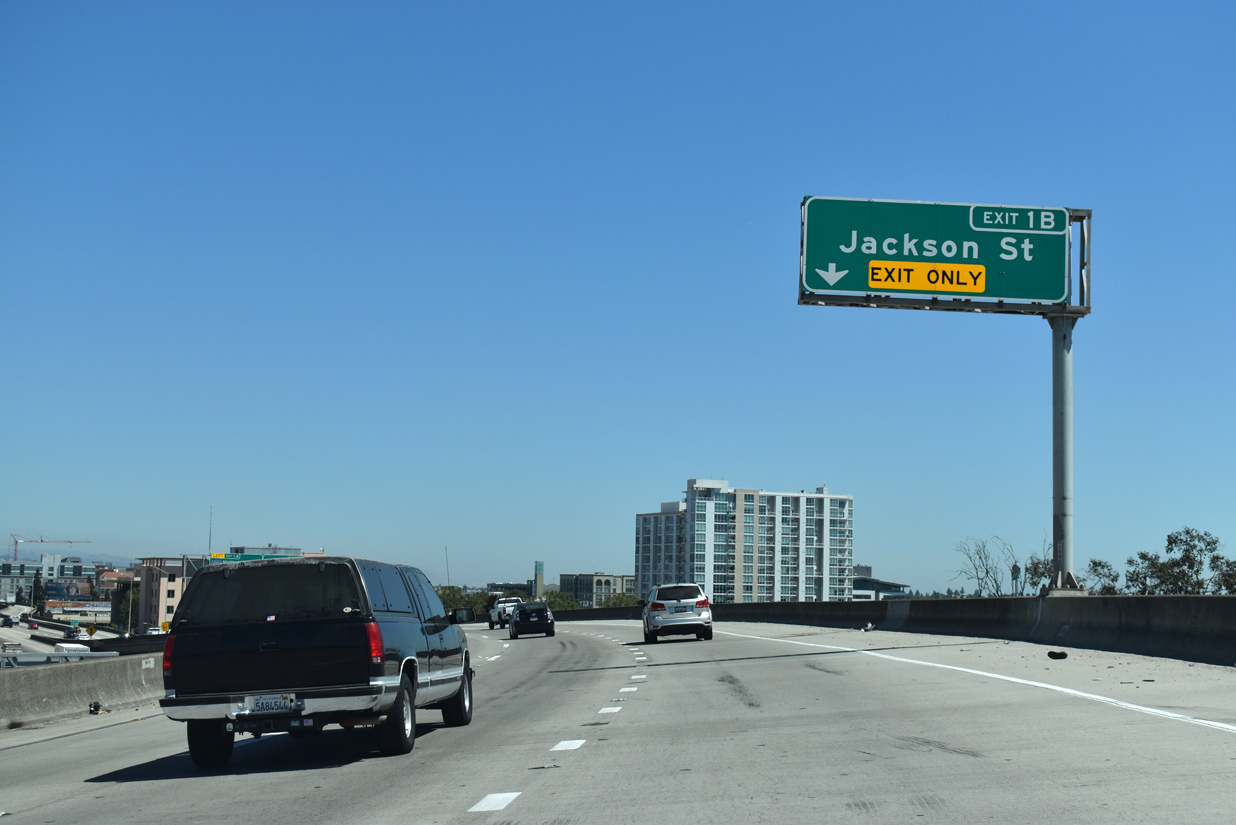

Interstate 980 makes a sweeping curve to the south from 11th Street to converge with I-880 (Nimitz Freeway) south beyond the Jackson Street exit ramp. 07/11/18

I-980 west at I-880 - Oakland, CA

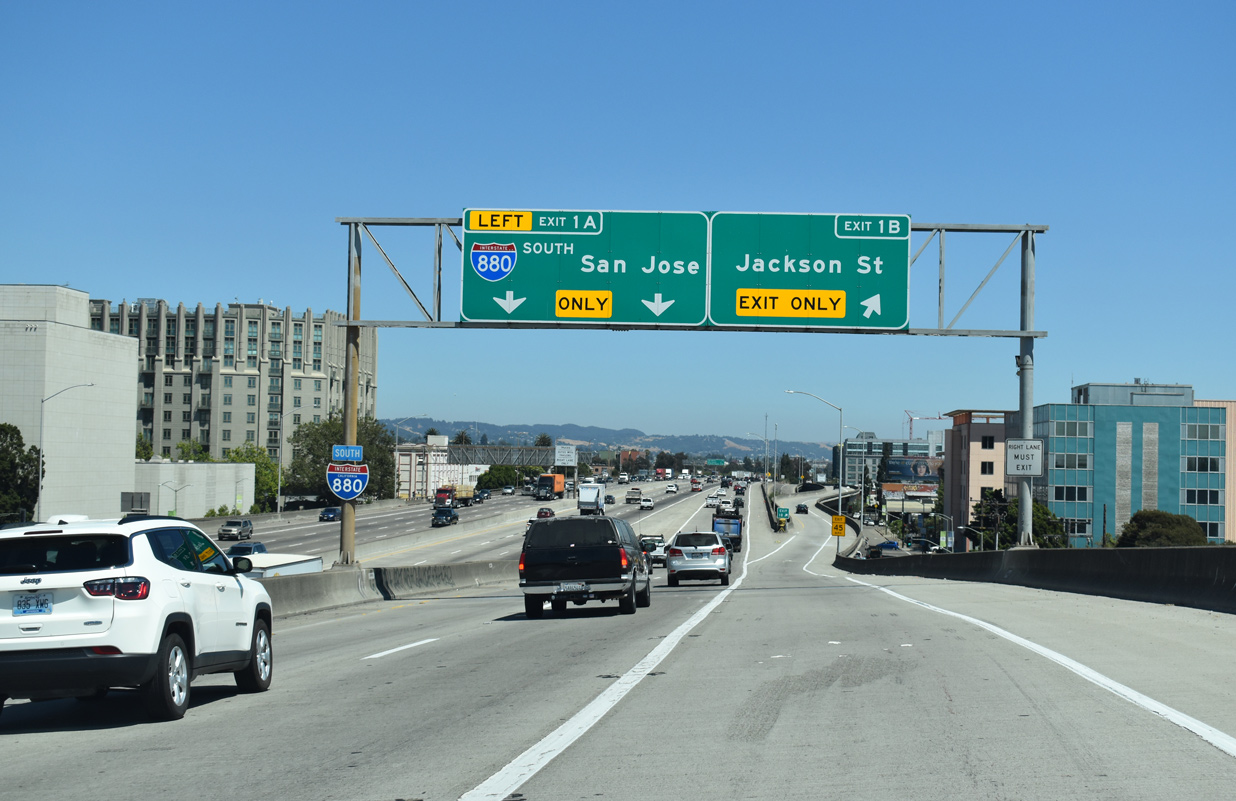

The three lane flyover carrying Interstate 980 west onto I-880 south separates with two lanes joining the Nimitz Freeway south toward San Jose (Exit 1A) and a lengthy off-ramp (Exit 1B) to 5th Street ahead of Jackson Street and Alameda. 07/11/18

I-880 South at I-980

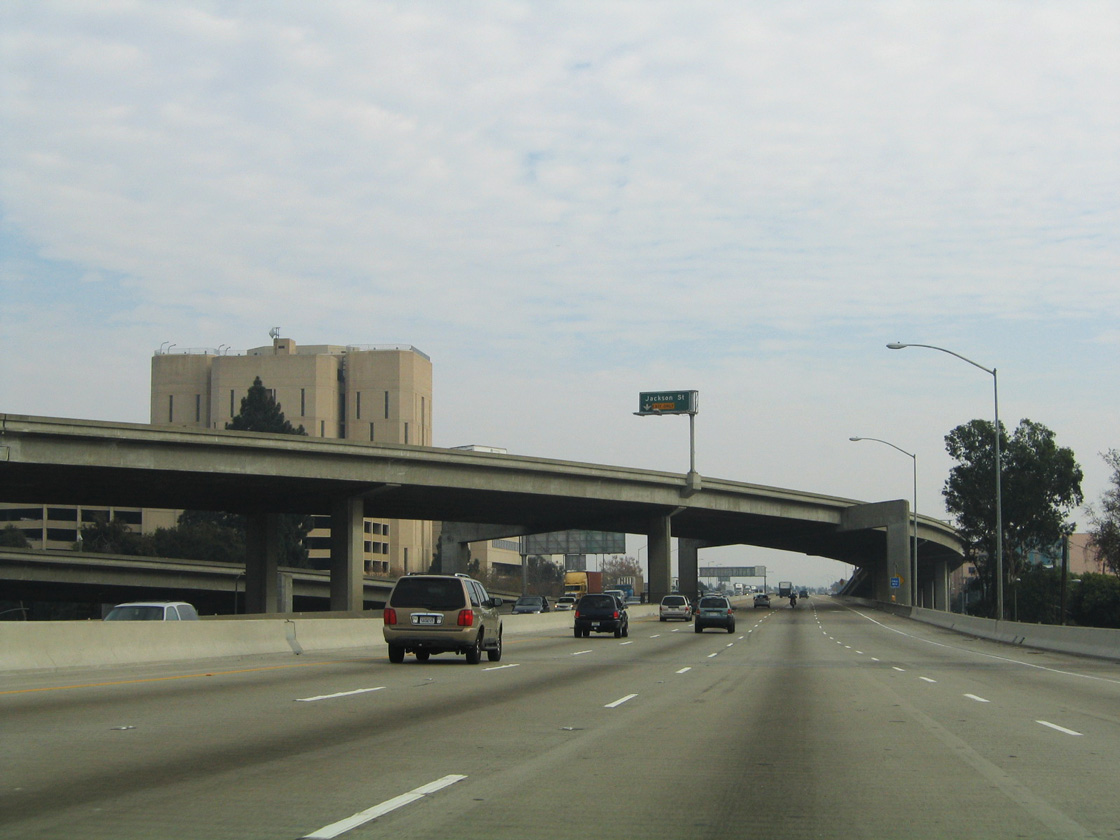

I-880 south at I-980 - Oakland, CA

Interstate 980 west defaults onto I-880 (Nimitz Freeway) south at a wye interchange. A lengthy Breezewood style connection can be made to access I-980 east via Union, 7th and Castro Streets. 11/26/04

I-880 North at I-980

I-880 north at I-980 - Oakland, CA

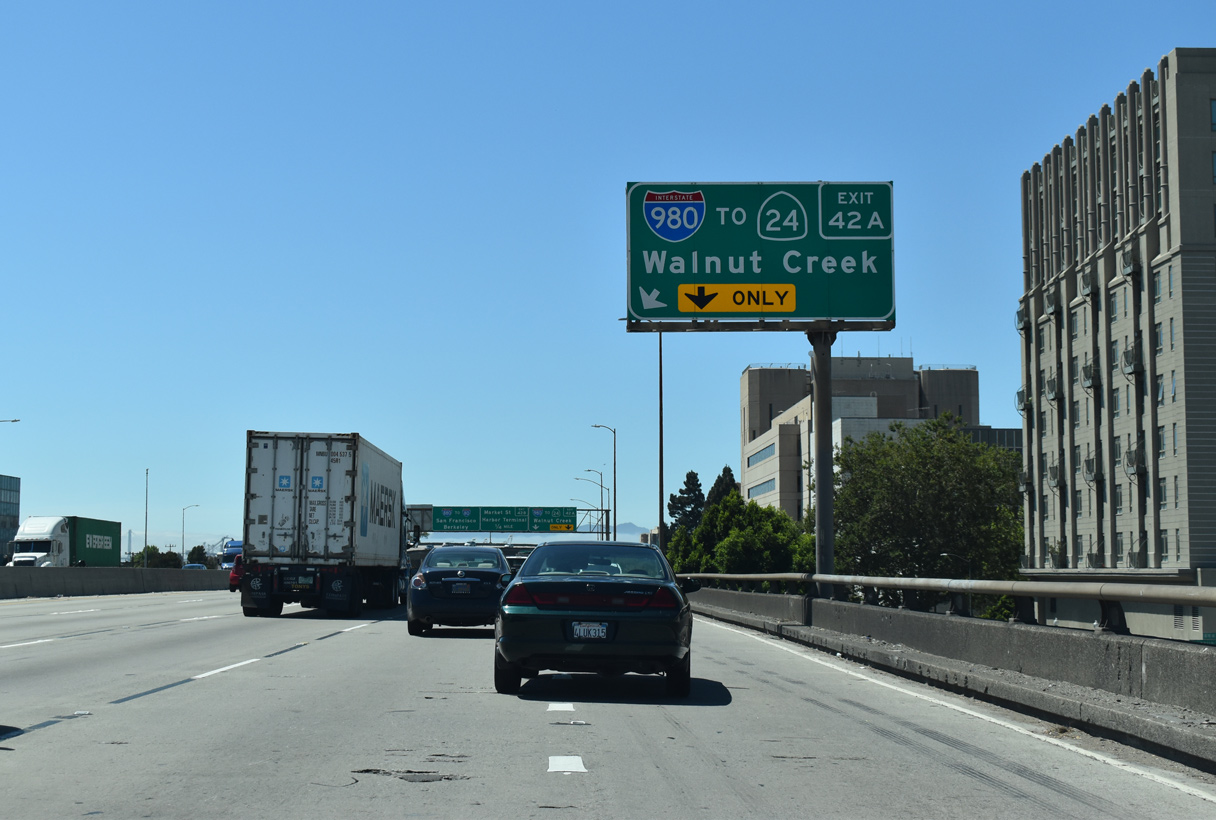

The entrance ramp from Jackson Street to I-880 adds an auxiliary lane north to Interstate 980 east (Exit 24A). 07/11/18

I-880 north at I-980 - Oakland, CA

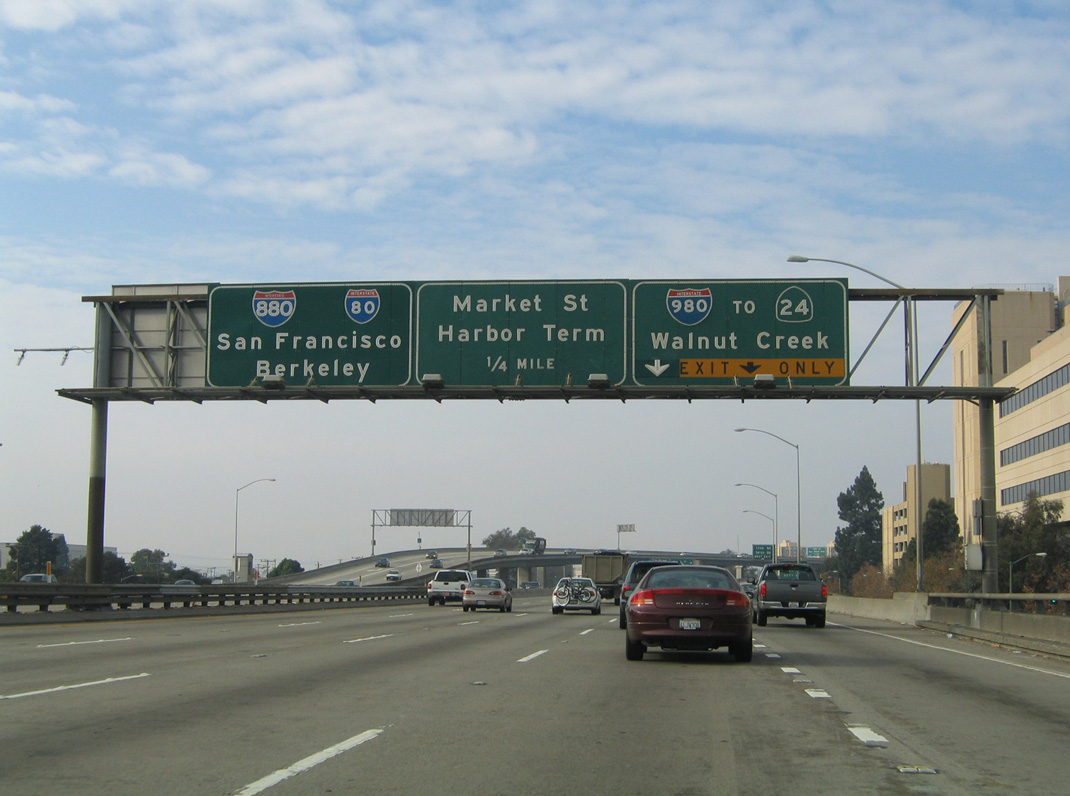

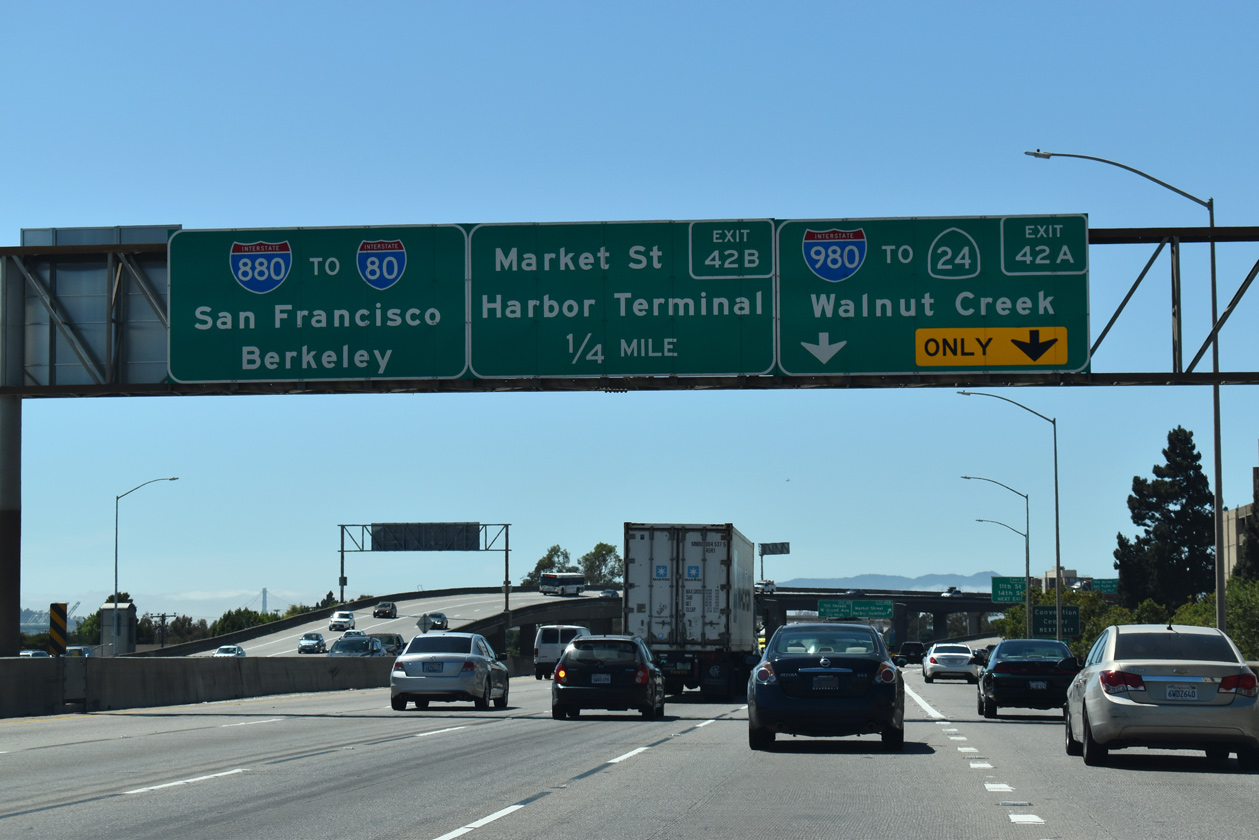

Northbound Interstate 880 (Nimitz Freeway) reaches the wye interchange (Exit 24A) for I-980 east to SR 24 (Grove Shafter Freeway) to Walnut Creek. 07/11/18

Throwback – I-880 North at I-980

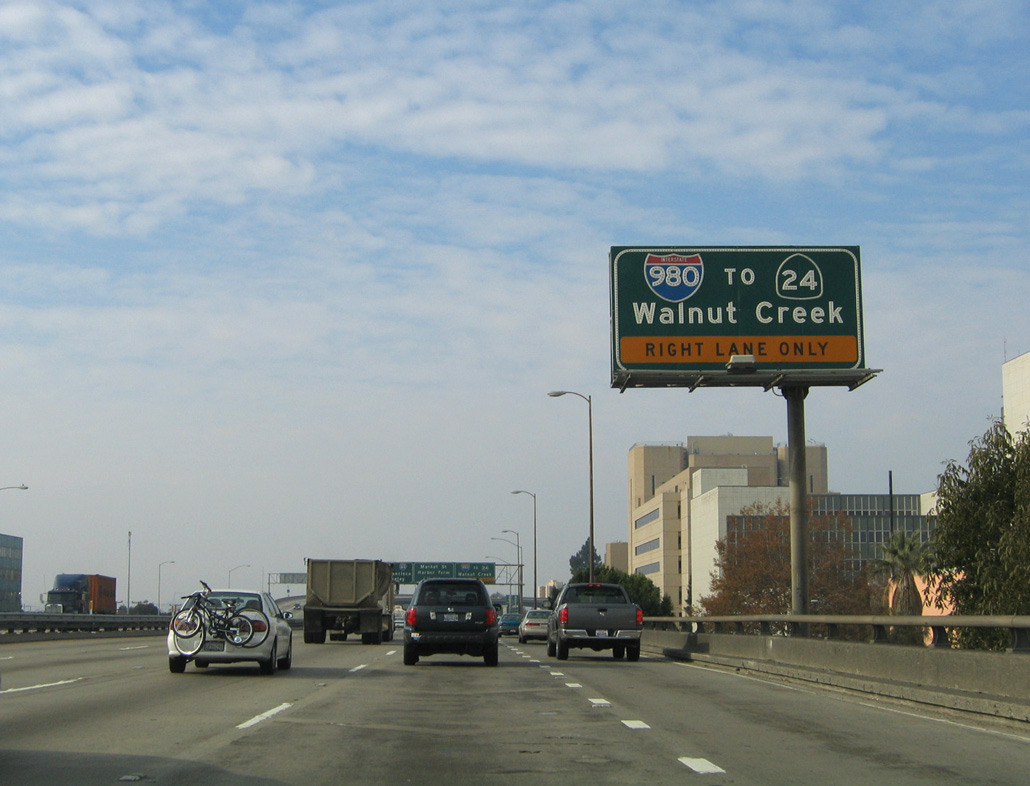

Northbound I-880 one mile south of I-980

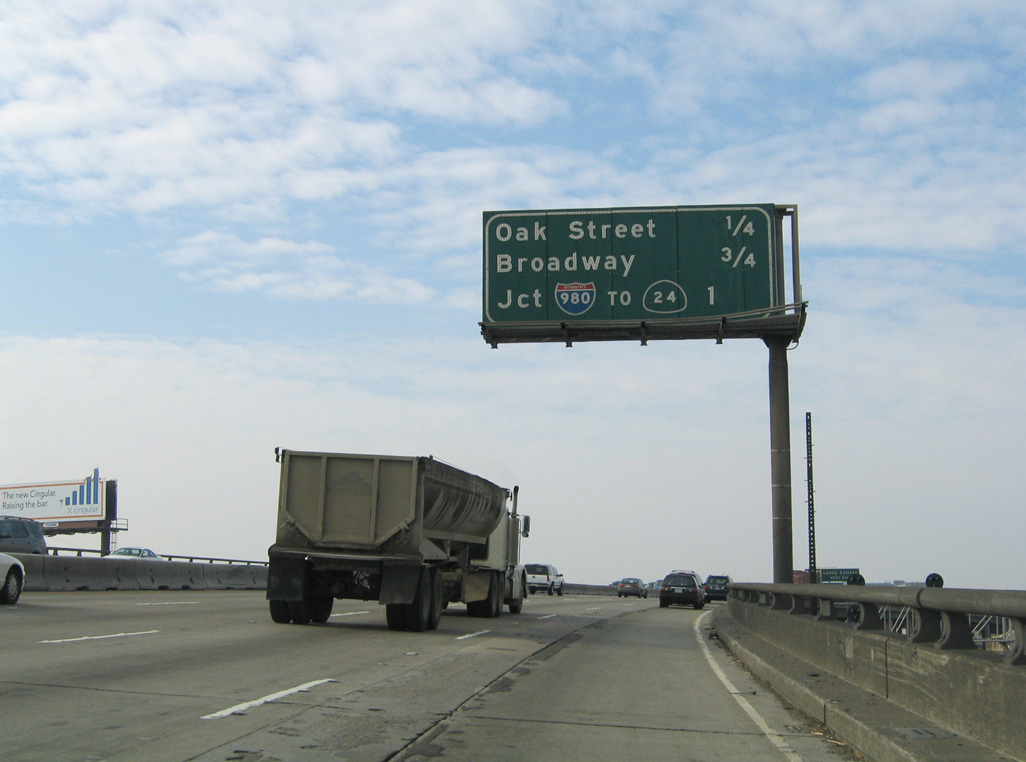

Reconstruction of the I-880 viaduct over 5th Avenue and the Union Pacific Railroad in 2011/12 included replacement of this interchange sequence sign one mile south of Interstate 980. 11/26/04

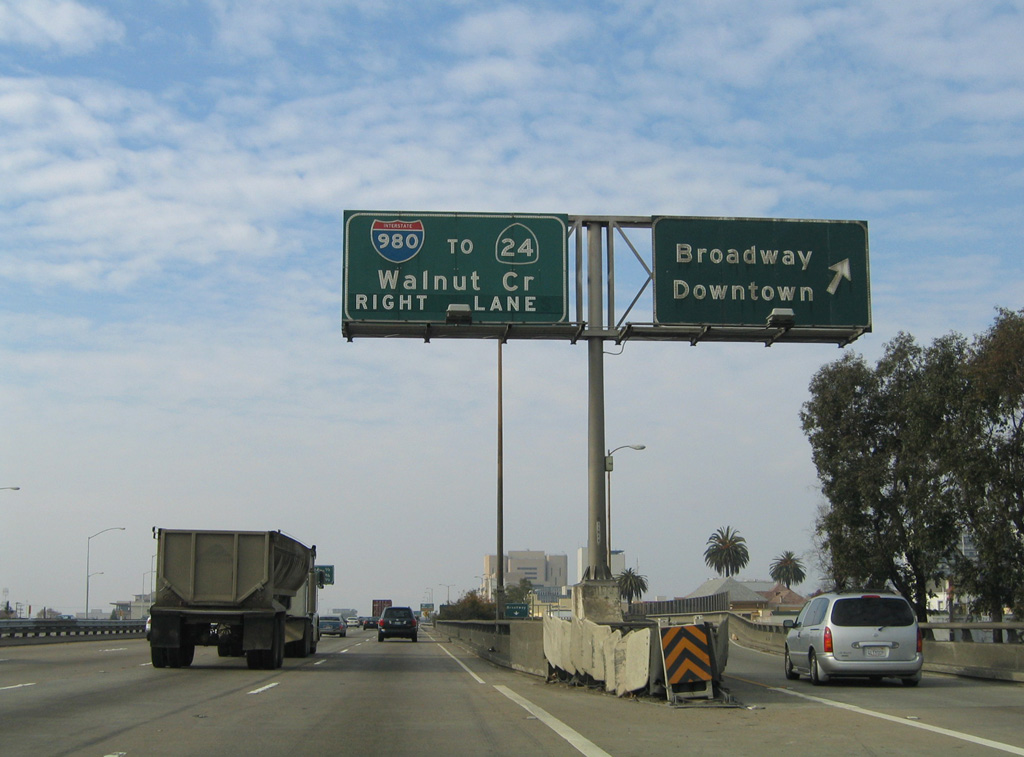

2017 sign replacements from Exit 41B northward to I-980 carbon copied the design of the previous button copy signs for both the Broadway off-ramp and I-980. 11/26/04

Sources:

  1. Application from the State Highway or Transportation Department of California for the Establishment of (I) Route 980. Submitted to the American Association of State Highway and Transportation Officials (AASHTO) on April 29, 1976.
  2. Eisenhower Interstate Highway System, Previous Facts of the Day. Federal Highway Administration (FHWA).
