Re: Signs With Design Errors
« Reply #50 on: July 14, 2012, 10:41:23 PM »



A pet peeve of mine, large capital letters with tiny lowercase letters.
The "Last Exit . . . " should also be a black text on yellow background panel.
Logged
Overhead Guide Signs:  The Traffic Engineer's Only True Canvas.

Scott5114

  • *
  • *
  • Offline Offline

  • Posts: 7644
  • Age: 28
  • Location: Norman, OK
  • Last Login: Today at 08:02:20 AM
    • Denexa 100% Plastic Playing Cards
Re: Signs With Design Errors
« Reply #51 on: July 15, 2012, 01:04:47 AM »

The "Last Exit . . . " should also be a black text on yellow background panel.

Green is technically correct. A toll road starting isn't really a hazard...
Logged

vtk

  • *
  • Offline Offline

  • Posts: 3903
  • she pronouns please

  • Age: -16
  • Location: Columbus
  • Last Login: Today at 12:18:20 AM
    • Vid's Space
Re: Signs With Design Errors
« Reply #52 on: July 15, 2012, 01:32:50 AM »

But it's not a destination or road name, so it should be in all caps anyway.
Logged
Look, over by the restrooms! It's a girl! It's a boy! No, it's Captain Enby!

…Do you think they're trying to decide which one to use?

Scott5114

  • *
  • *
  • Offline Offline

  • Posts: 7644
  • Age: 28
  • Location: Norman, OK
  • Last Login: Today at 08:02:20 AM
    • Denexa 100% Plastic Playing Cards
Re: Signs With Design Errors
« Reply #53 on: July 16, 2012, 12:41:20 AM »

But it's not a destination or road name, so it should be in all caps anyway.

Do you recall the way the MUTCD phrases this? I thought it was a "place name messages shall be in mixed case" but with no specification as to other messages... does it say someone "everything else shall be in SCREAMY CAPS"?
Logged

vtk

  • *
  • Offline Offline

  • Posts: 3903
  • she pronouns please

  • Age: -16
  • Location: Columbus
  • Last Login: Today at 12:18:20 AM
    • Vid's Space
Re: Signs With Design Errors
« Reply #54 on: July 16, 2012, 12:50:11 AM »

But it's not a destination or road name, so it should be in all caps anyway.

Do you recall the way the MUTCD phrases this? I thought it was a "place name messages shall be in mixed case" but with no specification as to other messages... does it say someone "everything else shall be in SCREAMY CAPS"?

Basically, but in reverse order from that:

Quote from: MUTCD 2009 Section 2A.13
Standard:
10 All sign lettering shall be in upper-case letters as provided in the "Standard Highway Signs and Markings" book (see Section 1A.11), unless otherwise provided in this Manual for a particular sign or type of message.

11 The sign lettering for names of places, streets, and highways shall be composed of a combination of lower-case letters with initial upper-case letters.

I'm not aware of any subsequent passages that override those standards.
Logged
Look, over by the restrooms! It's a girl! It's a boy! No, it's Captain Enby!

…Do you think they're trying to decide which one to use?

1995hoo

  • *
  • Offline Offline

  • Posts: 9099
  • Age: 45
  • Location: Fairfax County, Virginia
  • Last Login: Today at 08:49:09 AM
Re: Signs With Design Errors
« Reply #55 on: July 16, 2012, 10:40:18 AM »

The "Last Exit . . . " should also be a black text on yellow background panel.

Green is technically correct. A toll road starting isn't really a hazard...

I've seen quite a few black-on-yellow "Last Exit Before Toll" signs over the years, although I have no idea what the MUTCD might say about it. Most of the time, however, I've seen this notation as a banner on a larger sign (similar to an "Exit Only" or the like), not as a separate sign as shown here.

If the goal of the sign is to grab the attention of someone who might not realize there's a toll road ahead, the black-on-yellow is probably more eye-catching regardless of what the MUTCD might say.
Logged
"You know, you never have a guaranteed spot until you have a spot guaranteed."
—Olaf Kolzig, as quoted in the Washington Times on March 28, 2003,
commenting on the Capitals clinching a playoff spot.

"That sounded stupid, didn't it?"—Kolzig, to the same reporter a few seconds later.

Takumi

  • *
  • Offline Offline

  • Posts: 3318
  • #yogapantsbutnotstance

  • Age: 32
  • Location: Greater Richmond
  • Last Login: August 20, 2018, 11:01:44 PM
    • Flashing Lights (blog)
Re: Signs With Design Errors
« Reply #56 on: July 16, 2012, 02:47:11 PM »

I'm among the minority that likes unisigns, but not with the directional banner below the shield.



Misshapen shields. And VA 403 does not go north here (which is for another thread).


Non-cutout Interstate shield.
« Last Edit: July 16, 2012, 02:52:49 PM by Takumi »
Logged
Don't pick apart my vision of complete psychotic breakdown, please.  I'm trying to make a point here.

Insta | Kinja

Roadsguy

  • *
  • Offline Offline

  • Posts: 1008
  • Age: 19
  • Location: Here
  • Last Login: August 20, 2018, 09:27:16 PM
Re: Signs With Design Errors
« Reply #57 on: July 16, 2012, 05:19:42 PM »

The "Last Exit . . . " should also be a black text on yellow background panel.

Of course, I've never seen any button copy that's not white on anything else. Come to think of it, I don't remember seeing anything that's not white on green. Probably because reflectors on black doesn't work well.

When was that sign put up anyway?
Logged
After 95revive we need 76fix.

Make it happen!

agentsteel53

  • invisible hand
  • *
  • *
  • Offline Offline

  • Posts: 15374
  • long live button copy!

  • Age: 37
  • Location: San Diego, CA
  • Last Login: November 21, 2016, 09:58:39 AM
    • AARoads Shield Gallery
Re: Signs With Design Errors
« Reply #58 on: July 16, 2012, 06:19:45 PM »

there are many examples of white/black and yellow/black button copy here in CA.

also, brown/white and blue/white is very prevalent here, and the occasional red/white does exist, mainly in the form of old STOP signs.
Logged
live from sunny San Diego.

http://shields.aaroads.com

jake@aaroads.com

Brandon

  • *
  • Offline Offline

  • Posts: 9565
  • Mr. Accelerator is our friend; Mr. Brake is not.

  • Age: 41
  • Location: Joliet, IL
  • Last Login: Today at 06:25:47 AM
Re: Signs With Design Errors
« Reply #59 on: July 16, 2012, 06:57:28 PM »

The "Last Exit . . . " should also be a black text on yellow background panel.

Of course, I've never seen any button copy that's not white on anything else. Come to think of it, I don't remember seeing anything that's not white on green. Probably because reflectors on black doesn't work well.

When was that sign put up anyway?

Within the past four years or so.  When IDOT finished the widening of the Kingery Expressway and rebuilt the Torrance and IL-394/I-94 interchanges.
Logged
"If you think this has a happy ending, you haven't been paying attention." - Ramsay Bolton

Illinois: America's own banana republic.

Screw the KSA; Stand with Canada.

Alps

  • Everybody Obeys the Octagon
  • *
  • *
  • Offline Offline

  • Posts: 11736
  • Views expressed are my own, not my employer's.

  • Age: 35
  • Location: New Jersey
  • Last Login: Today at 07:44:34 AM
    • Alps' Roads
Re: Signs With Design Errors
« Reply #60 on: July 16, 2012, 07:42:19 PM »

The "Last Exit . . . " should also be a black text on yellow background panel.

Of course, I've never seen any button copy that's not white on anything else. Come to think of it, I don't remember seeing anything that's not white on green. Probably because reflectors on black doesn't work well.

When was that sign put up anyway?

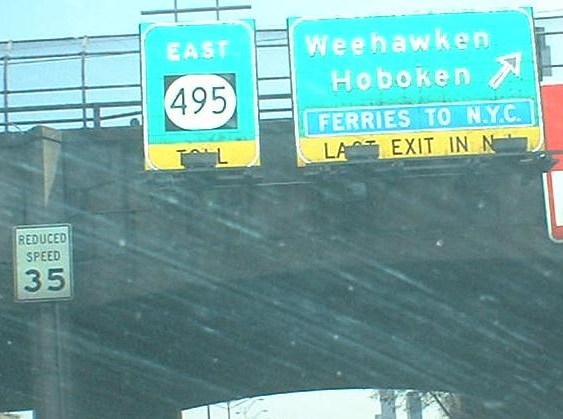

Well, you don't need to use button copy for EVERY legend:
Logged
~ Steve
http://www.alpsroads.net
I've listened many times, and I still can't figure out what the fox says.

"YOUR NAME IS NAMED AFTER A BUTT"

Central Avenue

  • *
  • Offline Offline

  • Posts: 453
  • Go Bucks!

  • Age: 28
  • Location: Columbus, OH
  • Last Login: July 31, 2018, 11:30:53 PM
Re: Signs With Design Errors
« Reply #61 on: July 20, 2012, 03:02:46 PM »

Here's a subtle one. I didn't even notice this until looking at the pictures after the fact:




Yep, on both I-75 signs, the top right corner is squared off as if to meet the exit tab, even though the exit tab is (correctly) left-aligned.
Logged

Alps

  • Everybody Obeys the Octagon
  • *
  • *
  • Offline Offline

  • Posts: 11736
  • Views expressed are my own, not my employer's.

  • Age: 35
  • Location: New Jersey
  • Last Login: Today at 07:44:34 AM
    • Alps' Roads
Re: Signs With Design Errors
« Reply #62 on: July 20, 2012, 08:33:55 PM »

@Ms. Central: I imagine the tabs were once incorrectly on the right, and then moved over when someone woke up to the MUTCD.
Logged
~ Steve
http://www.alpsroads.net
I've listened many times, and I still can't figure out what the fox says.

"YOUR NAME IS NAMED AFTER A BUTT"

national highway 1

  • *
  • Offline Offline

  • Posts: 1670
  • From Down Under

  • Age: 21
  • Location: Carlingford, NSW, Australia
  • Last Login: Today at 08:39:13 AM
Re: Signs With Design Errors
« Reply #63 on: July 20, 2012, 10:53:57 PM »

Helvetica on this TX Toll 1 shield?
Logged
"Set up road signs; put up guideposts. Take note of the highway, the road that you take." Jeremiah 31:21

Central Avenue

  • *
  • Offline Offline

  • Posts: 453
  • Go Bucks!

  • Age: 28
  • Location: Columbus, OH
  • Last Login: July 31, 2018, 11:30:53 PM
Re: Signs With Design Errors
« Reply #64 on: July 21, 2012, 01:14:21 AM »

@Ms. Central: I imagine the tabs were once incorrectly on the right, and then moved over when someone woke up to the MUTCD.

That was my guess too.

Especially because I noticed the sign for a left-hand exit is mounted on the right-hand side of the road.
Logged

OracleUsr

  • *
  • Offline Offline

  • Posts: 779
  • Age: 47
  • Location: North Carolina
  • Last Login: Today at 06:53:47 AM
Re: Signs With Design Errors
« Reply #65 on: July 21, 2012, 10:23:37 AM »

Perhaps.  TN didn't use directional tabbing until the late 1990's anyway, at least not between Hartford and Knoxville.
Logged
Anti-center-tabbing, anti-sequential-numbering, anti-Clearview BGS FAN

Ian

  • *
  • *
  • Offline Offline

  • Posts: 2702
  • Age: 23
  • Location: Orono, ME
  • Last Login: August 17, 2018, 06:28:32 PM
    • My Flickr
Re: Signs With Design Errors
« Reply #66 on: July 23, 2012, 12:54:19 PM »

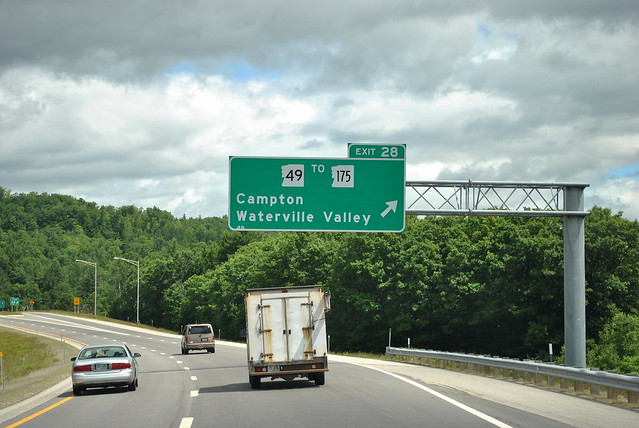

NHDOT loves to push the top control city all the way over to the left when there is an arrow involved.

Logged
-Ian L
Youtube l Flickr

PHLBOS

  • *
  • Offline Offline

  • Posts: 5645
  • Age: 52
  • Location: Greater Philly, PA
  • Last Login: August 16, 2018, 05:55:15 PM
Re: Signs With Design Errors
« Reply #67 on: July 23, 2012, 12:57:48 PM »

NHDOT loves to push the top control city all the way over to the left when there is an arrow involved.


Both PTC and PennDOT have been known to 'Left-Justify' control destinations when a Right-Arrow is involved as well on their BGS' for almost a decade.
Logged
GPS does NOT equal GOD

Takumi

  • *
  • Offline Offline

  • Posts: 3318
  • #yogapantsbutnotstance

  • Age: 32
  • Location: Greater Richmond
  • Last Login: August 20, 2018, 11:01:44 PM
    • Flashing Lights (blog)
Re: Signs With Design Errors
« Reply #68 on: July 30, 2012, 06:22:20 PM »

Off-center text.


Weird-looking gore sign.


Excessively bordered exit tab solutions.


White banner on an interstate shield.


This gore sign looks pretty funky too.


But this one was the worst of the bunch.
Logged
Don't pick apart my vision of complete psychotic breakdown, please.  I'm trying to make a point here.

Insta | Kinja

CentralCAroadgeek

  • *
  • Offline Offline

  • Posts: 520
  • Golden State 101

  • Age: 19
  • Location: Salinas, CA
  • Last Login: August 08, 2018, 01:33:46 AM
Re: Signs With Design Errors
« Reply #69 on: July 30, 2012, 07:11:02 PM »

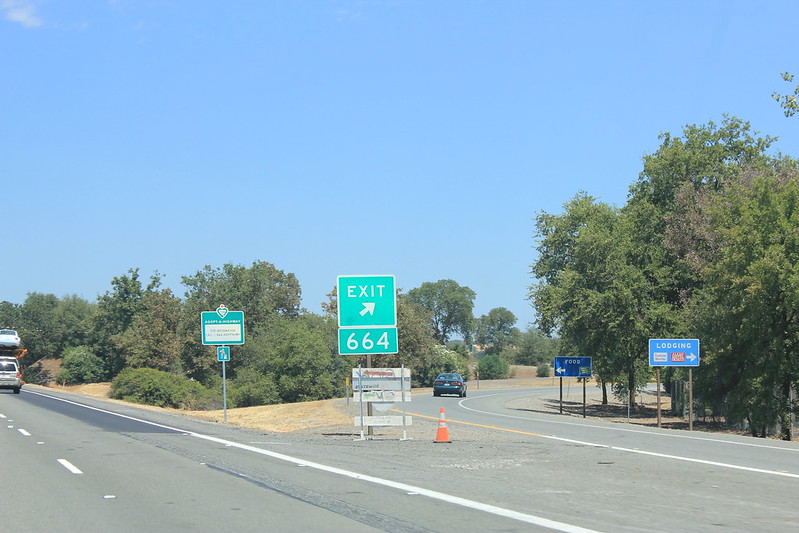

Texas-style exit tab, you're doing it wrong!

On I-5 north in Cottonwood.
Logged

national highway 1

  • *
  • Offline Offline

  • Posts: 1670
  • From Down Under

  • Age: 21
  • Location: Carlingford, NSW, Australia
  • Last Login: Today at 08:39:13 AM
Re: Signs With Design Errors
« Reply #70 on: July 30, 2012, 08:35:14 PM »

This gore sign looks pretty funky too.

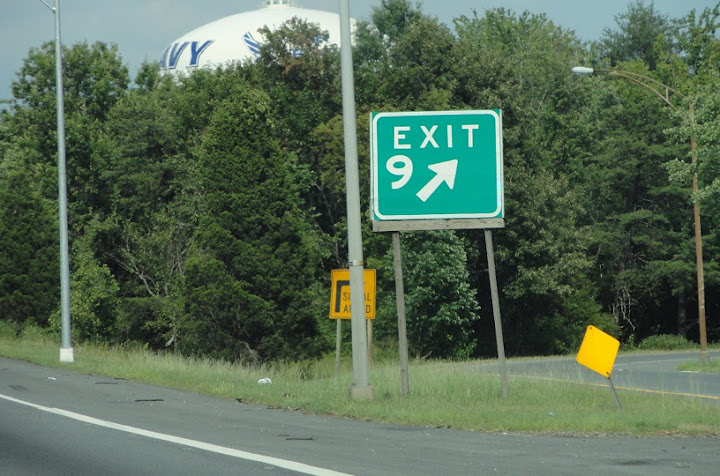

I guess it used to be a conventional exit gore sign, the '9' was added later.
Texas-style exit tab, you're doing it wrong!

On I-5 north in Cottonwood.
The same situation here, except they added a '664' plate below the gore point sign.
Logged
"Set up road signs; put up guideposts. Take note of the highway, the road that you take." Jeremiah 31:21

PurdueBill

  • *
  • Offline Offline

  • Posts: 1149
  • Last Login: August 19, 2018, 12:26:45 AM
Re: Signs With Design Errors
« Reply #71 on: July 30, 2012, 09:09:03 PM »

Two instances of upper and lowercase letters trading places--how does this happen?  It's not button copy.  Demountable?



Seen before around here, I think--but maybe it was I-79/I-90 interchange specimens before.  Tiny lowercase with large initial capitals.  Stop doing this!

Logged

Compulov

  • *
  • Offline Offline

  • Posts: 201
  • Age: 39
  • Location: Newtown, PA
  • Last Login: August 17, 2018, 12:15:59 PM
Re: Signs With Design Errors
« Reply #72 on: July 30, 2012, 09:17:45 PM »

One of the BGS' on the approach ramp to I-95 from PA 413 in Bristol (Exit 40) has a lower-case u for the the word SOuTH for I-95 South.

I hate you :P
I go up that ramp every day and never noticed it until you said something. Now I can't help but stare at it every single day.
But really... I swear it looks more like an upside-down n than a lower case u, but I'm usually going too fast to merge into the 95N lane to pay close attention.
Logged

Central Avenue

  • *
  • Offline Offline

  • Posts: 453
  • Go Bucks!

  • Age: 28
  • Location: Columbus, OH
  • Last Login: July 31, 2018, 11:30:53 PM
Re: Signs With Design Errors
« Reply #73 on: July 31, 2012, 12:36:13 AM »

Two instances of upper and lowercase letters trading places--how does this happen?  It's not button copy.  Demountable?



I could almost excuse the O/o swap as a simple case of inattentiveness...but a capital A and a lowercase a don't even look alike! That's entirely inexcusable.
Logged

jeffandnicole

  • *
  • Online Online

  • Posts: 8819
  • Age: 43
  • Location: South Jersey
  • Last Login: Today at 09:28:37 AM
Re: Signs With Design Errors
« Reply #74 on: July 31, 2012, 08:35:26 AM »

The Exit 53A gore sign on Rt. 55 South in NJ had been replaced with a Exit 53 Exit sign at one point...even though it should have remained 53A.  It appeared someone just took an ordinary 4 inch "A" sticker that you can get in a pack of stickers at walmart or craft stores and stuck it to the sign.

It remained that way for years.  I think a proper sign has finally been installed...but I can't remember!
Logged




Opinions expressed here on belong solely to the poster and do not represent or reflect the opinions or beliefs of AARoads, its creators and/or associates.
