Outer Banks, NC

The state of North Carolina successfully applied for future Interstate status for the U.S. 17 corridor to AASHTO on May 24, 2016. Envisioned as a 190 mile plus route, Interstate 87 overall will overlay U.S. 64 east from I-40 and I-440 at Raleigh to Williamston, and U.S. 17 northeast from Williamston to Windsor, Edenton, Hertford and Elizabeth City. When the east end will tie into I-64 remains uncertain, as a number of environmental studies will be required to determine a route through Chesapeake, Virginia.

Future I-87 signs were subsequently added at the beginning of various freeway segments along U.S. 17, including bypasses of Windsor, Edenton and Elizabeth City. These sections cannot be signed as Interstate 87 until they connect with a portion of the existing Interstate system.

Construction on the Elizabeth City bypass kicked off in March 1999. The initial time table called for a completion date of June 30, 2002. However the timeline did not take into consideration the redesign of the Commerce Drive overpass and the time necessary to acquire structural street for the span located near the bypass north end. Costs for the project rose from an initial estimate of $38.1 million to $41 million.⁷

A ribbon cutting ceremony took place for the 10.9-mile long freeway on December 3, 2002.⁸ The lone interchange along the bypass connects with Halstead Boulevard Extension. The four-lane arterial extends west from U.S. 17 (Hughes Boulevard) at N.C. 344 in Elizabeth City to the freeway at Exit 258. The 3.7-mile alignment debuted to motorists on May 2, 2004, four months ahead of schedule.⁹

The largest city in northeastern North Carolina, Elizabeth City, or E-City for short, resides along the Pasquotank River north of Albemarle Sound. U.S. 17 is the main highway to E-City, linking it north with Hampton Roads, Virginia and west to Edenton. The corridor doubles as Future Interstate 87, a route proposed north to I-64 in Chesapeake and southwest to Rocky Mount and Raleigh.

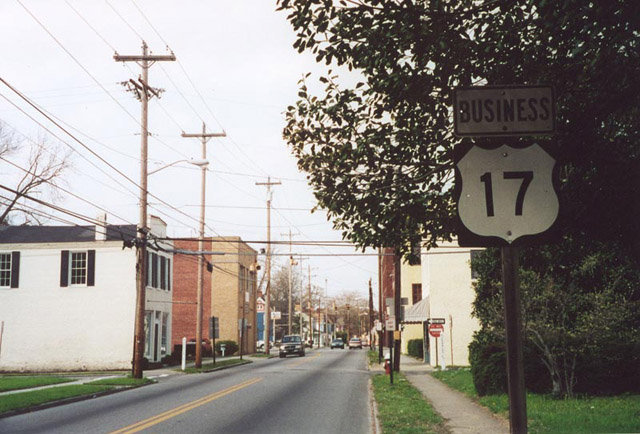

U.S. 17 Business in Elizabeth City, North Carolina. April 2001

Through Elizabeth City, US 17 separates into three branches. U.S. 17 Bypass circumvents the city along a freeway to the west. The U.S. 17 mainline loops east into E-City along an arterial bypass west and north of Downtown. U.S. 17 Business navigates through the city center along Ehringhaus and Road Streets on what was the original alignment of U.S. 17.

Signed as Future I-87, the Elizabeth City bypass opened in December 20022 to the west of the city limits. When completed, the U.S. 17 Bypass designation shifted to the freeway, and the previous U.S. 17 Bypass route was redesignated as the mainline of U.S. 17.2 With a 70 mile per hour speed limit, the 11-mile freeway provides a high-speed bypass for long distance travelers between Hampton Roads, Virginia and Williamston.

Providing the gateway to the Outer Banks from Raleigh and Rocky Mount to the west, U.S. 64 traverses a mixture of agricultural and wetland areas from Plymouth east to Manns Harbor. East from Columbia, U.S. 64 reduces from a five-lane arterial to a two-lane highway, including the lengthy Lindsay C. Warren Bridge across the Alligator River. Beyond the eastern terminus of U.S. 264, U.S. 64 expands to four lanes leading into Manns Harbor.

U.S. 64 partitions with U.S. 64 Bypass at Manns Harbor. The mainline loops northward across Croatan Sound on the William B. Umstead Bridge toward the north end of Roanoke Island. The route returns south through Manteo town center. U.S. 64 Bypass bee lines 5.9 miles east along a controlled access route, including the Virginia Dare Memorial Bridge, to reconvene with U.S. 64 at N.C. 345. Costing $91 million to construct and representing the state's longest bridge, the Virginia Dare Memorial Bridge opened to traffic on August 16, 2002.⁶

East from Roanoke Island, U.S. 64 takes a four-lane causeway to the span over Roanoke Sound. The route expands into a five-lane arterial from Pond Island to Cedar Island and the east end at U.S. 158 (Croatan Highway) and N.C. 12 (Virginia Dare Trail) at Whalebone Junction.

U.S. 64 is a four-lane freeway from Knightdale east to Williamston and from Pineridge to Columbia. The freeway east to Williamston is a part of Future Interstate 87. A $356 to $399 million project will widen the remaining two-lane sections of U.S. 64 across Tyrrell and Dare Counties. Included is the replacement of the Lindsay C. Warren Bridge across the Alligator River, and the realignment of U.S. 64 onto the Dare Northern Bypass. A Draft Environmental Impact Statement for the 27.3-mile upgrade was approved in January 2012.

The lone highway connecting the Outer Banks to the North Carolina mainland from the north is U.S. 158. A five-lane arterial with a varying speed limit of 45-55 mph, U.S. 158 Croatan Highway travels southeast from Barco to the Wright Brothers Memorial Bridge. With an elevation generally ranging from 1 to 5 feet above sea level, the narrow finger of land separates Great Swamp to the west from Coinjock Bay and Maple Swamp to the east.

The Intracoastal waterway cuts across the peninsula at Coinjock. There U.S. 158 makes an S-curve across a high rise bridge. The 2,507 foot long span opened to traffic in 1986.¹² It replaced an adjacent draw bridge to the east. U.S. 158 heads south from there to the communities of Bertha, Grandy, Jarvisburg, Olds and Powells Point with waters of the North River and Currituck Sound spreading to the west and east respectively.

U.S. 158 curves east at Point Harbor to span Currituck Sound on the Wright Brothers Memorial Bridge. The nondescript two-lane bridges extend east from Sampson Point to an eastern landing on Bodie Island ahead of Jean Guite Creek. The eastbound bridge was built in 1966. It was rehabilitated in 1997, following the 1995-completion of the companion westbound span.¹³

U.S. 158 Business - 1987 NC Official Highway Map

U.S. 158 in 1946

Until 1988, U.S. 158 partitioned between Business and Bypass designations along Bodie Island. U.S. 158 Business followed what is now N.C. 12 along Virginia Dare Trail south to Whalebone Junction. Croatan Highway, a five-lane arterial to the west, opened in 1960 as U.S. 158 Bypass. OBX locals refer to old U.S. 158 Business (N.C. 12) as "The Beach Road," while U.S. 158 is still dubbed "The Bypass."

Mileposts posted along U.S. 158 increase in count south from the Wright Brothers Memorial Bridge to the eastern terminus at Whalebone Junction. Typical of coastal communities with long strips of development, these aid in motorist navigation for locating businesses, attractions and residential areas along Croatan Highway. An attraction near Milepost 12 in Nags Head is Jockeys Ridge State Park. The park surrounds an area of large sand dunes that reshape themselves every year with the changing winds. Visitors to the park may enjoy in hang gliding, hiking and sightseeing.

Prior to 1940, U.S. 158 ended at U.S. 58 in Franklin, Virginia, with the route east from Murfreesboro to Barco assigned as North Carolina 30. The eastern extension of U.S. 158 to the Outer Banks included a fish-hook shaped route across Roanoke Sound to an end at Manteo. This changed in 1951, with U.S. 64 lengthened east from Fort Landing to Whalebone Junction.

West of Barco and North Carolina 168, U.S. 158 reduces to two lanes en route to Elizabeth City. U.S. 158 crosses the Pasquotank River on a pair of two-lane draw bridges to the north side of Downtown Elizabeth City. The US route extends west along a four-lane boulevard (Elizabeth Street) to U.S. 17 (Hughes Boulevard).

While U.S. 17 Business provides a cut off north to U.S. 17/158 along Road Street, U.S. 158 remains routed west on Elizabeth Street and then northeast along Hughes Boulevard as part of a Truck route across Elizabeth City. All U.S. 158 reassurance shields along this stretch include Truck banners. U.S. 17 & 158 otherwise overlap for 11.1 miles north to Morgans Corners.

U.S. 264 navigates along a rural route east from Pantego to Enghelhard and north along Pamlico Sound to end at U.S. 64 in Manns Harbor. With completion of the Virginia Dare Memorial Bridge taking U.S. 64 east across Croaton Sound, U.S. 264 was truncated from its concurrency with U.S. 64 east between Manns Harbor and Nags Head. AASHTO approved the formal request to eliminate U.S. 264 east of Manns Harbor on May 30, 2003.

Known as Virginia Dare Trail between Southern Shores and Whalebone Junction, North Carolina Highway 12 straddles the coastline along a two-lane alignment through Nags Head, Kill Devil Hills and Kitty Hawk. With a 35 mph speed limit, the beach road is home to a number of condominiums, hotels, vacation rentals, restaurants and other commercial establishments.

Beyond U.S. 158, NC 12 spurs 21.3 miles north along a narrow strip of land between Currituck Sound and the Atlantic Ocean through to Currituck County. Following Ocean Trail by a number of beach homes and condominiums, the two-lane road serves the communities of Southern Shores, Duck and Corolla. The state route ends at Coral Lane, a short distance north of the Currituck Beach Lighthouse at Corolla Light.

SR 1437 extends 0.6 miles northward from N.C. 12 in Corolla to North Beach Access Road, a paved road to the Ocean Hills community. The access road ends at the beach, which is driveable by four-wheel drive vehicles northward from there to the community of Carava.

South of Whalebone Junction, NC 12 enters Cape Hatteras National Seashore via Cape Hatteras National Park Road. Posted with a 55 mile per hour speed limit, the two lane highway stays west of built up areas along Bodie Island through to Bodie Island Lighthouse Road. South of the U.S. Coast Guard Station, NC 12 makes a sweeping S-curve across Oregon Inlet on the Herbert C. Bonner Bridge.

Herbert C. Bonner Bridge

Opened in 1964, the Herbert C. Bonner Bridge spanning Oregon Inlet measured 12,866 feet in length with a 27.9 foot wide deck accommodating two lanes of travel. Due to the rising costs of controlling beach erosion and damage caused by nor'easters and hurricanes, officials undertook a $9.5 million long range study to address these issues. Possibilities discussed including building a new 17 mile bridge to bypass three beach erosion problem areas on the northern end of the Hatteras National Seashore area and within Pea Island National Wildlife Refuge. This $260 million alternate contrasted with a more modest 6-mile bridge suggested by the the U.S. Fish and Wildlife Service.¹

The 2003 landfall of Hurricane Isabel further increased erosion issues along North Carolina 12. Storm surge from the category two storm carved out two new inlets across Hatteras Island National Seashore, cutting off Buxton, Hatteras, Rodanthe, Waves and Salvo from the North Carolina mainland. Heated debate grew after the storms departure on whether or not to build new bridges over the new waterways, or to backfill them and restore NC 12 onto its original roadway. After several months of debate, the U.S. Army Core of Engineers agreed to fill in the inlets and reconstruct NC 12 as it was.

The landfall of Hurricane Irene on August 27, 2011 resulted in the closure of NC 12 between Pamlico Sound and the Atlantic Ocean. Washing the two lane roadway out, storm surge formed several new inlets between the two bodies of water. One inlet formed was 100 feet wide and 8 feet deep. 2,500 residents of Hatteras Island were cut off from the mainland due to the NC 12 damage.⁵

A final design for the Bonner Bridge replacement was selected, and the North Carolina Department of Transportation awarded a design-build contract for the new span in July 2011. Costing $246 million, the Bonner Bridge Replacement Project constructed a new span between 50 and 189 feet west of the original. Factoring in the new approach roadways, the project totaled 3.5 miles in length. The 3,500 foot long bridge includes seven navigational spans at an average width of 300 feet, compared to the single 130 foot wide navigational span on the predecessor bridge.

Following law suits filed in 2011 and August 2013, groundbreaking for the new Oregon Inlet Bridge finally took place on March 8, 2016. The new bridge with two 12-foot travel lanes with 8 foot-wide outside shoulders was expected to open in Fall 2018. It opened to motorists on February 25, 2019. The 1964-bridge was partially demolished, with segments used at offshore reef sites. A 1,000 feet section of the old span was retained and repurposed for pedestrians. Overall project work continued through September 2019.

The 1950 Rand McNally North American Road Atlas displays a proposed toll road extending north along what is now NC 12 between Southern Shores and Corolla, and along the beach areas from Carova north to Virginia Beach, Virginia. This alignment was dropped by the 1954 edition.

The proposed OBX Toll Road - 1950.

Several proposals emerged to build a new bridge across Currituck Sound to NC 12 and Corolla with U.S. 158 on the Currituck County mainland. Opponents contended that this road would only benefit tourists from Virginia, and further spur development along NC 12 south along Bodie Island.

Mid-Currituck Bridge

One of nine projects developed by the North Carolina Turnpike Authority was a new tolled span across Currituck Sound linking U.S. 158 with NC 12. If built the Mid-Currituck Bridge will travel approximately seven miles from a point north of Aydlett to an area at or south of Corolla. The Final Environmental Impact Statement (FEIS) was completed in January 2012. Although initial discussion outlined a possible completion date in 2013, the Record of Decision process continued until March 2019. Proposed tolls forecast in 2009 varied between $8 each way during the tourist season and $6 each way during off-season.⁴ The estimated toll rate was not determined as of 2017. Cost estimates for the new crossing are $491-million. Construction on the span may begin in Spring 2021 if funding is secured by Summer 2020.

North Carolina Highway 34 constitutes a north-south highway between U.S. 158 near Belcross and NC 168 at Sligo. Prior to 2006, NC 34 overlapped with U.S. 158 west 5.4 miles to Water Street in Downtown Elizabeth City. The state route circled around Downtown along Water Street south and Eringhaus Street west to U.S. 17 Business at Road Street. The state route then followed Road Street south to Herrington Road and Elizabeth City State University.

Southeast from Elizabeth City, NC 34 extended along Weeksville Road to U.S.C.G. Air Station Elizabeth City and areas along Newbegun Creek through to Salem Church Road. The state route turned east along Salem Church Road to Salem, and south to Soundneck Road for its final length to Glen Cove on the Pasquotank River.

1940 - U.S. 158 still designated as N.C. 34

Historically NC 34 represented the lone route connecting the North Carolina main land with the Outer Banks. The state route was the predecessor to U.S. 158 from Barco south to Bodie Island, and also along the hook west to Manteo. This changed in 1940, with NC 34 shortened to just ten miles between Sligo and Barco.

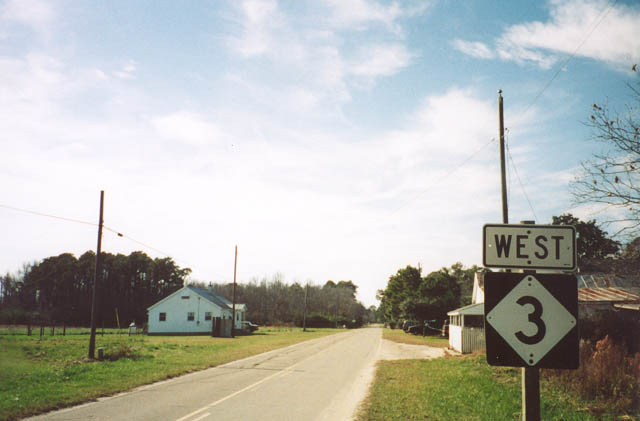

NC 136 is a rural spur linking U.S. 158 with the unincorporated community of Poplar Branch and a public boat ramp along Currituck Sound. NC 136 was previously designated NC 3 prior to 2002.³

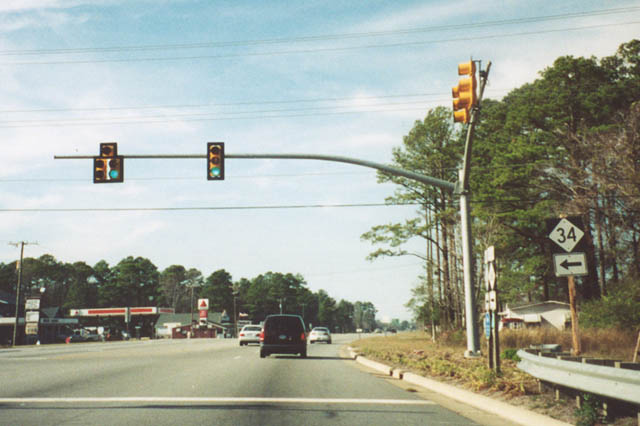

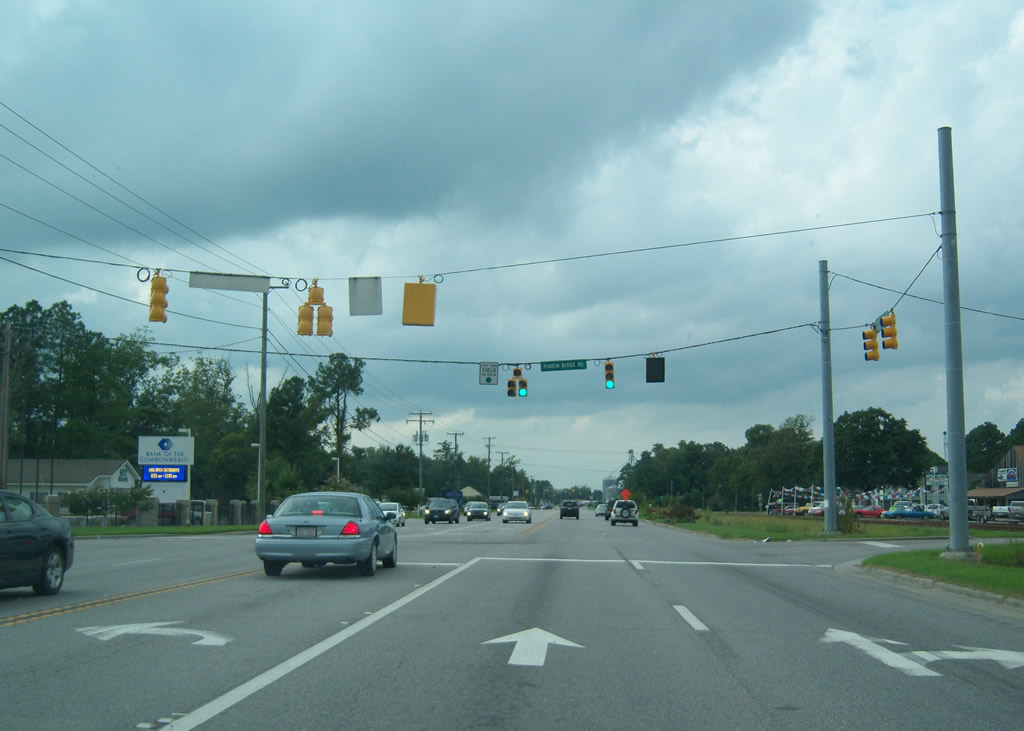

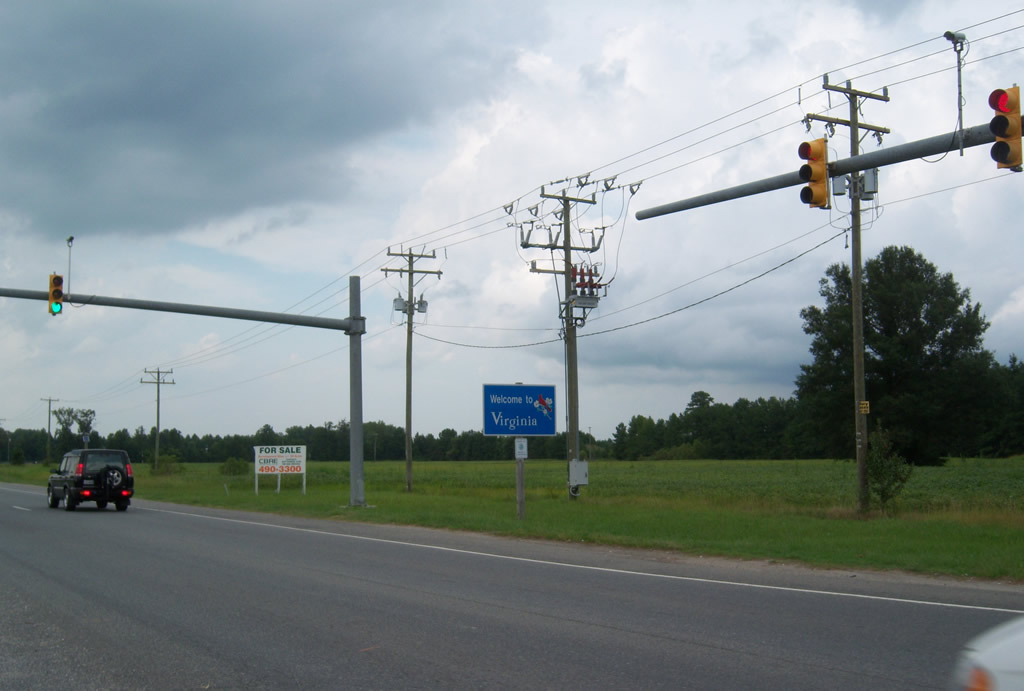

North Carolina Route 168 forms a multi-state route with Virginia Route 168. The five-lane arterial extends northwest from U.S. 158 at Barco to Currituck, Sligo and the city of Chesapeake, Virginia beyond Moyock. MSR 168 continues north along the tolled Chesapeake Expressway to I-64, U.S. 17 and I-464 in Hampton Roads.

A vastly rural highway, North Carolina Highway 343 parallels the Pasquotank River along a 25.5 mile course from Old Trap to U.S. 17 near South Mills. The highway provides part of an alternate route to the Outer Banks from U.S. 17 and Suffolk, Virginia to U.S. 158 at Camden. South of Camden, the state route winds across an agricultural peninsula to the settlements of Taylors beach and Shiloh, ending south of Alder Branch at at Texas Road (SR 1100).

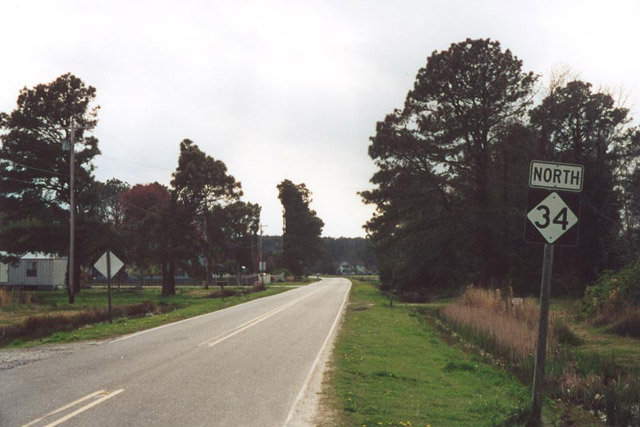

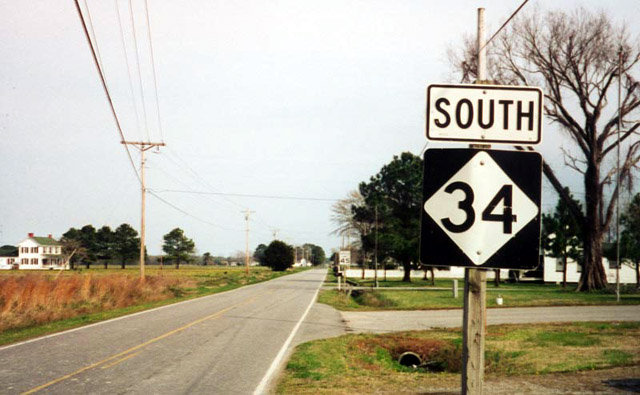

North Carolina Highway 344 replaced the southern leg of NC 34 from Elizabeth City to Weeksville and the Pasquotank River off Albermarle Sound. NC 344 was designated after 2004, which is when the Halstead Boulevard Extension opened west from U.S. 17 to U.S. 17 Bypass (Future I-87).

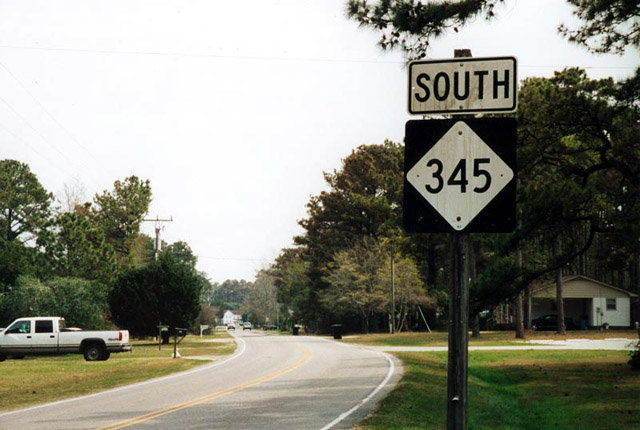

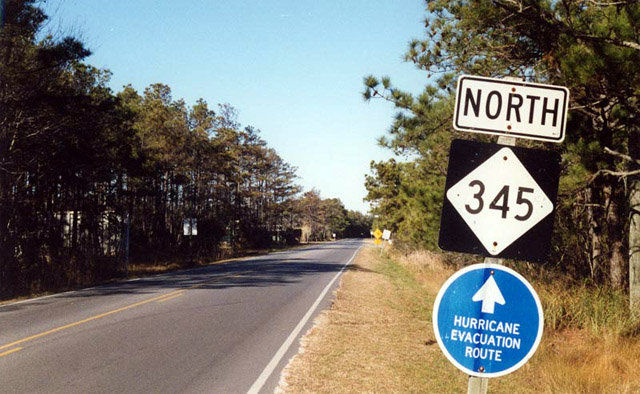

North Carolina Highway 345 joins U.S. 64 and the town of Manteo with Wanchese and the southern end of Roanoke Island.

Within the town of Manteo, NC 400 constitutes a 0.9-mile loop east from U.S. 64 Business to Roanoke Island Festival Park. The state route follows Fernando Street east and Queen Elizabeth Avenue north to Ananias Dare Street at the Doughs Creek bridge to Roanoke Island Festival Park. Ananias Dare Street returns NC 400 west to U.S. 64 Business.

NC 615 extends south onto Morse Point from Princess Anne Road (former Virginia Secondary 615) in Virginia Beach, Virginia. Turning east along Marsh Causeway, the 9.1-mile long state route traverses Great Marsh and Mackay Island National Wildlife Refuge onto Knotts Island. Knotts Island Road leads NC 615 south by the community of Knotts Island to South End and Woodleigh Roads. The state route arcs east on South End Road across a mix of forest and farm land through to Ferry Dock Road, which connects with the Currituck-Knotts Island Ferry landing to North Carolina 168 at Currituck.
